Figure 69: Simplex LC Cable Connector
Figure 70: Copper SFP Module LC Connector
MPO-12 Connectors
The multi-fiber push on (MPO) connector is a 12-fiber optical connector with a footprint similar to the SC
simplex connector. The MPO connector conforms to the TIA/EIA-604-5 intermateability standard. It is used
for establishing 40G and 100G optical parallel connections.

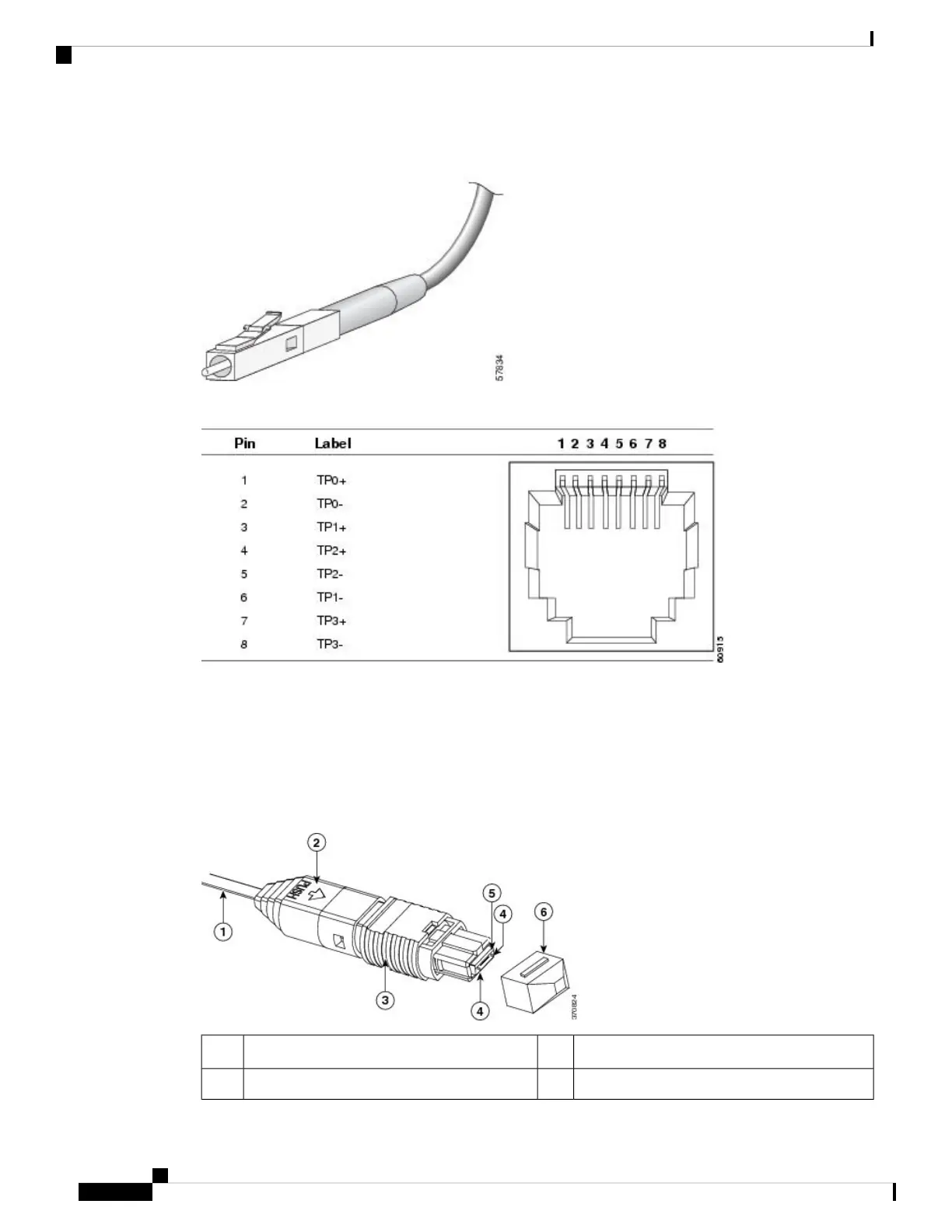

Figure 71: MPO-12 Fiber-Optic Connector
Guide pins412-fiber ribbon1
Ferrule5Boot2
