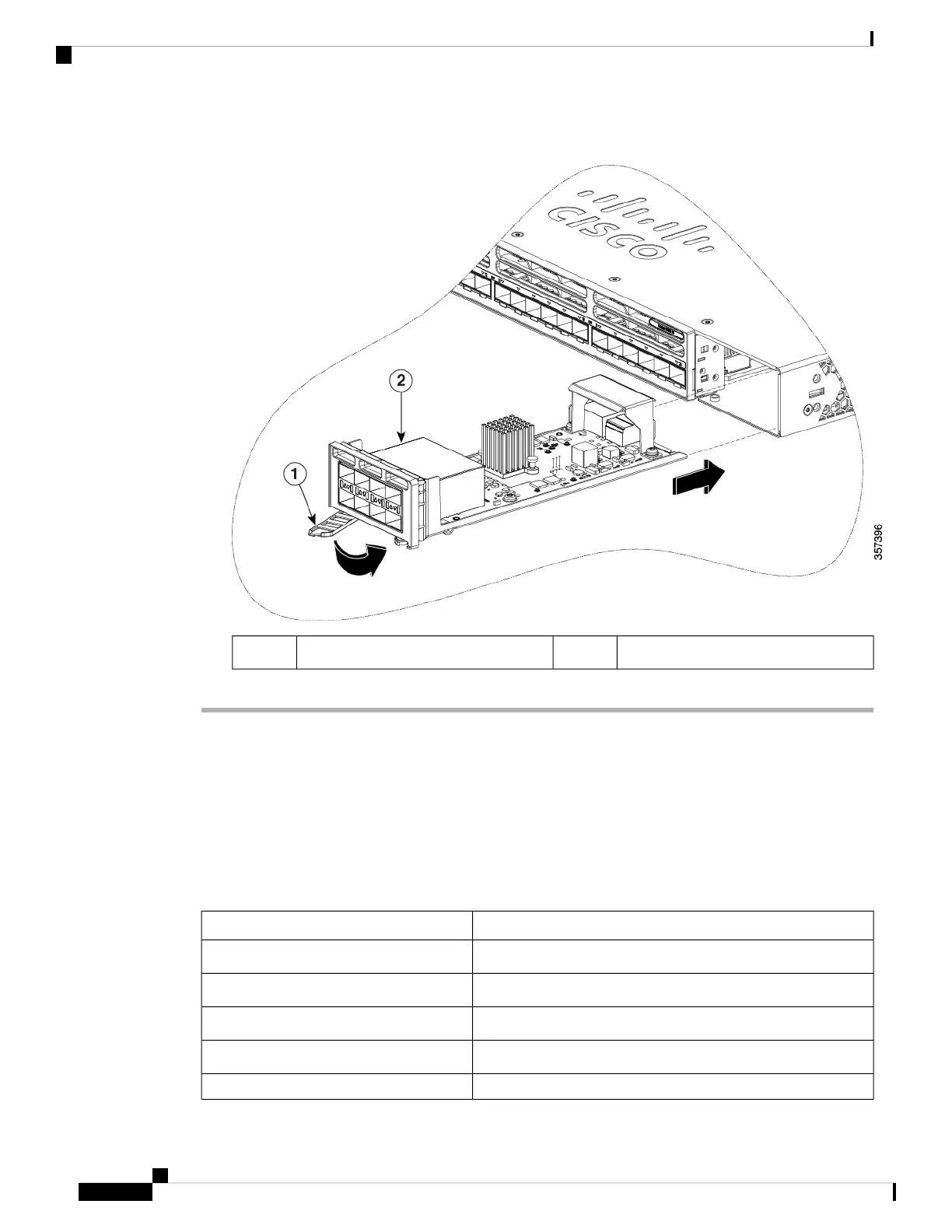

Figure 42: Installing the C9300X Network Module in the Switch
Network module (C9300X-NM-8Y)2Ejector1
Network Module Port Configurations
C9300-NM-2Q Module
If you use a 40G QSFP module, the ports default to 40G interfaces. In this case, the 10G interfaces are displayed
but not used.
Table 23: C9300-NM-2Q Module with 40G QSFP Module
ActionInterface
Configure this interfaceFortyGigabitEthernet1/1/1
Configure this interfaceFortyGigabitEthernet1/1/2
DisregardTenGigabitEthernet1/1/1
DisregardTenGigabitEthernet1/1/2
DisregardTenGigabitEthernet1/1/3
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
72
Installing a Network Module
Network Module Port Configurations

Cisco Catalyst 9300X Specifications

General

Category	Switch
Total number of MAC addresses	64, 000
Total number of IPv4 routes	32, 000
Total number of IPv6 routes	16, 000
Jumbo frames	9198 bytes
DRAM	8 GB
Flash	16 GB
Model	Cisco Catalyst 9300X
Number of VLANs	4, 094
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5 to 90% relative humidity
