STACK LED
The STACK LED shows the sequence of member switches in a stack. Up to nine switches can be members
of a stack. The first nine port LEDs show the member number of a switch in a stack.

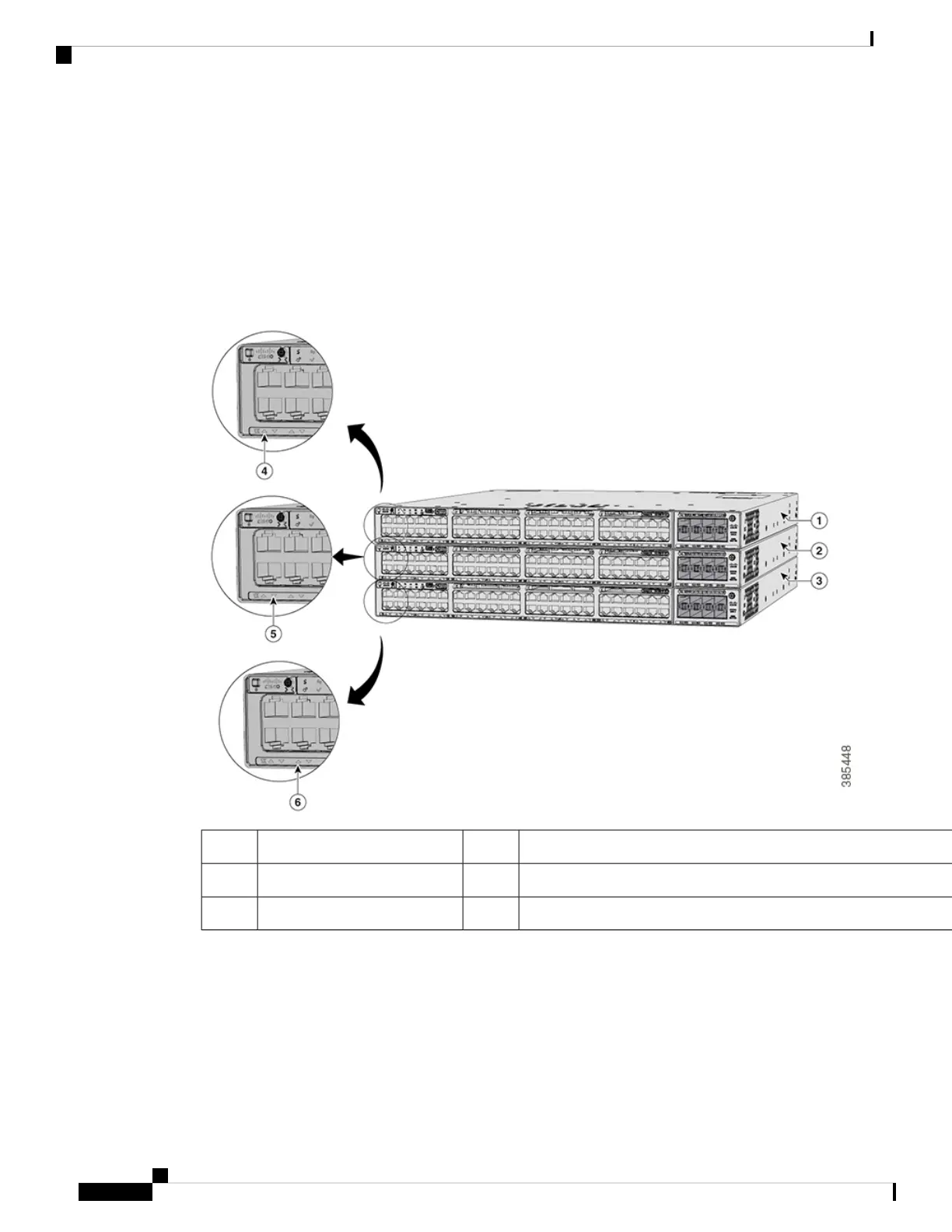

Figure 9: STACK LED
This figure shows the LEDs on for each switch. When you press the Mode button to select the STACK LED,
the corresponding port LEDs will blink green for each switch. For example, for switch 1, port 1 will blink
green and the rest of the LEDs will be off. On switch 2, port 2 will blink green and the rest of the LEDs will
be off. The same behavior will be seen with the remaining switches in the stack.
LED blinks green to show that this is switch 1 in the stack.4Stack member 11
LED blinks green to show that this is switch 2 in the stack.5Stack member 22
LED blinks green to show that this is switch 3 in the stack.6Stack member 33
PoE LED
The PoE LED indicates the status of the PoE mode: either PoE, PoE+, or Cisco UPOE.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
16
Product Overview
STACK LED

Cisco Catalyst 9300X Specifications

General

Category	Switch
Total number of MAC addresses	64, 000
Total number of IPv4 routes	32, 000
Total number of IPv6 routes	16, 000
Jumbo frames	9198 bytes
DRAM	8 GB
Flash	16 GB
Model	Cisco Catalyst 9300X
Number of VLANs	4, 094
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5 to 90% relative humidity
