Mounting the Switch in a Rack

Procedure

Step 1 Use the four supplied Phillips machine screws to attach the brackets to the rack.

Step 2 Use the black Phillips machine screw to attach the cable guide to the left or right bracket.

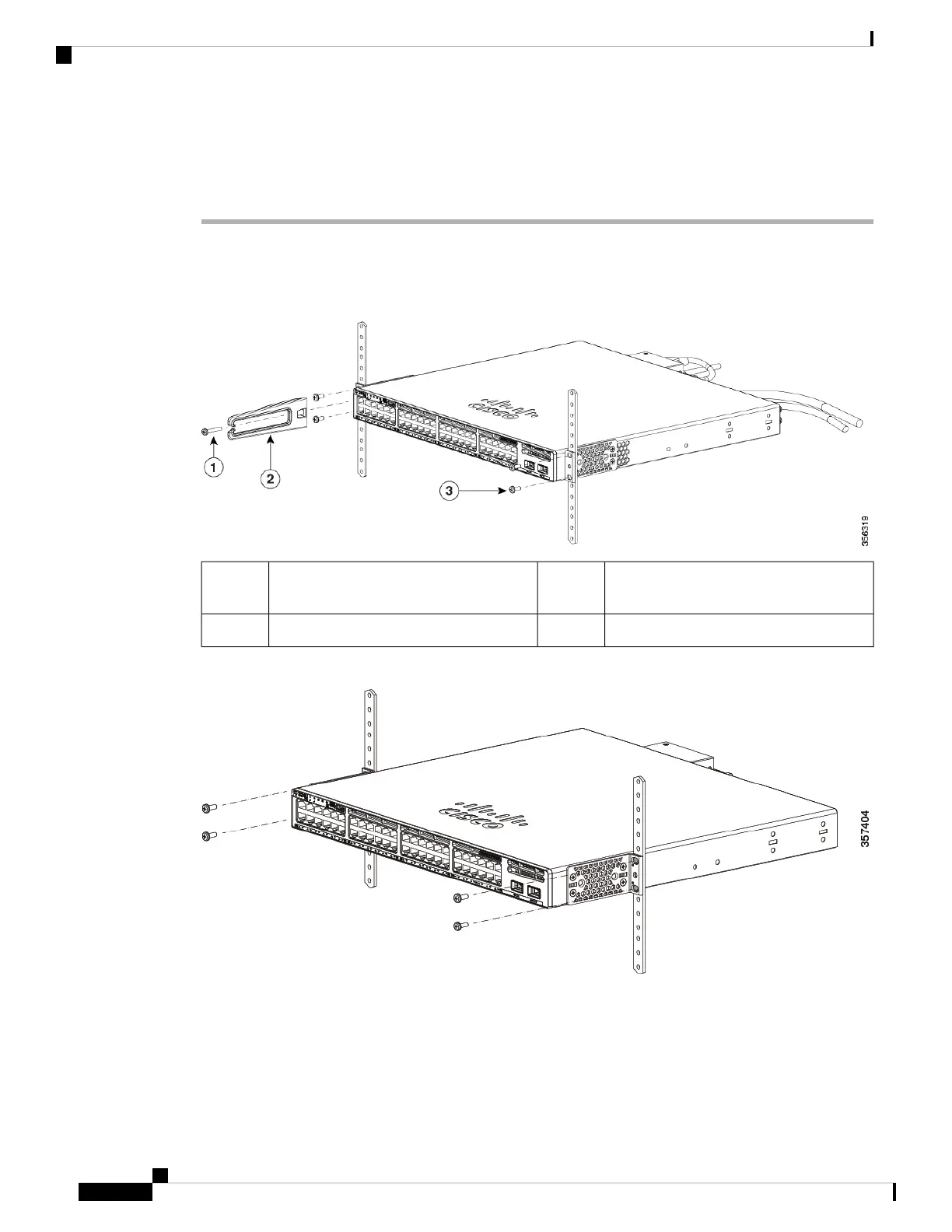

Figure 32: Front-Mounting Position

Number-12 or number-10 Phillips machine

screws

3Phillips machine screw, black1

--Cable guide2

Figure 33: Mid-Mounting Position

Cisco Catalyst 9300 Series Switches Hardware Installation Guide

Installing a Switch

Mounting the Switch in a Rack

Questions and Answers:

Need help?

Do you have a question about the Cisco Catalyst 9300X and is the answer not in the manual?

General

Category	Switch
Total number of MAC addresses	64, 000
Total number of IPv4 routes	32, 000
Total number of IPv6 routes	16, 000
Jumbo frames	9198 bytes
DRAM	8 GB
Flash	16 GB
Model	Cisco Catalyst 9300X
Number of VLANs	4, 094
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5 to 90% relative humidity
