Each port must match the wavelength specifications on the other end of the cable, and the cable must not
exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair,
Category 5 cable at lengths up to 328 feet (100 meters).
Cable Pinouts

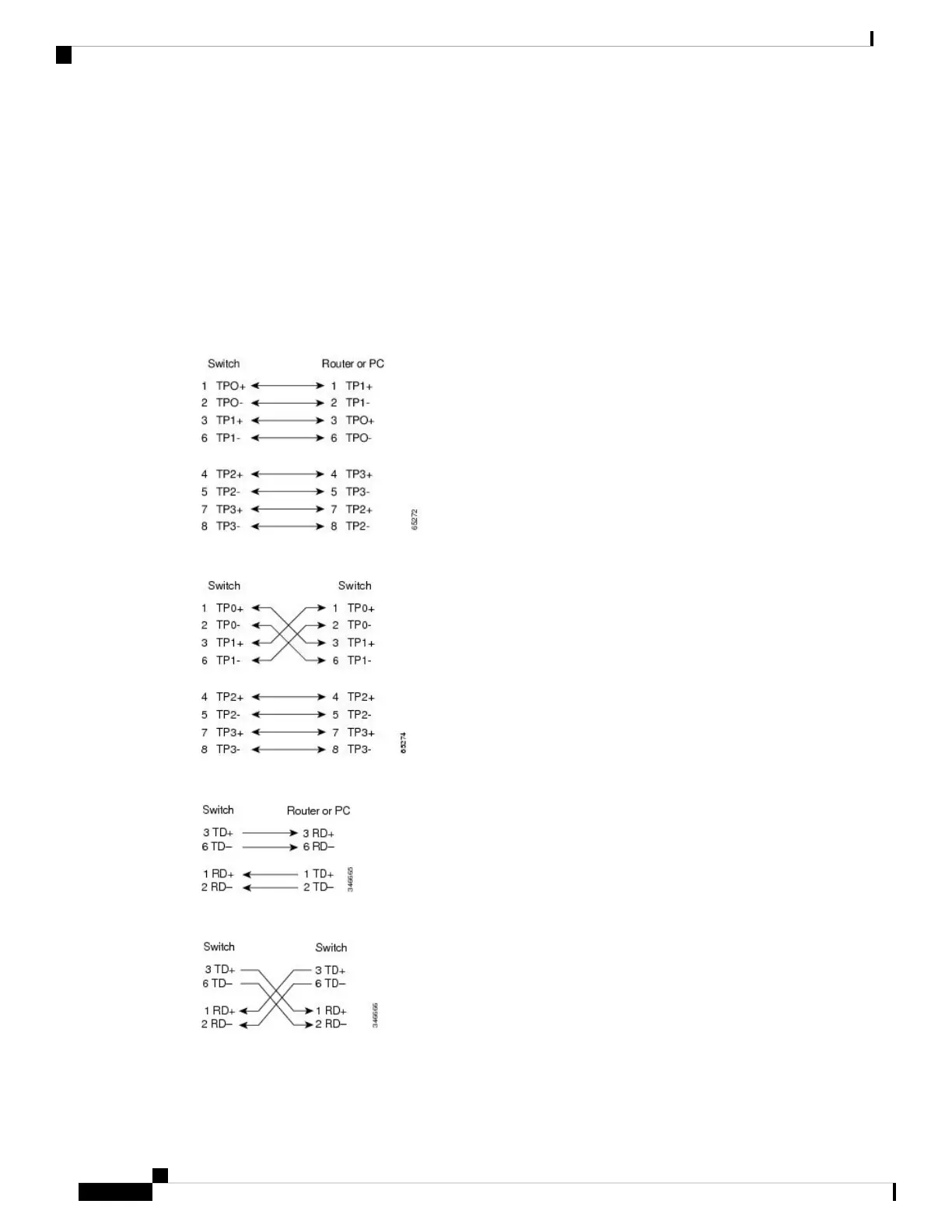

Figure 74: Four Twisted-Pair Straight-Through Cable Schematic
Figure 75: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 76: Two Twisted-Pair Straight-Through Cable Schematic
Figure 77: Two Twisted-Pair Crossover Cable Schematic
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
126
Connector and Cable Specifications
Cable Pinouts

Cisco Catalyst 9300X Specifications

General

Category	Switch
Total number of MAC addresses	64, 000
Total number of IPv4 routes	32, 000
Total number of IPv6 routes	16, 000
Jumbo frames	9198 bytes
DRAM	8 GB
Flash	16 GB
Model	Cisco Catalyst 9300X
Number of VLANs	4, 094
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5 to 90% relative humidity
