Front Panel Components of a Cisco Catalyst 9300LM Series Switch
• 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
• 10 M/100 M/1000 M Cisco UPOE
• Multigigabit Ethernet 100 M/1 GE/2.5 GE/5 GE/10 GE Cisco UPOE
• 1 GE/10 GE/25 GE fixed uplink ports
• USB mini-Type B (console) port
• USB 3.0 Type A connector
• USB Type C connector
• LEDs
• Mode button
• Beacon LED (UID button)

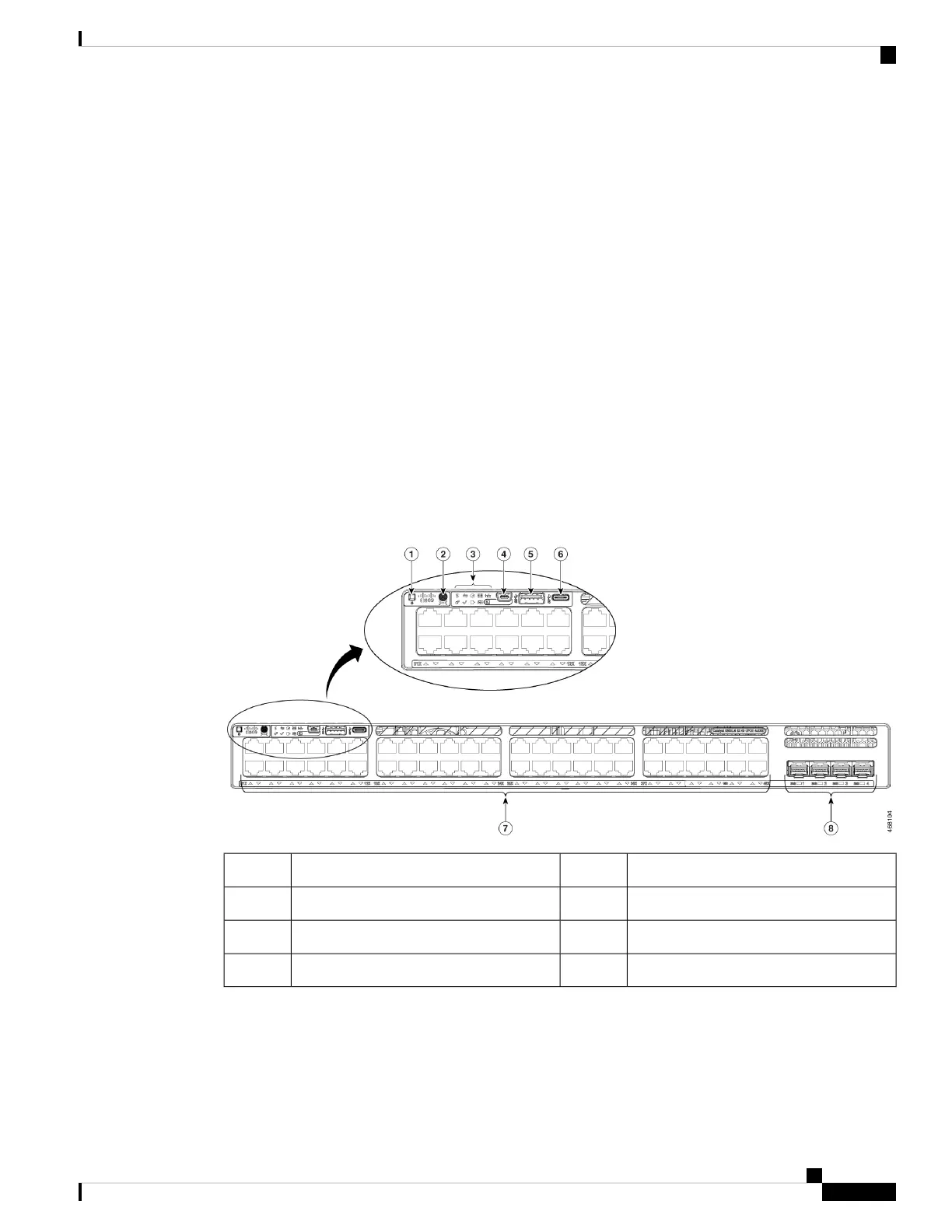

Figure 5: C9300LM-48UX-4Y Switch Front Panel
USB Type A storage port5Beacon LED (UID button)1
USB Type C port6Mode button2
10/100/1000 M UPOE ports7Status LEDs3
Fixed uplink ports8USB mini-Type B (console) port4
Front panel components of a Cisco Catalyst 9300X Series switch
• 12, 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
9
Product Overview
Front Panel Components

Cisco Catalyst 9300X Specifications

General

Category	Switch
Total number of MAC addresses	64, 000
Total number of IPv4 routes	32, 000
Total number of IPv6 routes	16, 000
Jumbo frames	9198 bytes
DRAM	8 GB
Flash	16 GB
Model	Cisco Catalyst 9300X
Number of VLANs	4, 094
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5 to 90% relative humidity
