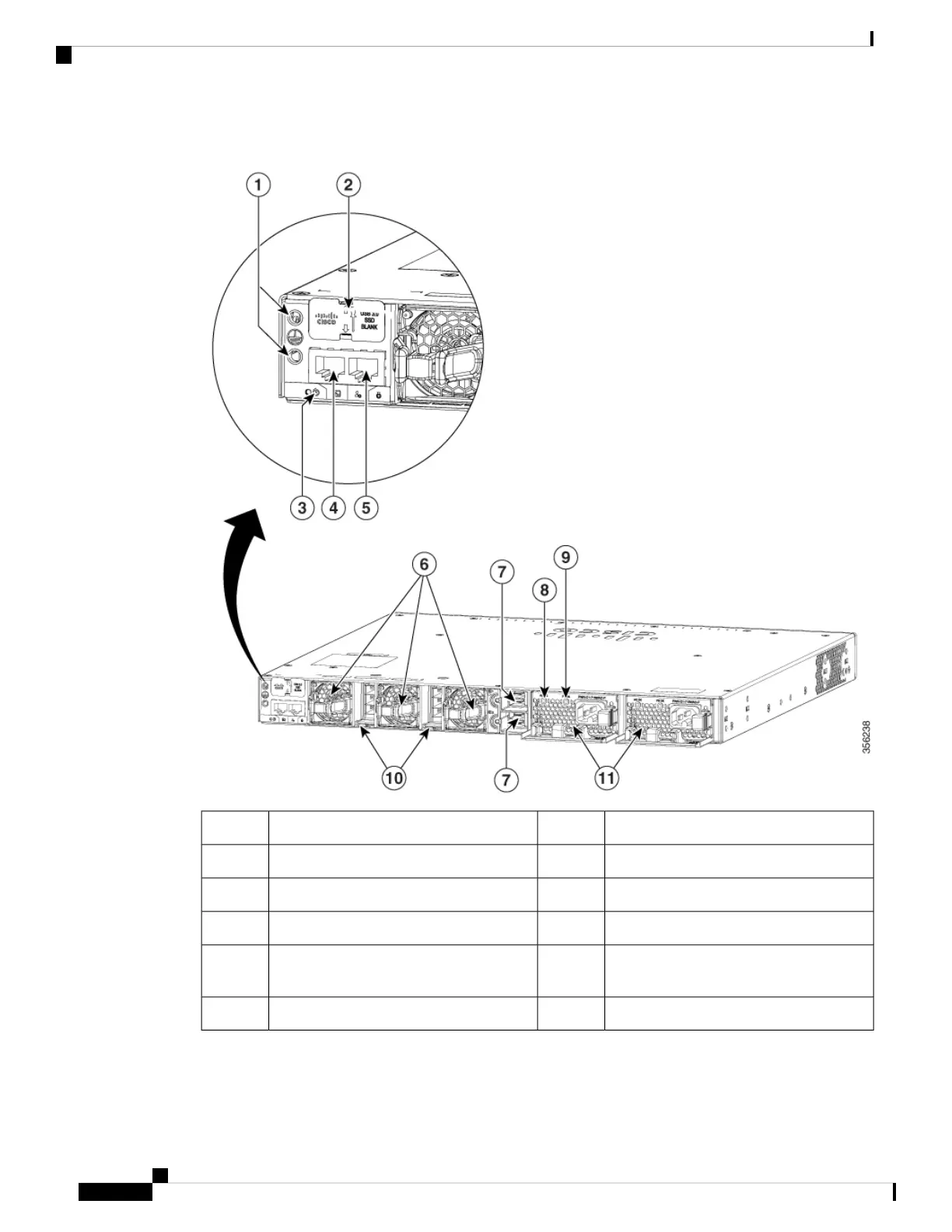

Figure 10: Rear Panel of a Cisco Catalyst 9300 Series Switch
StackPower connectors7Ground connectors1
AC OK (input) status LED8USB3.0–SSD port2
PS OK (output) status LED9BEACON LED3
StackWise-480 port connectors10CONSOLE (RJ-45 console port)4
Power supply modules11MGMT (RJ-45 10/100/1000 management
port)
5
--Fan modules6
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
22
Product Overview
Rear Panel

Cisco Catalyst 9300X Specifications

General

Category	Switch
Total number of MAC addresses	64, 000
Total number of IPv4 routes	32, 000
Total number of IPv6 routes	16, 000
Jumbo frames	9198 bytes
DRAM	8 GB
Flash	16 GB
Model	Cisco Catalyst 9300X
Number of VLANs	4, 094
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5 to 90% relative humidity
