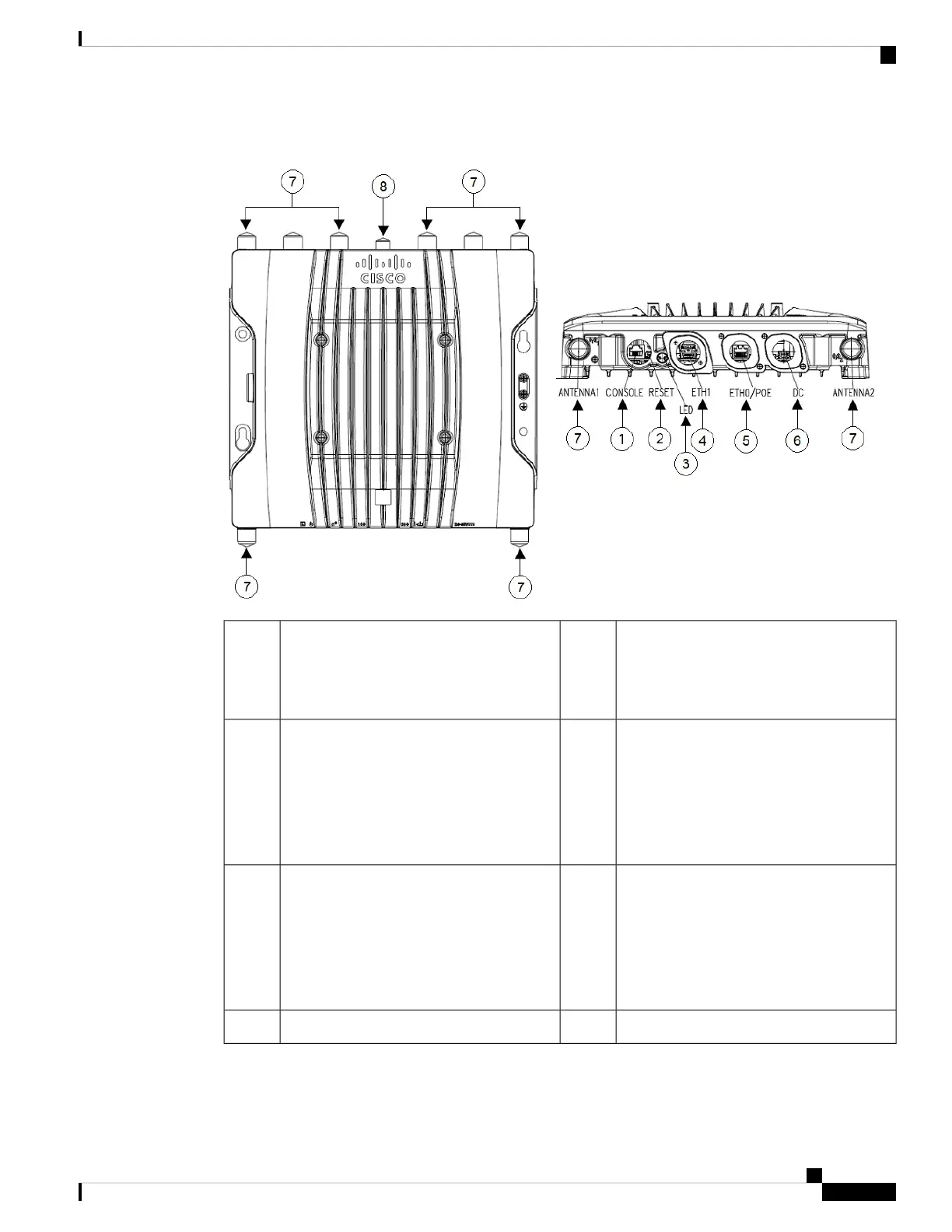

Figure 1: IW9167EH Connectors and Ports
Reset button
For information on how to use the Reset
button, see Using the Reset Button, on page
53.
2Console port (RJ-45)1
SFP (copper) 100M/1000M/10G
Multigigabit Ethernet /M12 X-code or SFP
(fiber) 1G/10G
M12 X-code port by using
M12-RJ45 adapter can support
up to 2.5G rate.
Note
4Status LED3
DC power input (micro-fit, or M12 4-pin
A-code by using M12 adapter)
6100M/1000M/2.5G/5G Multigigabit Ethernet
(RJ-45) / M12 X-code auto-sensing PoE+ in
(802.3at/bt), UPOE-in
M12 X-code port by using
M12-RJ45 adapter can support
up to 2.5G rate.
Note
5
GNSS port8Antenna ports7
