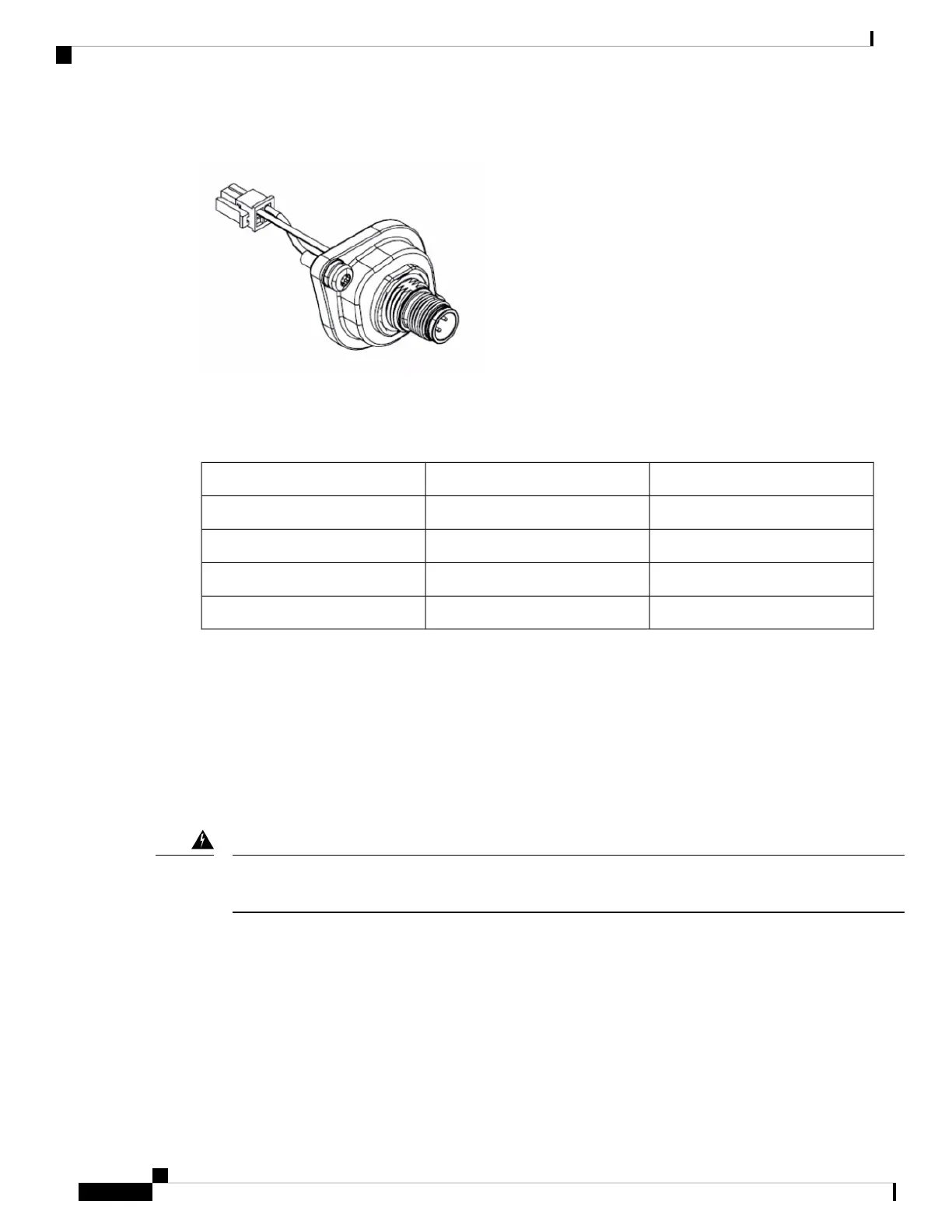

Figure 5: M12-PWR Adapter (Cisco PID: IW-ACC-M12PWR=)
The following table shows the M12-PWR adapter pinouts.
Table 2: M12-PWR Pinouts
M12 A-CodeWireMicro-FIT 4P
1RED (22 AWG)3
2N/C2
3BLACK (22 AWG)1
4N/C4
Power Sources
The Cisco Catalyst IW9167E Heavy Duty Access Point is supported on these power sources:
• DC power: 24 to 48 VDC
• Power over Ethernet (PoE): 802.3at (PoE+), 802.3bt (PoE++), Cisco Universal PoE (Cisco UPOE). For
more information, see Powering the Access Point, on page 36.
Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV)
requirements in IEC 60950 based safety standards. Statement 1033
Warning
Power Adapters
The Cisco Catalyst IW9167E Heavy Duty Access Point supports the following DC power adapters::
• PID: IW-PWRADPT-MFIT4P=: Operating: -40°C to +65°C, 60W.
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
6
About Cisco Catalyst IW9167E Heavy Duty Access Point
Power Sources
