Using the DIN Rail Mounting Bracket
You can use DIN rail mounting in network or electrical closets or cabinets, or in wiring rooms that have
low-levels of shock and vibration. Figure 7: DIN Rail Mounting Assembly, on page 22 shows the DIN rail
and DIN rail mounting assembly.

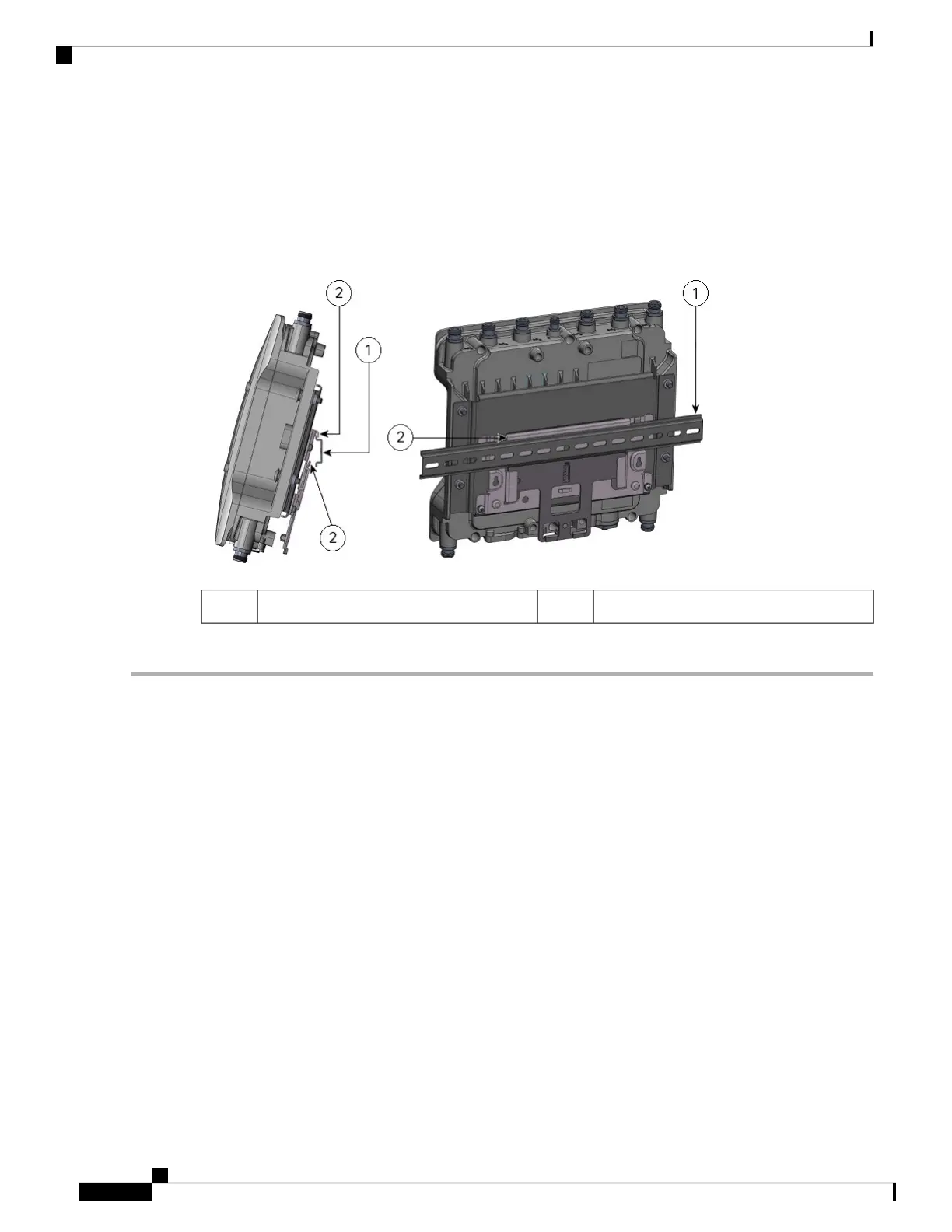

Figure 7: DIN Rail Mounting Assembly
DIN rail mounting bracket clip235 mm DIN rail (not supplied by Cisco)1
To DIN rail mount the access point:
Step 1 Assemble the access point and DIN rail mounting bracket using the M6 hardware supplied as shown in the following
figure.
