Step 2 Use the access point mounting holes as a template, and mark them at the mounting location.

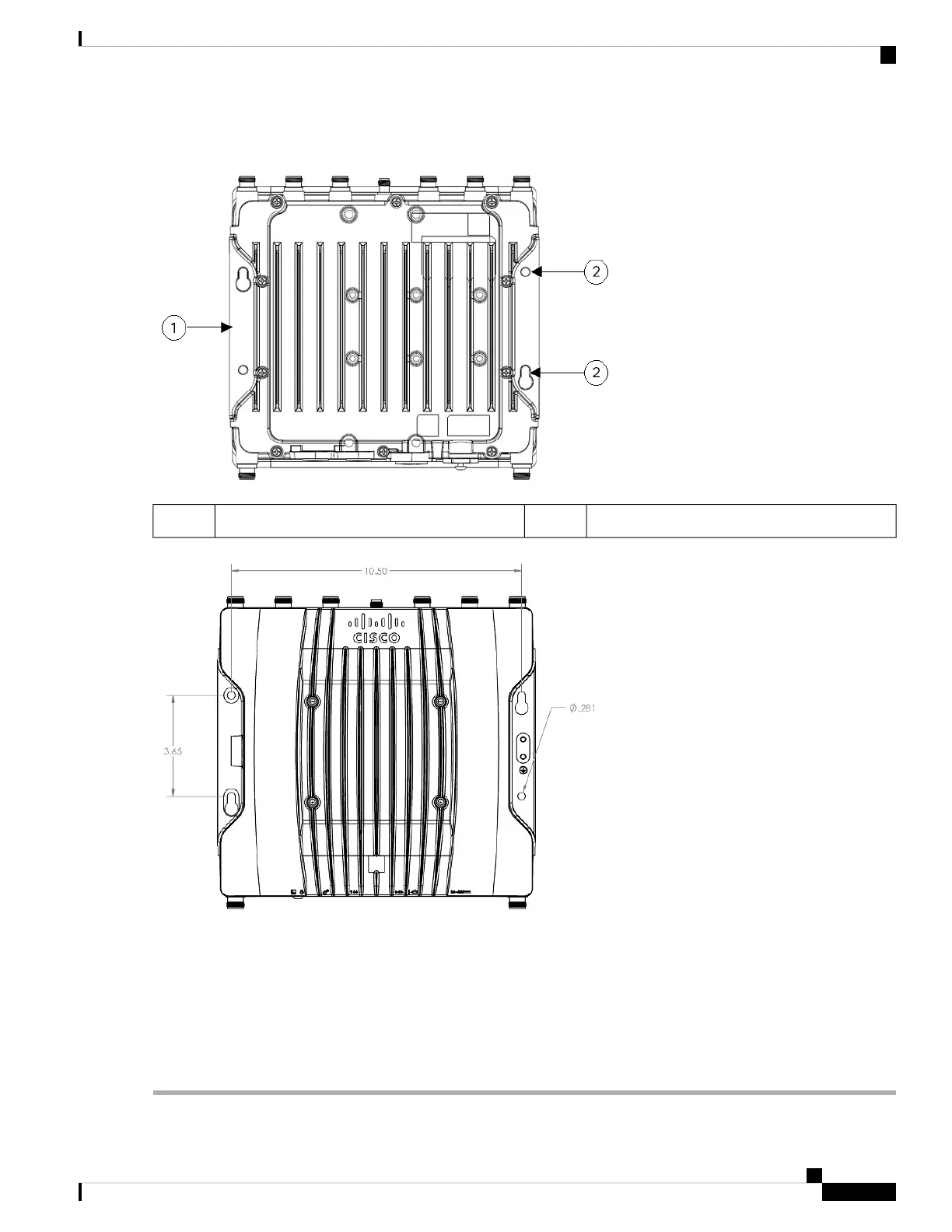

Main mounting flange2mounting holes1
Step 3 Drill holes on the mounting surface for plastic wall anchors to suit 1/4-20 or M6 bolts, and add the appropriate anchors.
Step 4 Align the access point mounting holes with the suspended ceiling mounting holes.
Step 5 Insert a mounting screw in each of the four mounting holes and tighten.
Step 6 You can use the keyholes for “hands-free” installation.
Ensure that the access point is firmly secured.
Note
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
21
Installation Overview
Using the Integrated Flange Mounts
