Cisco Catalyst IW9167E - Connecting to the RJ-45 Port Using M12 Adapter

Grommet4RJ-45 cable1
Ferrule5Gasket2
Clamp nut6PG13 body3
Step 2 Plug the RJ-45 cable into the RJ-45 connector in the chassis.
Step 3 Thread the PG13 body (with gasket) into the chassis.
Step 4 Insert the grommet into the ferrule, and press it into the PG13 body.
Step 5 Tighten the clamp nut onto the PG13 body until the grommet compresses onto the RJ-45 cable.

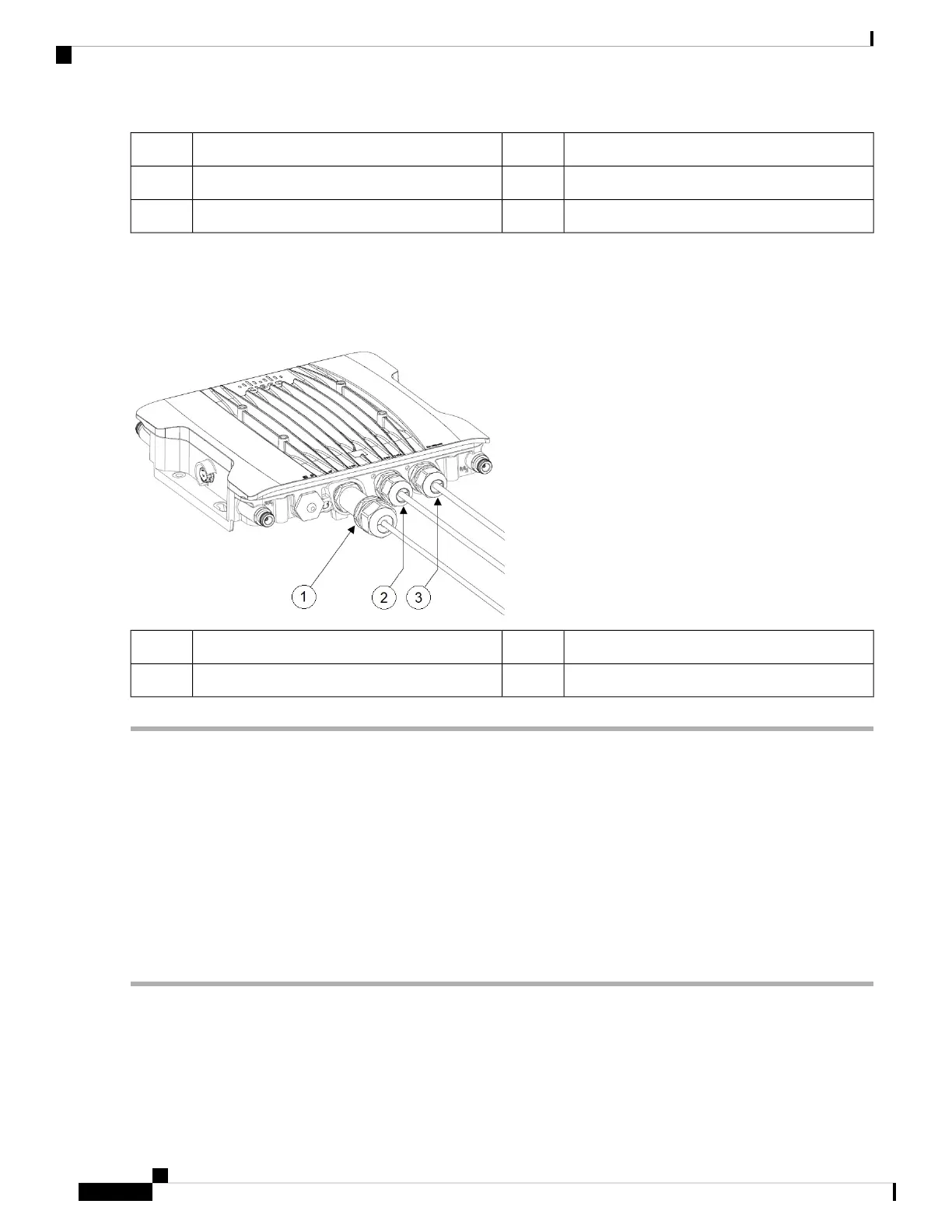

DC power port connected using cable gland3SFP port connected using cable gland1
RJ-45 port connected using cable gland2
Connecting to the RJ-45 Port Using M12 Adapter
Follow these steps to connect to the RJ-45 port using M12 adapter:
SUMMARY STEPS
1. Ensure the O-ring is on the M12 adapter.
2. Align the RJ-45 tab with the RJ-45 connector in the chassis, and plug the M12 adapter into thechassis.
3. Tighten the M12 adapter captive screws into the chassis.
DETAILED STEPS
Step 1 Ensure the O-ring is on the M12 adapter.
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
42
Installation Overview
Connecting to the RJ-45 Port Using M12 Adapter
