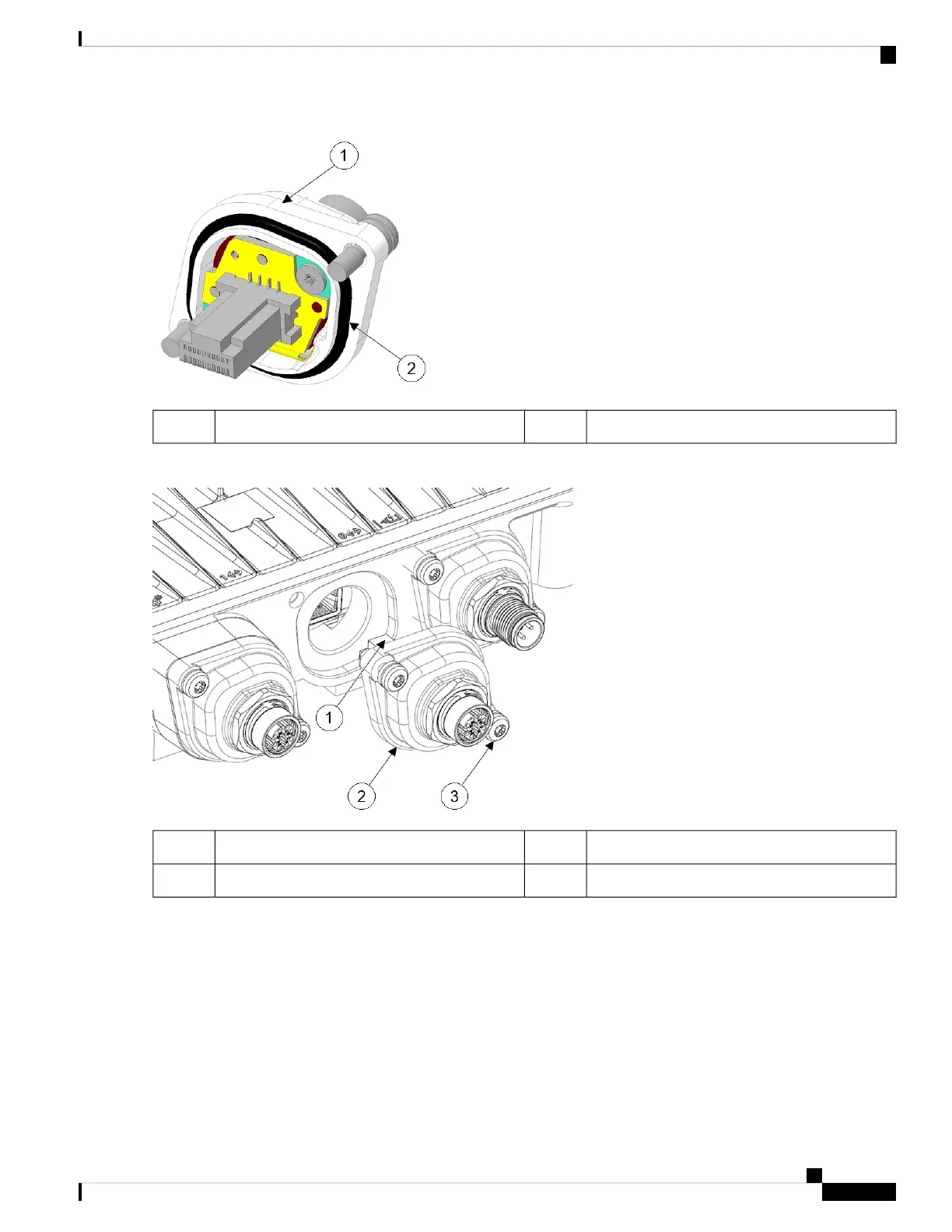

O-ring2M12 adapter1
Step 2 Align the RJ-45 tab with the RJ-45 connector in the chassis, and plug the M12 adapter into thechassis.
Captive screws3RJ-45 tab1
M12-RJ45 adapter2
Step 3 Tighten the M12 adapter captive screws into the chassis.
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
43
Installation Overview
Connecting to the RJ-45 Port Using M12 Adapter
