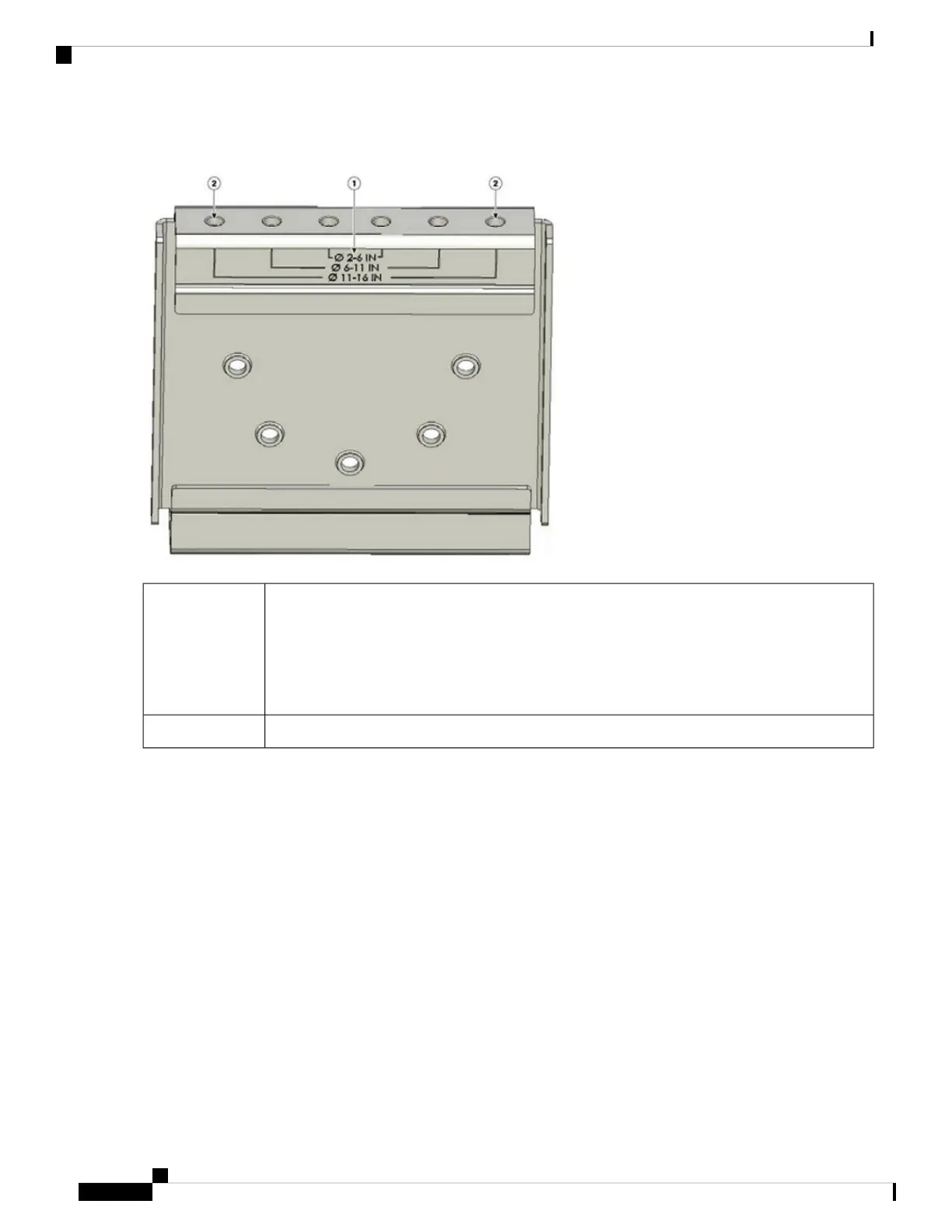

Figure 8: Pole Clamp Bracket Adjustment Hole Locations
Pole size indicators
• 2 to 6 in.
• 6 to 11 in.
• 11 to 16 in.
1
Bolt holes for pole diameters (11 to 16 inches indicated)2
Step 2 Position the strap brackets on the pole clamp bracket for the pole diameter you are using and secure each strap bracket
with two M8 x16 bolts (with lock washers), as the following image shows. Tighten the bolts to 13 to 15 ft lbs (17.6 to
20.3 N-m).
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
26
Installation Overview
Using the Mounting Bracket AIR-ACCPMK3700-2=
