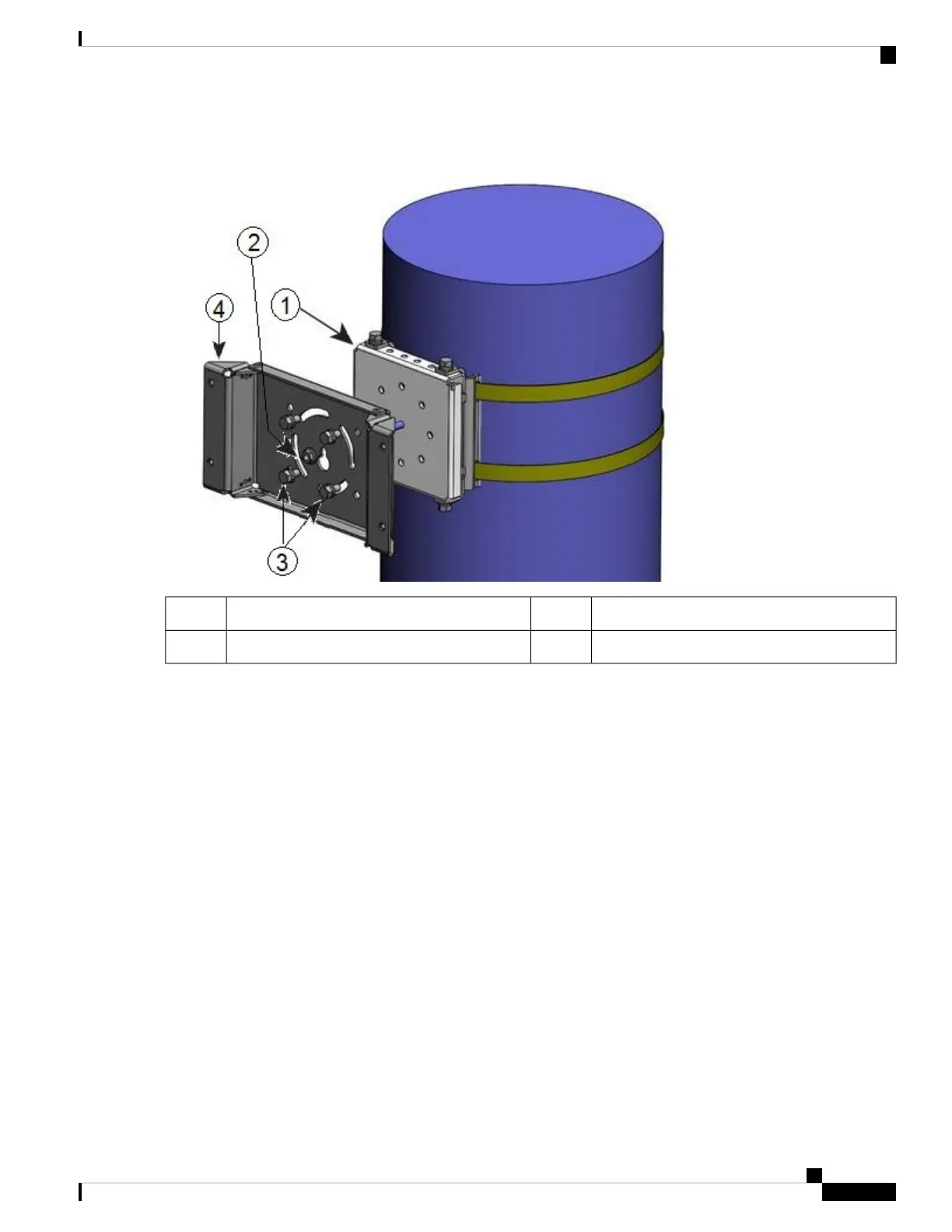

Figure 11: Mounting Bracket and Pole Clamp Bracket Assembly
Bolt holes3Pole clamp bracket assembly1
Mounting bracket4Access point support bolt2
Step 12 Hand-tighten the bolts and the nut (do not overtighten).
Step 13 Adjust the top edge of the mounting bracket until it is horizontal and tighten the bolts and the flange nut to 13 to 15
ft-lbs (17.6 to 20.3 N-m).
Step 14 Use the included bolts, washers, and nuts to attach the access point to the mounting plate.
Step 15 Torque the nuts to 6 to 7 ft-lbs.
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
29
Installation Overview
Using the Mounting Bracket AIR-ACCPMK3700-2=
