Cisco Catalyst IW9167E - Page 48

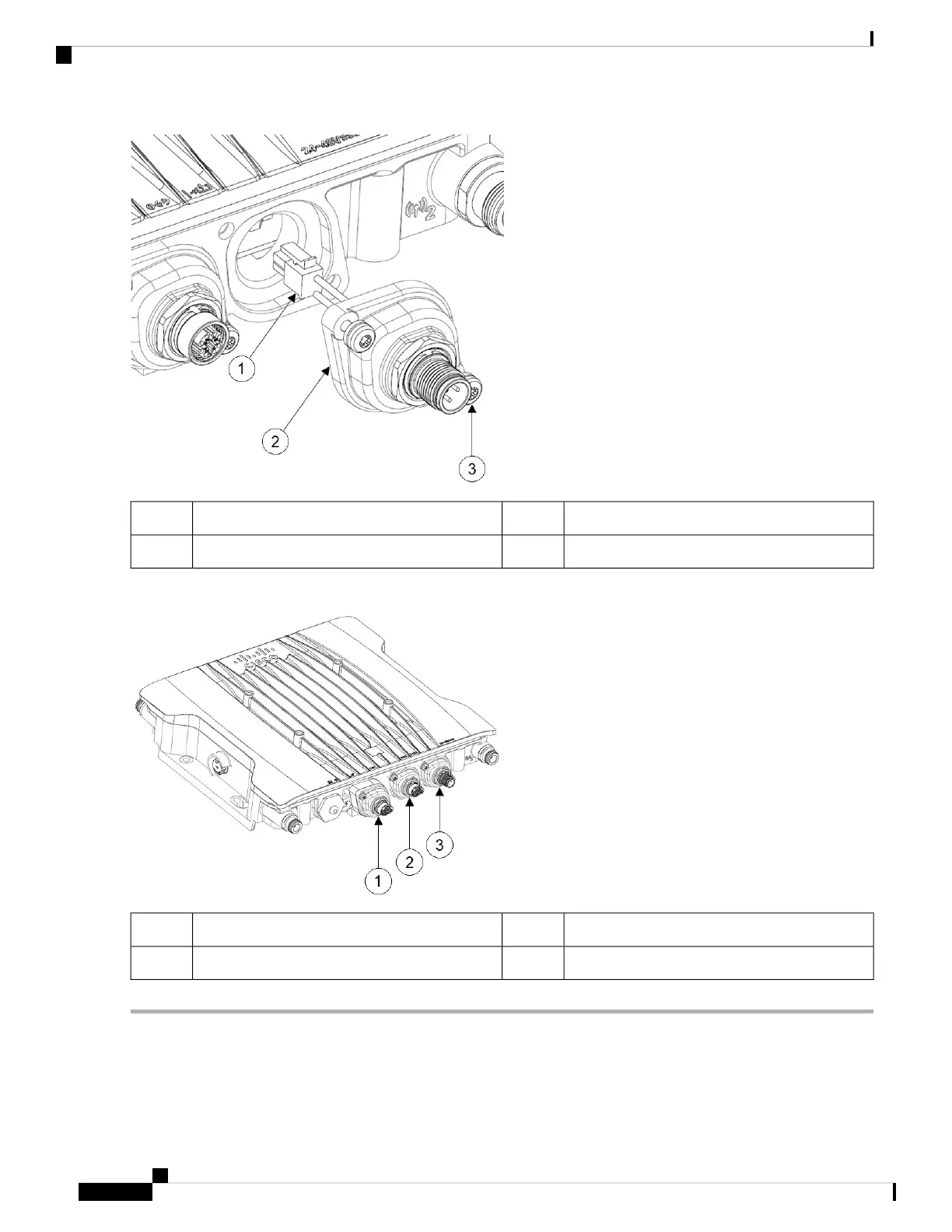

Captive screws3DC connector1
M12-PWR adapter2
Step 3 Tighten the M12-PWR adapter captive screws into the chassis.
DC power port connected using M12 adapter3SFP port connected using M12 adapter1
RJ-45 port connected using M12 adapter2
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
40
Installation Overview
Connecting DC Power Port Using M12 Adapter
