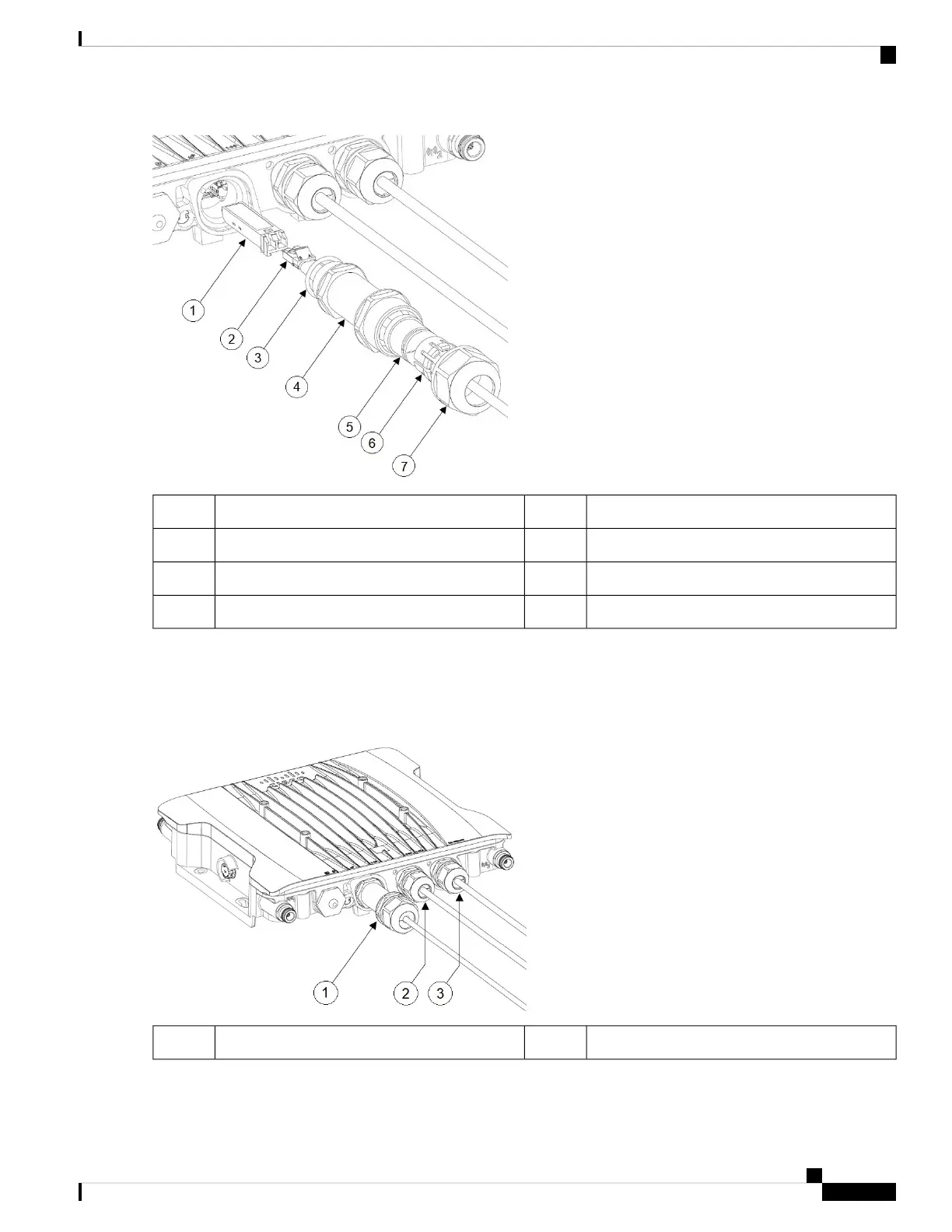

Grommet5Fiber SFP1
Ferrule6Fiber cable2
Clamp nut7O-Ring3
Adapter body4
Step 3 Plug the fiber cable into the SFP.
Step 4 Thread the adapter body (with O-Ring) into the chassis.
Step 5 Insert the grommet into the ferrule, and press it into the adapter body.
Step 6 Tighten the clamp nut onto the adapter body until the grommet compresses onto the fiber cable.
DC power port connected using cable gland3SFP port connected using cable gland1
Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide
45
Installation Overview
Connecting to SFP Port Using Cable Gland
