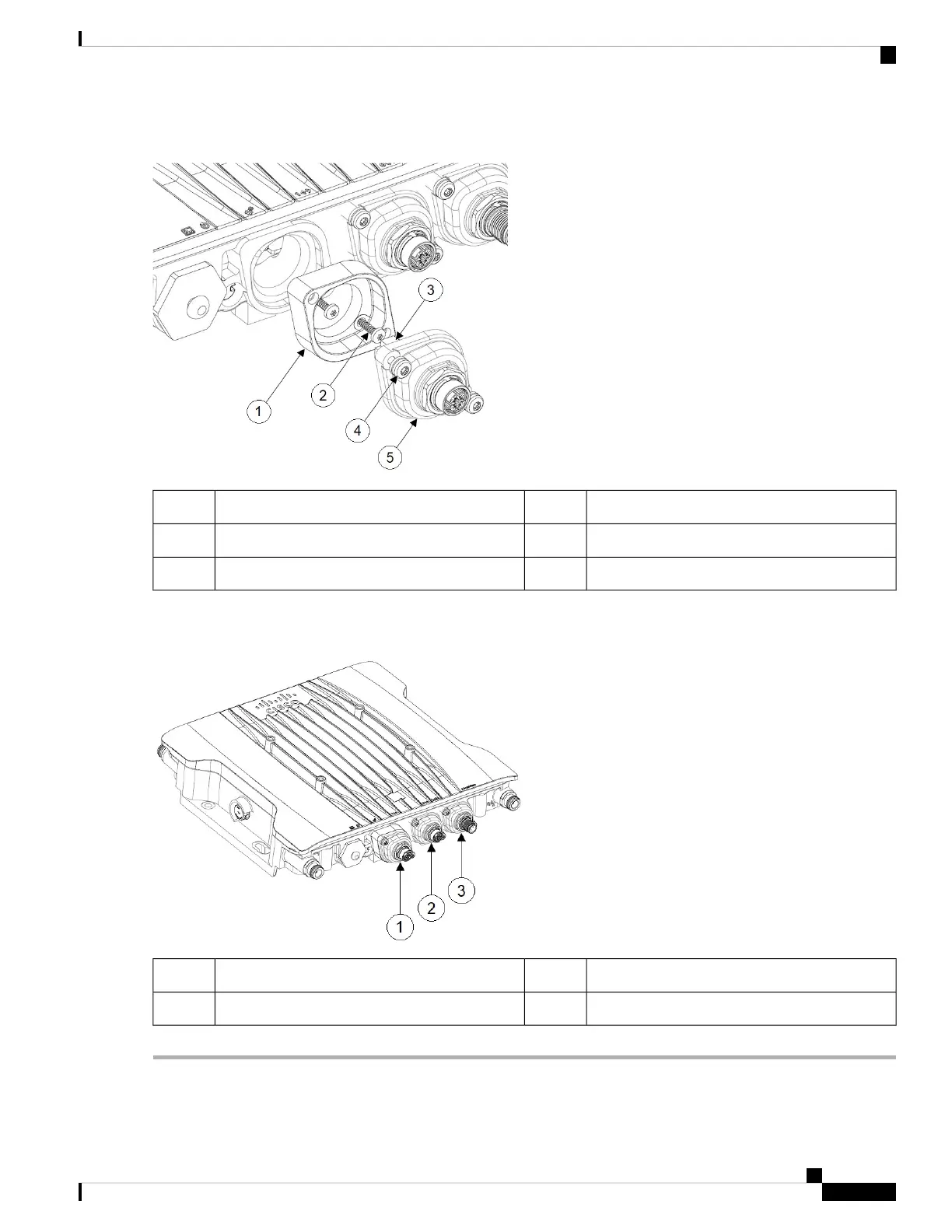

Step 3 Attach the spacer to the chassis with the screws provided (2 in the following figure)
Captive screws4Spacer1
M12-RJ45 adapter5Spacer screws2
RJ-45 tab3
Step 4 Align the RJ-45 tab with the RJ-45 connector in the chassis and plug the M12 adapter into the chassis
Step 5 Tighten the M12 adapter captive screws into the chassis (4 in the above figure).
DC power port connected using M12 adapter3SFP port connected using M12 adapter1
RJ-45 port connected using M12 adapter2
