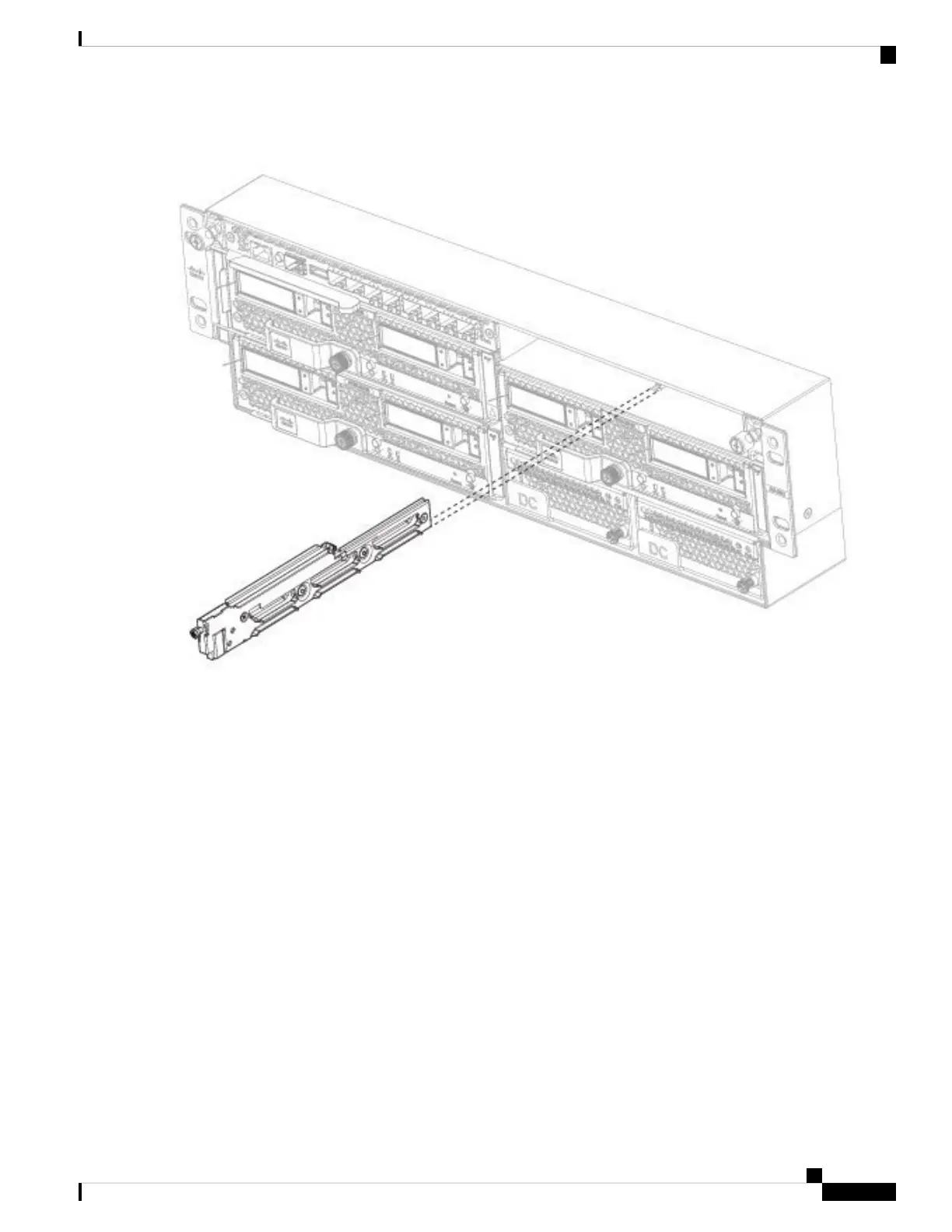

Figure 45: Remove the Network Module Divider
b) If you are removing a 100-Gb network module, loosen the captive screw on the left of the module, release the handle,
and gently pull it out.
If the slot is to remain empty, install a blank faceplate to ensure proper airflow and to keep dust out of the chassis;
otherwise, install another network module. The blank faceplates are for a single slot, so install the divider if you are
covering two single network slots.
Step 4 Hold the 100-Gb network module in front of the double network module slot on the right side of the chassis with the
handle rotated fully out. Slowly push the module into the network module slot until the handle catches on the mating
feature in the chassis. The handle should engage correctly.
Cisco Firepower 9300 Hardware Installation Guide
69
Installation, Maintenance, and Upgrade
Install, Remove, and Replace the Double-Wide Network Module
