Cisco ONS 15454 SDH - Provision Card PM Thresholds Using TL1

1-100
Cisco ONS 15454 SDH Troubleshooting Guide, R5.0
July 2005
Chapter 1 General Troubleshooting
1.6.5 Performance Monitoring Counters and Threshold Crossing Alerts

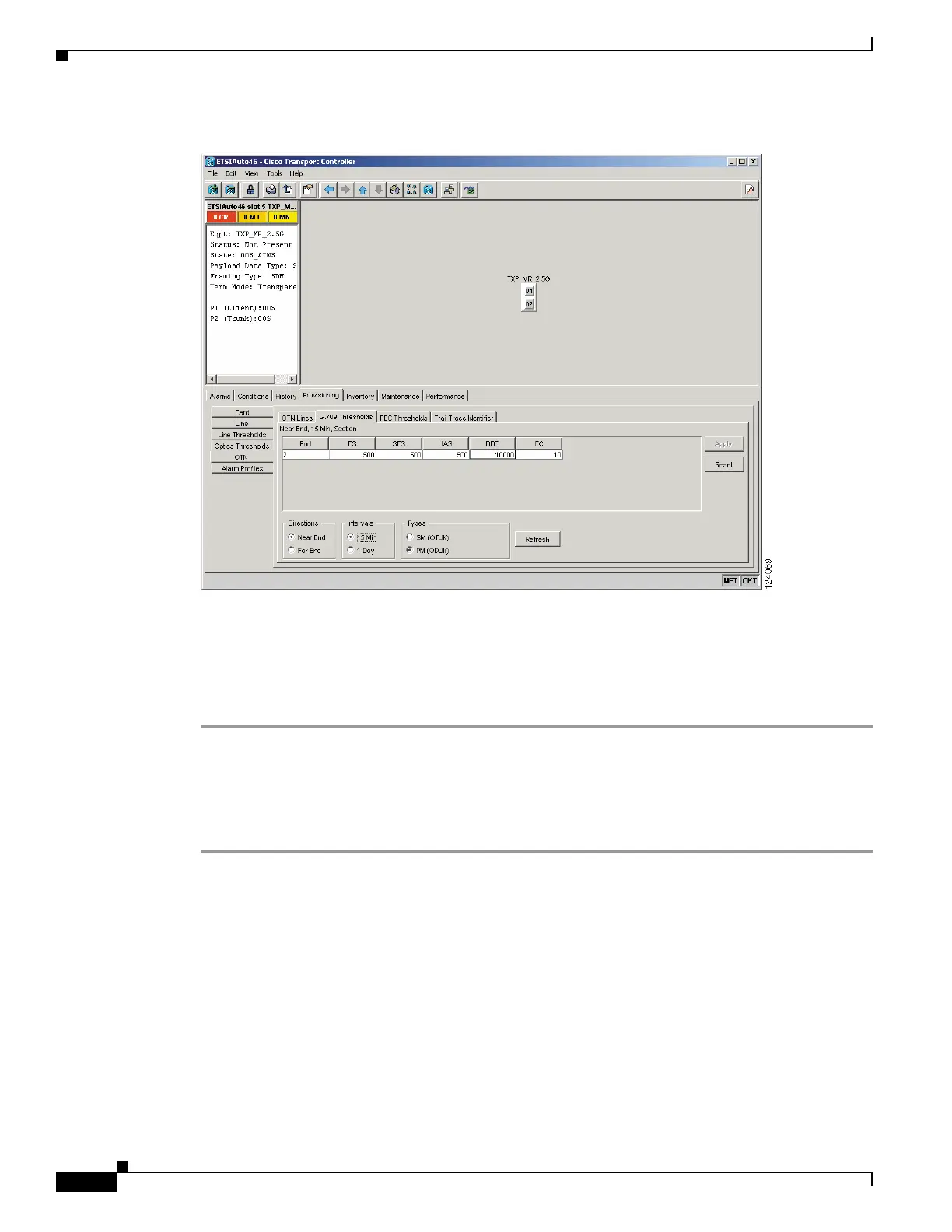

Figure 1-43 Provision Card BBE/SES Thresholds
Step 3 In the Directions area, click Near End.
Step 4 In the Intervals area, click 15 Min.
Step 5 In the Types area, click PM (ODUk).
Step 6 In the SES and BBE fields, enter threshold numbers, for example 500 and 10000.
Complete the following procedure if you wish to provision PM thresholds in TL1 rather than in CTC.
Provision Card PM Thresholds Using TL1
Step 1 Open a TL1 command line.
Step 2 On the TL1 command line, use the following syntax:
set-th-{och|clnt}::aid:ctag::montype,thlev,,,[tmper];
Where:
• The modifier is och, as applicable to the trunk port.
• Montype can be one of the following items:
– BBE-PM
– SES-PM
– LBCL-MAX
