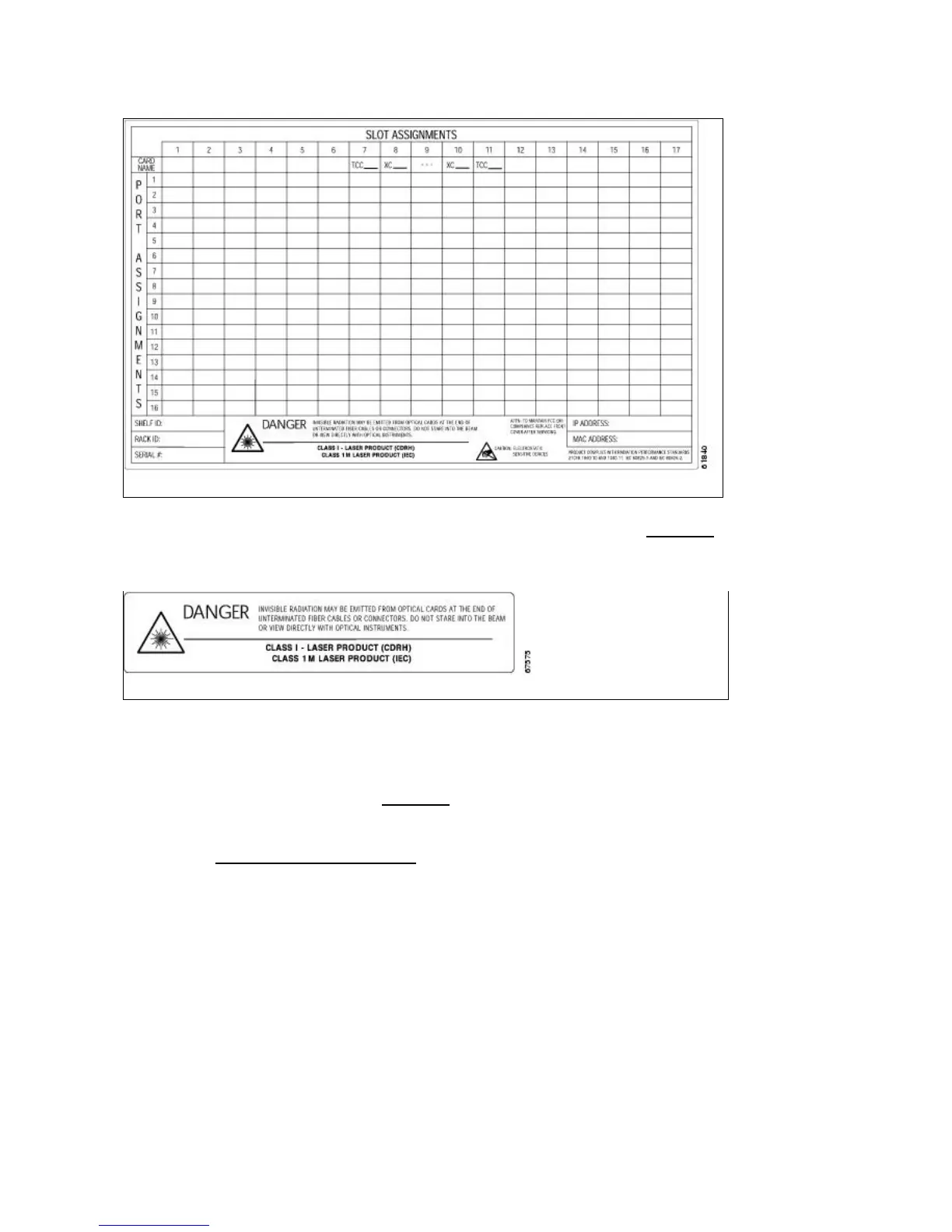

Figure 1-7: Front-Door Erasable Label
Note: The front door label also includes the Class I and Class 1M laser warning (Figure 1-8).
Figure 1-8: Laser Warning on the Front-Door Label
Backplane Covers
If a backplane does not have an EIA panel installed, it should have two sheet metal backplane covers (one on
each side of the backplane) as shown in Figure 1-9. Each cover is held in place with nine 6-32 x 3/8 inch
Phillips screws.
Note: See the Electrical Interface Assemblies for information on EIAs.
Figure 1-9: Backplane Covers
