Cisco ONS 15454 Series Reference Manual

Tip Port 3 White/green Ring Port 3 Green/white
Tip Port 4 White/brown Ring Port 4 Brown/white
Tip Port 5 White/slate Ring Port 5 Slate/white
Tip Port 6 Red/blue Ring Port 6 Blue/red
Tip Port 7 Red/orange Ring Port 7 Orange/red
Tip Port 8 Red/green Ring Port 8 Green/red
Tip Port 9 Red/brown Ring Port 9 Brown/red
Tip Port 10 Red/slate Ring Port 10 Slate/red
Tip Port 11 Black/blue Ring Port 11 Blue/black
Tip Port 12 Black/orange Ring Port 12 Orange/black
Tip Port 13 Black/green Ring Port 13 Green/black
Tip Port 14 Black/brown Ring Port 14 Brown/black
Ethernet Cables
Ethernet cables use RJ-45 connectors, and are straight-through or crossover, depending on what is connected
to them.
Table 1-20 shows 100Base-TX connector pin assignments, used with E100 Ethernet cards in the ONS 15454.
Table 1-20: E100-TX Connector Pinout
Pin Cable Port
1 RD+
2 RD-
3 TD+
4 NC
5 NC
6 TD-
7 NC
8 NC

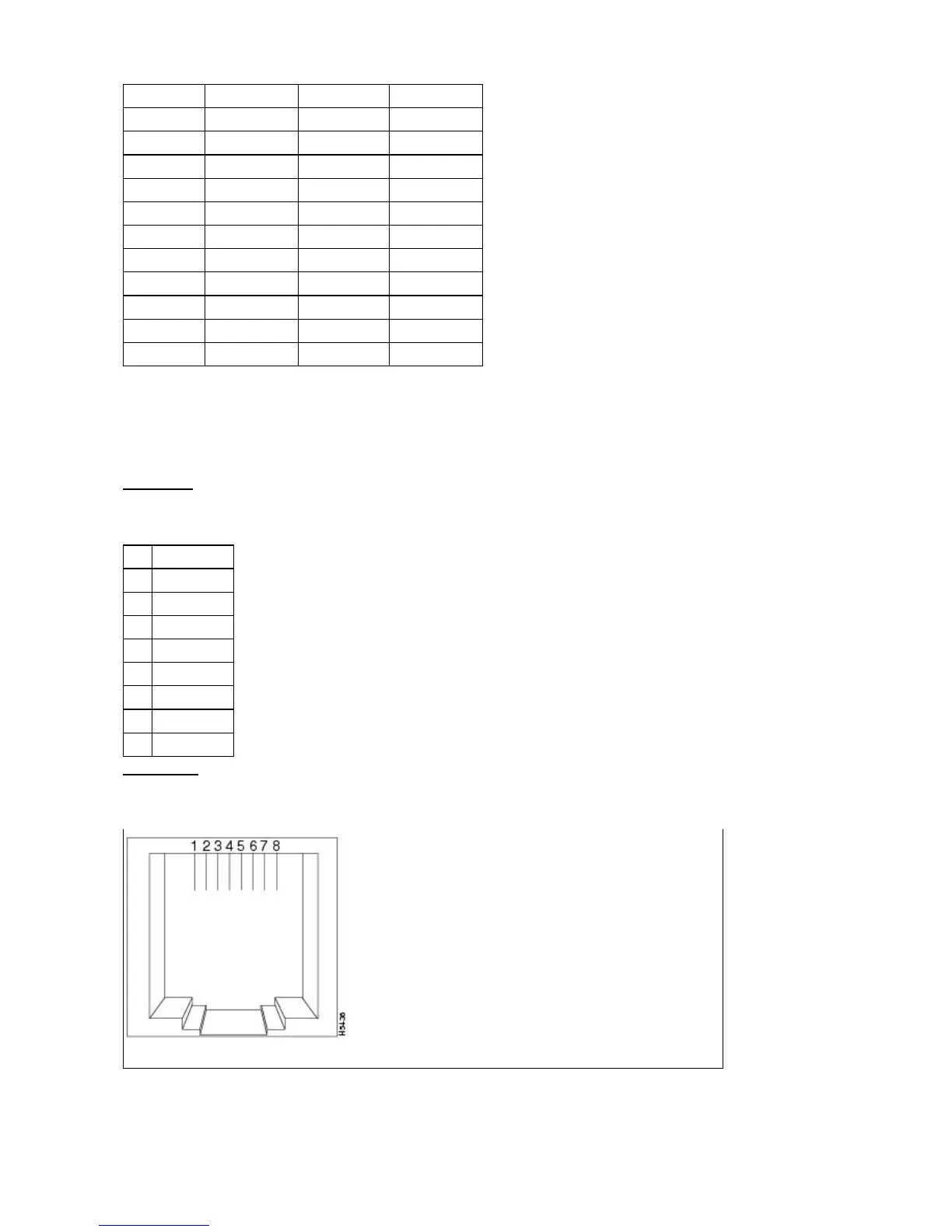

Figure 1-25 shows the pin locations on 100BaseT connector.
Figure 1-25: 100BaseT Connector Pins
ONS_15454_Reference_Manual_R8.5.x_--_Shelf_and_Backplane_Hardware
Table 1-19: UBIC-H EIA DS-1 Wiring 39
