BNC Insertion and Removal Tool
Due to the large number of BNC connectors on the high-density BNC EIA, you might require a special tool
for inserting and removing BNC EIAs (Figure 1-14). This tool also helps with ONS 15454 patch panel
connections.

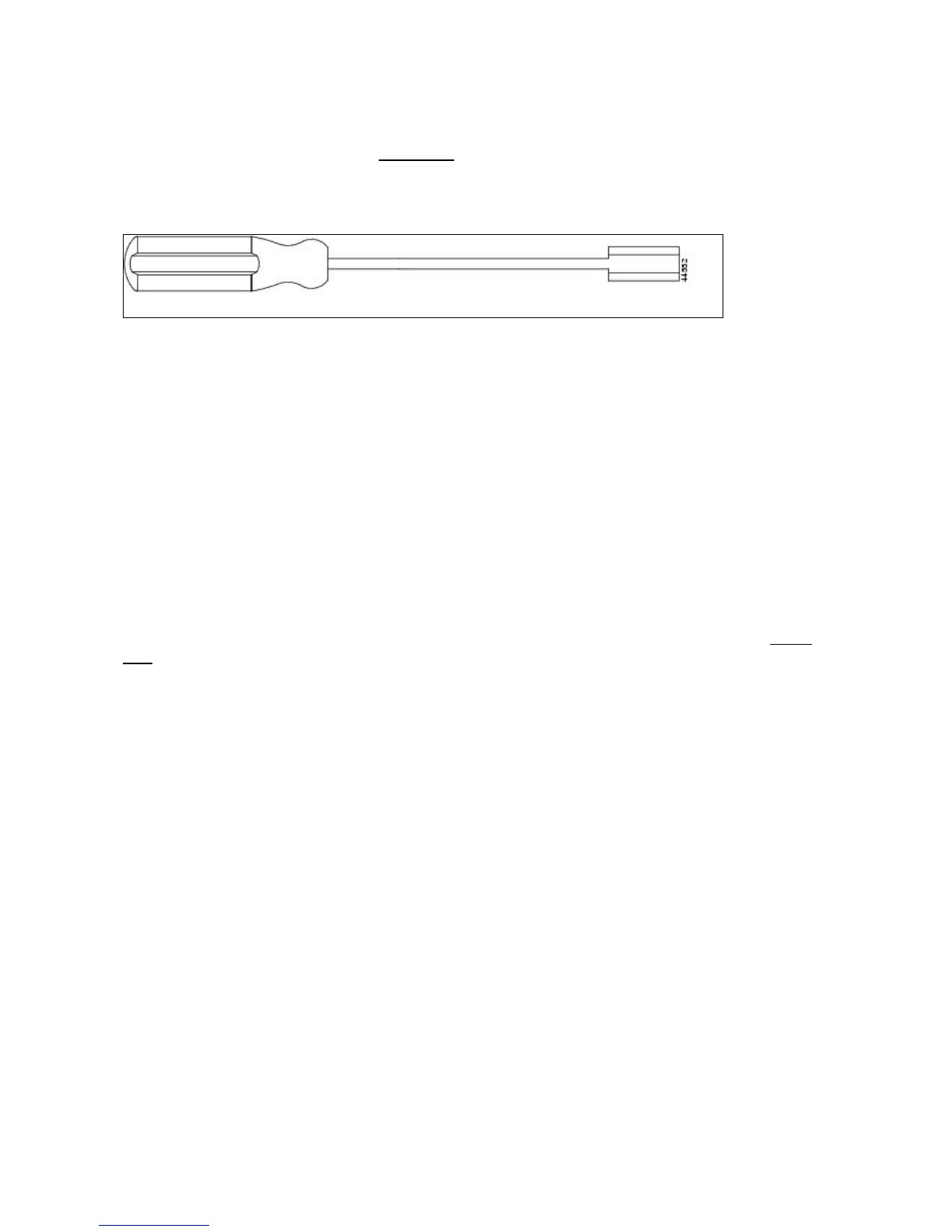

Figure 1-14: BNC Insertion and Removal Tool
This tool can be obtained with P/N 227-T1000 from:
Amphenol USA (www.amphenol.com) One Kennedy Drive Danbury, CT 06810 Phone: 203 743-9272 Fax: 203 796-2032
This tool can be obtained with P/N RT-1L from:
Trompeter Electronics Inc. (www.trompeter.com) 31186 La Baya Drive Westlake Village, CA 91362-4047 Phone: 800 982-2629 Fax: 818 706-1040
High-Density BNC EIA
The ONS 15454 high-density BNC EIA supports 48 DS-3 circuits on each side of the ONS 15454 (48
transmit and 48 receive connectors). If you install BNC EIAs on both sides of the unit, the ONS 15454 hosts
up to 96 circuits. The high-density BNC EIA supports Trompeter UCBJ224 (75-ohm) 4-leg connectors (King
or ITT are also compatible). Use straight connectors on RG-59/U cable to connect to the high-density BNC
EIA. Cisco recommends these cables for connection to a patch panel; they are designed for long runs. You
can use high-density BNC EIAs for DS-3 (including the DS3XM-6 and DS3XM-12) or EC-1 cards. Figure
1-15 shows the ONS 15454 with preinstalled high-density BNC EIAs.
To install coaxial cable with high-density BNC connectors, refer to the "Install Shelf and Backplane Cable"
in the Cisco ONS 15454 Procedure Guide.
Figure 1-15: High-Density BNC Backplane for Use in 1:N Protection Schemes
ONS_15454_Reference_Manual_R8.5.x_--_Shelf_and_Backplane_Hardware
BNC Insertion and Removal Tool 19
