Table 1-3 shows protection groups and their applicable slot assignments.
Table 1-3: MiniBNC Protection Types and Slots
Protection Type Working Slots Protection Slots
Unprotected 1-6, 12-17 -
1:1 2, 4, 6, 12, 14, 16 1, 3, 5, 13, 15, 17
1:N (HD, where N 5) 1, 2, 16, 17 3, 15
1:N (LD, where N 2) 1, 2, 4, 5, 6, 12, 13, 14, 16, 17 3, 15
MiniBNC Connectors
You can install MiniBNCs on one or both sides of the ONS 15454. As you face the rear of the ONS 15454
shelf assembly, the right side is the A side (15454-EIA-HDBNC-A96) and the left side is the B side
(15454-EIA-HDBNC-B96). The diagrams adjacent to each row of connectors indicate the slots and ports that
correspond with each connector in that row, depending on whether you are using a high density (HD) or low
density (LD) configuration. The MiniBNC connector pairs are marked Tx and Rx to indicate transmit and
receive cables for each port.
Figure 1-16 shows the ONS 15454 with preinstalled MiniBNC EIAs.
To install coaxial cable with MiniBNC connectors, refer to the "Install the Shelf and Backplane Cable"
chapter in the Cisco ONS 15454 Procedure Guide.

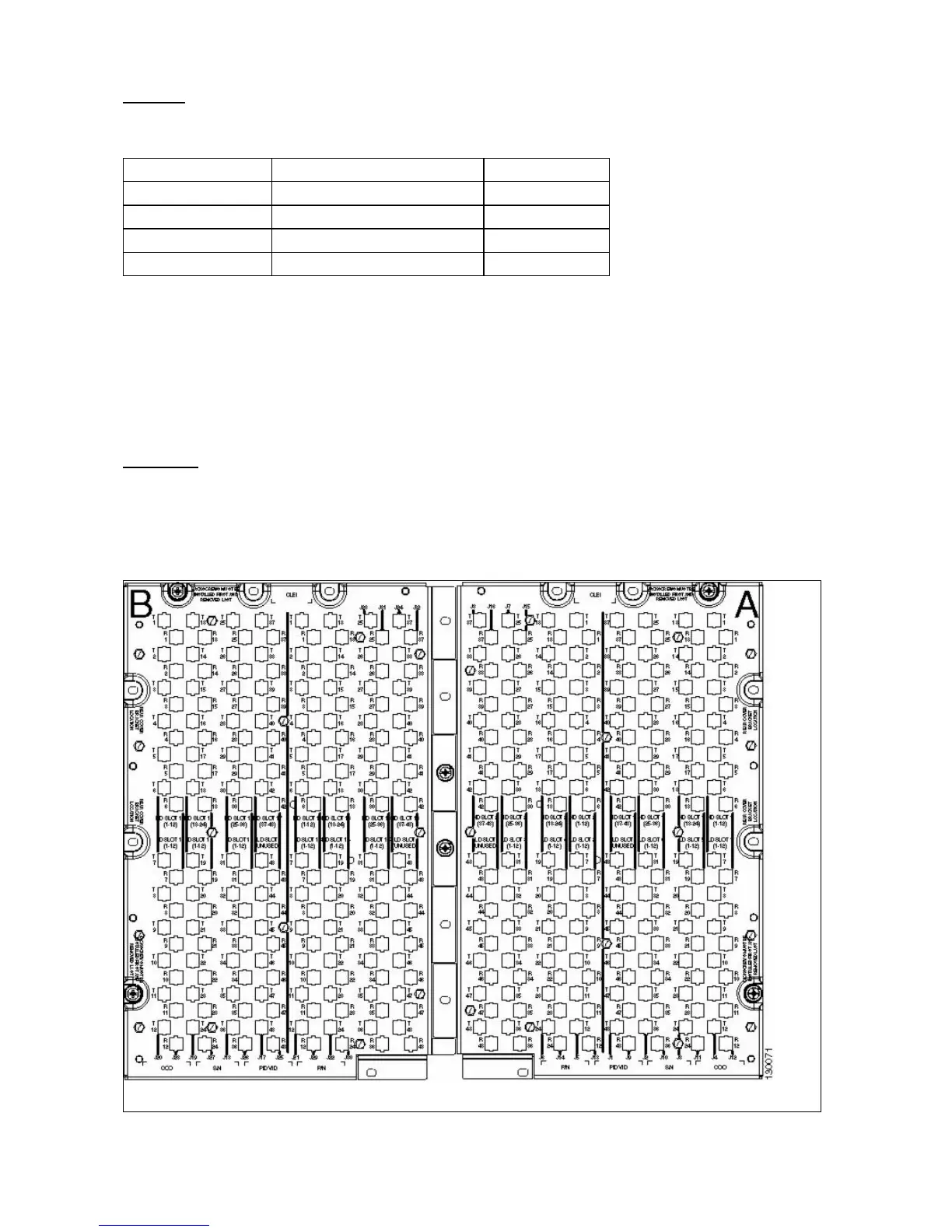

Figure 1-16: MiniBNC Backplane for Use in 1:N Protection Schemes
ONS_15454_Reference_Manual_R8.5.x_--_Shelf_and_Backplane_Hardware
MiniBNC EIA 21
