Cisco ONS 15454 Series Reference Manual

Tables 1-11 and 1-12 show the J-labeling and corresponding card ports for a shelf assembly configured with
low-density electrical cards.
Table 1-11: J-Labeling Port Assignments for a Shelf Assembly Configured with Low-Density Electrical Cards (A Side)
Slot Port Type TX J4 J3 J2 J1 J5 J6 J7 J8
RX J12 J11 J10 J9 J13 J14 J15 J16
Ports Ports Ports Ports Ports Ports Ports Ports
1
DS-1 1-14 - - - - - - -
DS-3 1-12 - - - - - - -
2
DS-1 - - - - 1-14 - - -
DS-3 - - - - 1-12 - - -
3
DS-1 - - - - - - 1-14 -
DS-3 - - - - - - 1-12 -
4
DS-1 - - - - - 1-14 - -
DS-3 - - - - - 1-12 - -
5
DS-1 - 1-14 - - - - - -
DS-3 - 1-12 - - - - - -
6
DS-1 - - 1-14 - - - - -
DS-3 - - 1-12 - - - - -
Table 1-12: J-Labeling Port Assignments for a Shelf Assembly Configured with Low-Density Electrical Cards (B Side)
Slot Port Type| TX J20 J19 J18 J17 J21 J22 J23 24
RX J28 J27 J26 J25 J29 J30 J31 J32
Ports Ports Ports Ports Ports Ports Ports Ports
ONS_15454_Reference_Manual_R8.5.x_--_Shelf_and_Backplane_Hardware

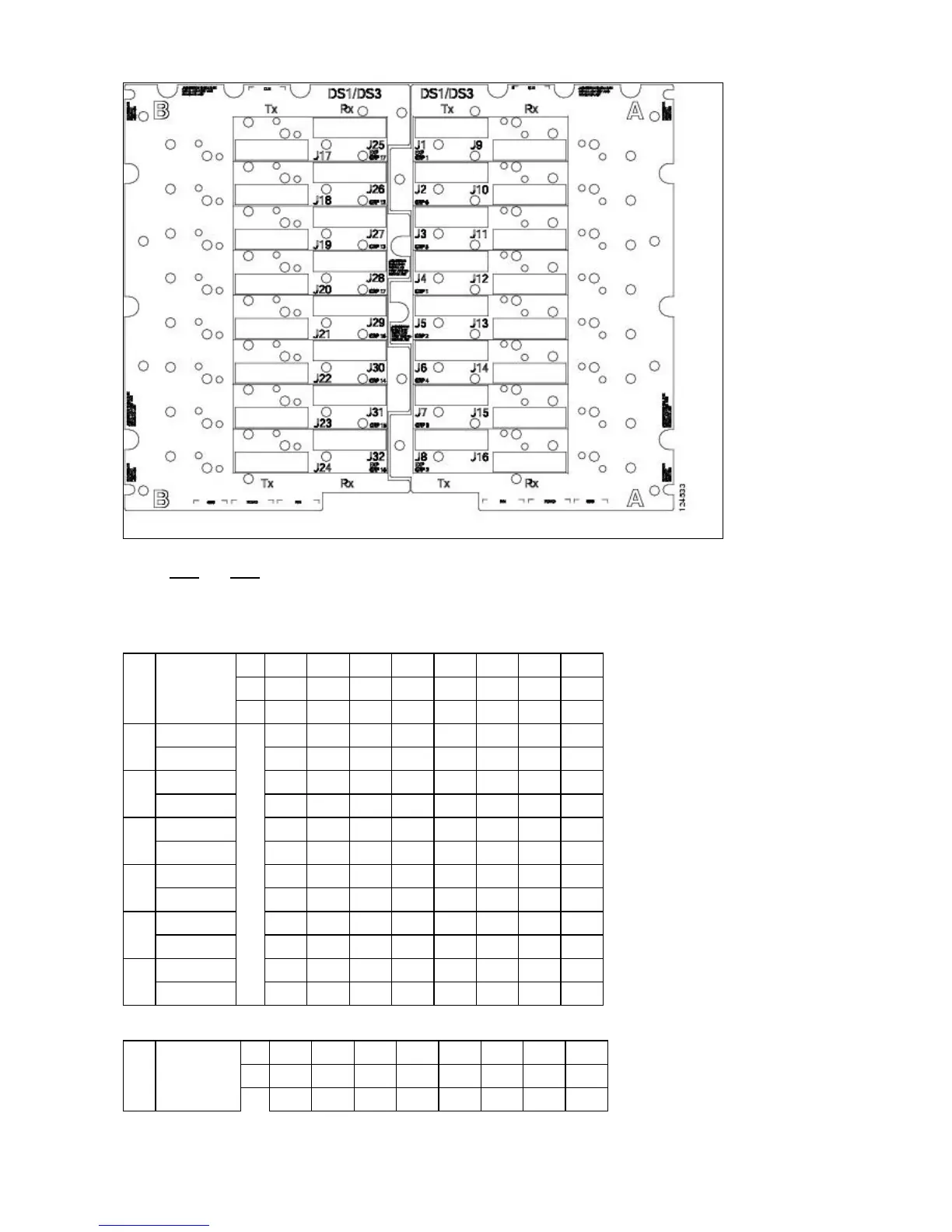

Figure 1-21: UBIC-H EIA Connector Labeling 32
