Cisco ONS 15454 Series Reference Manual

The UBIC-V sheet metal covers use the same screw holes as the standard sheet metal covers, but they have
12 additional holes for pan-head screws and three holes for jack screws, so you can screw down the cover
and the board using standoffs on the UBIC-V board.
When installed with the standard door and cabling on the backplane, the ONS 15454 shelf measures
approximately 15.7 inches (399 mm) deep when partially populated with backplane cables, 16.1 inches (409
mm) deep when fully populated, and 16.75 inches (425 mm) deep with the rear cover installed. When
installed with the deep door and cabling on the backplane, the ONS 15454 shelf measures approximately
17.5 inches (445 mm) deep when partially populated with backplane cables, 17.9 inches (455 mm) deep
when fully populated, and 18.55 inches (471 mm) deep with the rear cover installed.
The UBIC-V EIA supports the following cards:
DS1-14, DS1N-14•
DS3-12, DS3N-12•
DS3i-N-12•
DS3-12E, DS3N-12E•
EC1-12•
DS3XM-6•
DS3XM-12•
DS3/EC1-48•
DS1/E1-56•
ONS_15454_Reference_Manual_R8.5.x_--_Shelf_and_Backplane_Hardware

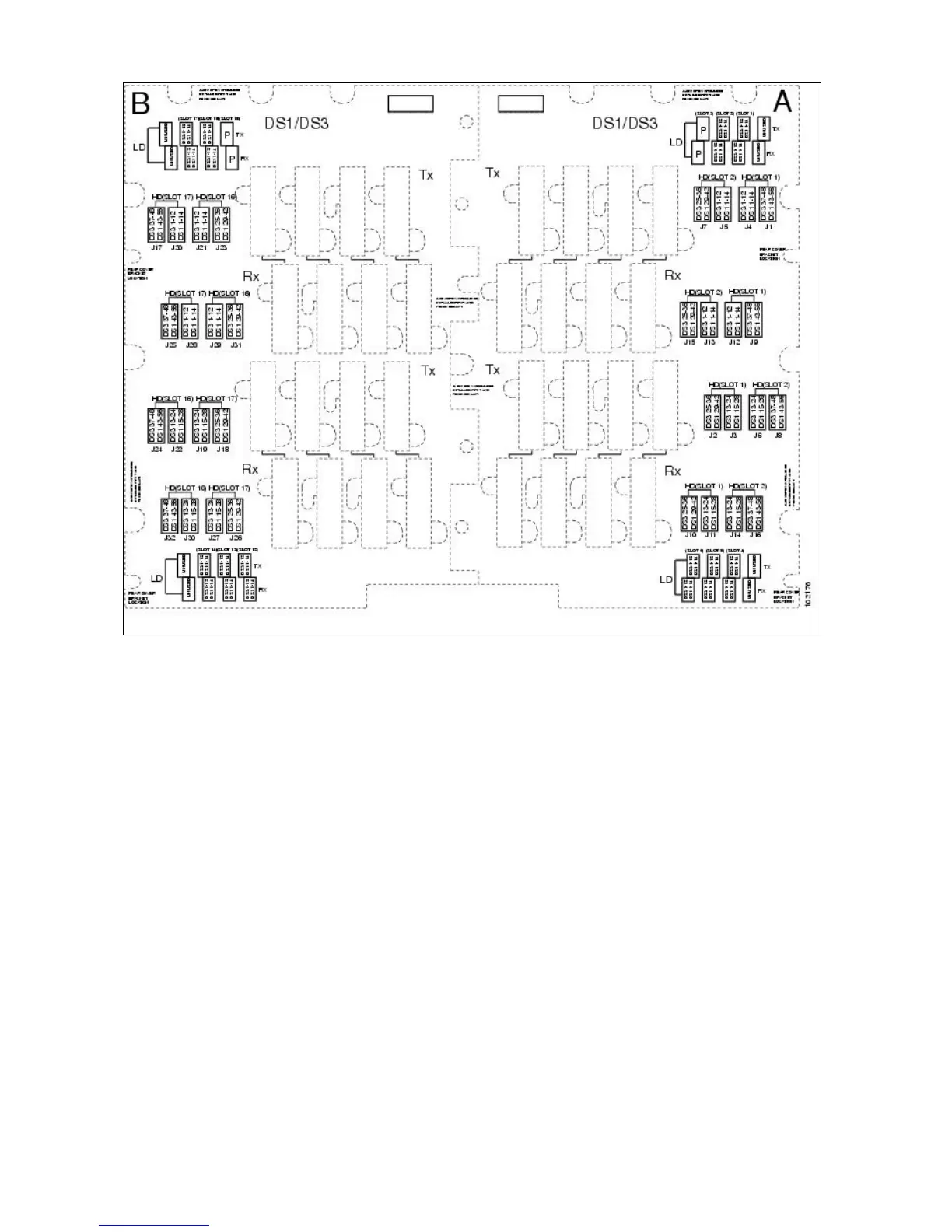

Figure 1-20: UBIC-V Slot Designations 30

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
