Cisco SCE 8000 User Manual

2-14
Cisco SCE8000 GBE Installation and Configuration Guide
Chapter 2 Introduction to the Cisco SCE 8000 10 GBE Platform
Optical Bypass Module (OPB-SCE8K)
Up to four optical bypass modules can be mounted using an external mount panel
(OPB-SCE8K-EXT-PNL). A single panel can serve two Cisco SCE 8000 platforms, each cutting two
links or up to four Cisco SCE 8000 platforms, each cutting a single link. The optical bypass module is
displayed in Figure 2-8. Table 2-8 lists the optical bypass module ports, and Table 2-9 lists the optical
bypass module LEDs.

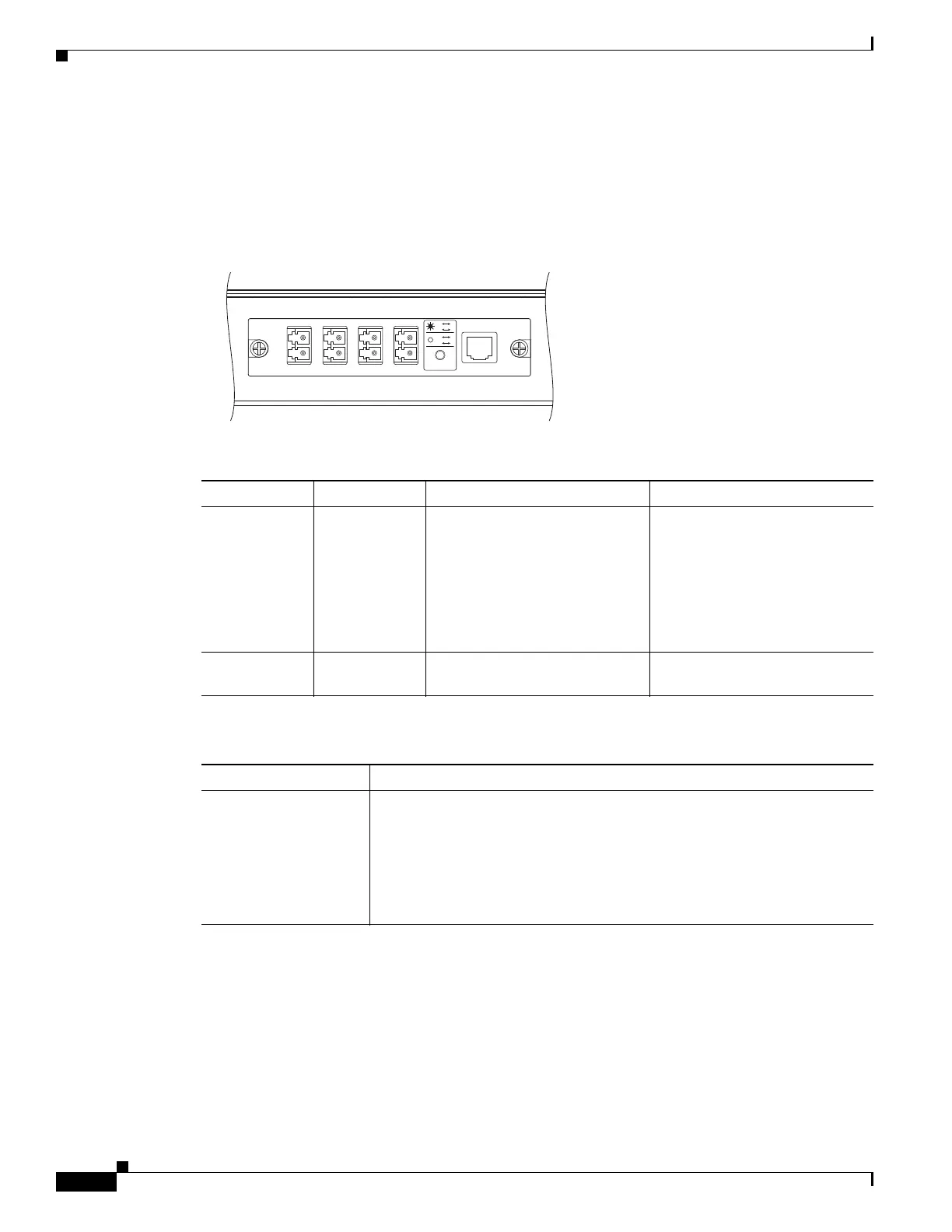

Figure 2-8 Optical Bypass Module
Ta b l e 2 - 8 O p t i c a l B y pass Module Ports
Port Quantity Description Connect This Port To
10 GBE Line
port
4 10 GBE ports A through D
Duplex LC, panel mount adaptor
for LC/UPC connectors
SPA interfaces on the Cisco SCE
8000.
See the “Cabling the 10 GBE
Line Interface Ports: Using the
External Optical Bypass
Module” section on page 6-14
for further information.
CTRL 1 RJ-11 port RJ-11 Optical Bypass port on the
Cisco SCE 8000-SCM-E.
Ta b l e 2 - 9 O p t i c a l B y pass Module LEDs
LEDs Description
Status The Status LED indicates the operational status of the optical bypass
module, as follows:
• Green—Bypass module has been de-activated (traffic flows through the
Cisco SCE 8000 platform)
• Off—Bypass module is active (traffic does not flow through the Cisco
SCE 8000 platform)
TX
RX
A
TX
RX
B
TX
RX
C
TX
RX
D
A
B
A
C
C
D
B
D
STATUS
CTRL
OPB—SCE8K—MM
242235
