Cisco SCE8000 GBE Installation and Configuration Guide
Chapter 4 Installing the Cisco SCE 8000 Chassis
Installing the Chassis in the Rack
Step 2 Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the
equipment rack. (See Figure 4-14.)
Step 3 Use a tape measure and level to choose and mark the position that the chassis is to be installed in the
rack. Make a mark at equal height on both sides of the rack. This helps ensure that the chassis is installed
straight and level.

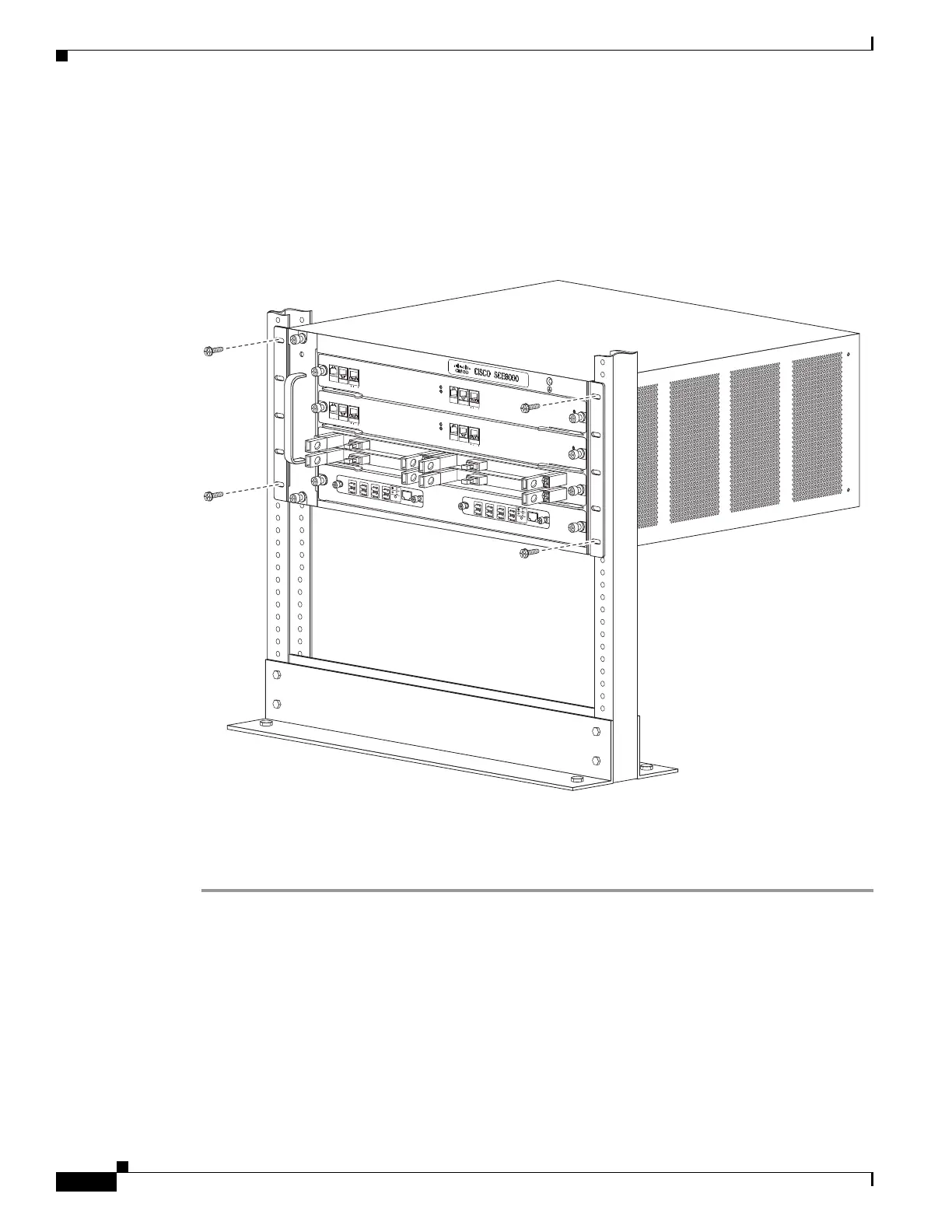

Figure 4-14 Installing the Cisco SCE 8000 Chassis in the Rack
Step 4
Install the eight (four per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch screws through the holes in the
bracket and into the threaded holes in the equipment rack posts.
Step 5 Use a tape measure and level to verify that the chassis is installed straight and level.
