Cisco TelePresence MX700 and MX800 Administrator Guide
Connecting the Touch 10 user interface
The Touch 10 user interface must either be directly
connected to the MX700 or MX800 video system as
described on this page, or paired to the video system via the
network (LAN) as described on the next page. The latter is
referred to as remote pairing.
The procedures in this chapter apply to all MX700 and
MX800 video systems.
(page 1 of 2)

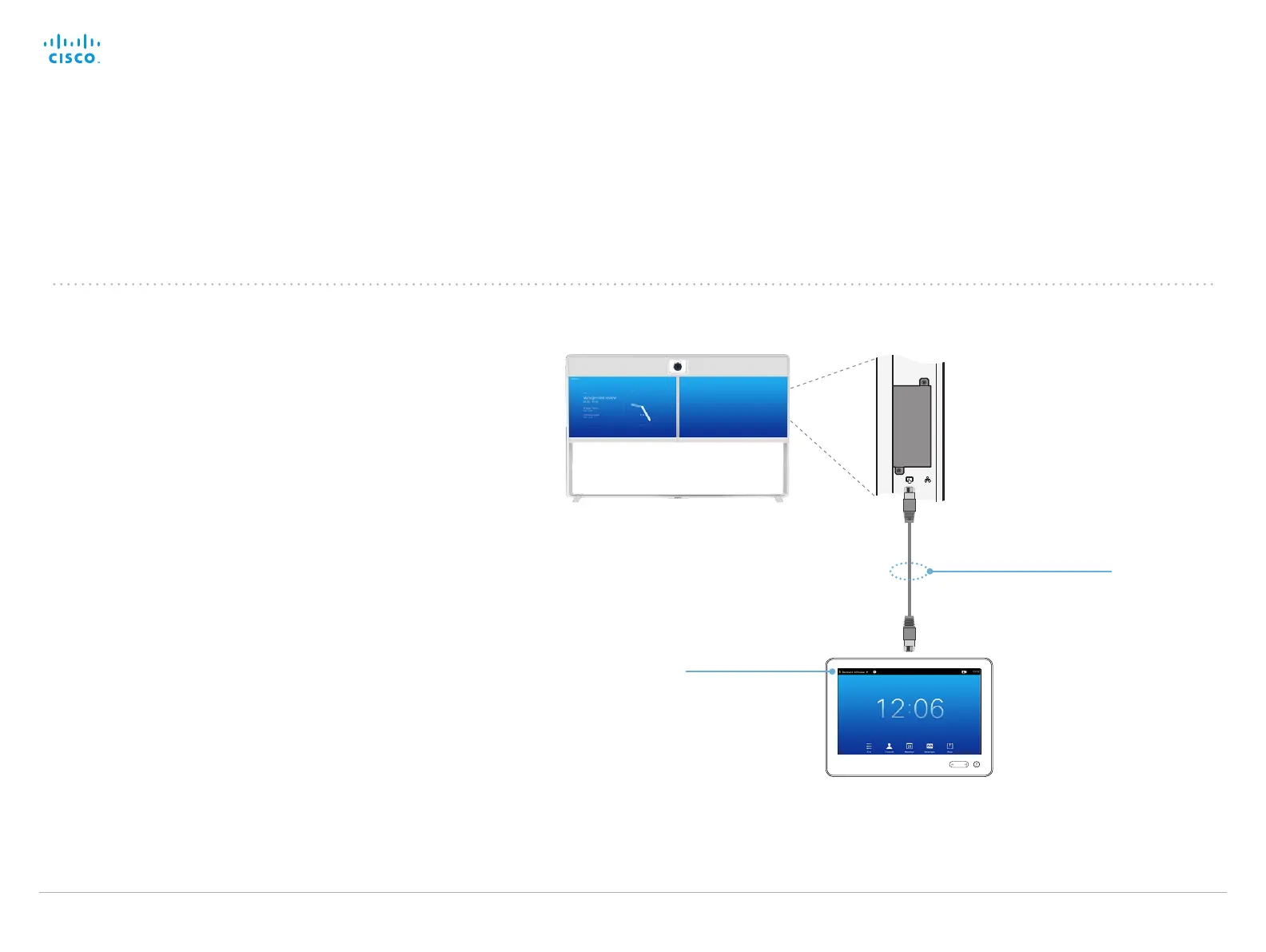

Connecting Touch 10 directly to the video
system
Connect Touch 10 to the video system’s PoE injector as
illustrated.
Touch 10 set-up
Once Touch 10 is connected, the set-up procedure begins.
Follow the instructions on screen.
If Touch 10 needs software upgrade, new software will be
downloaded from the video system and installed on the unit
automatically as part of the set-up procedure. Touch 10
restarts after the upgrade.
You can verify that Touch 10 is successfully connected to the
video system by checking that the video system's address is
displayed in the top banner.
Video system address
The Ethernet connector
is behind the lid at the
rear of Touch 10.
PoE rated Ethernet cable
Contents
Introduction
Web interface
System settings
Setting passwords
AppendicesAppendices

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
