Cisco TelePresence MX700 and MX800 Administrator Guide
Accessing call information

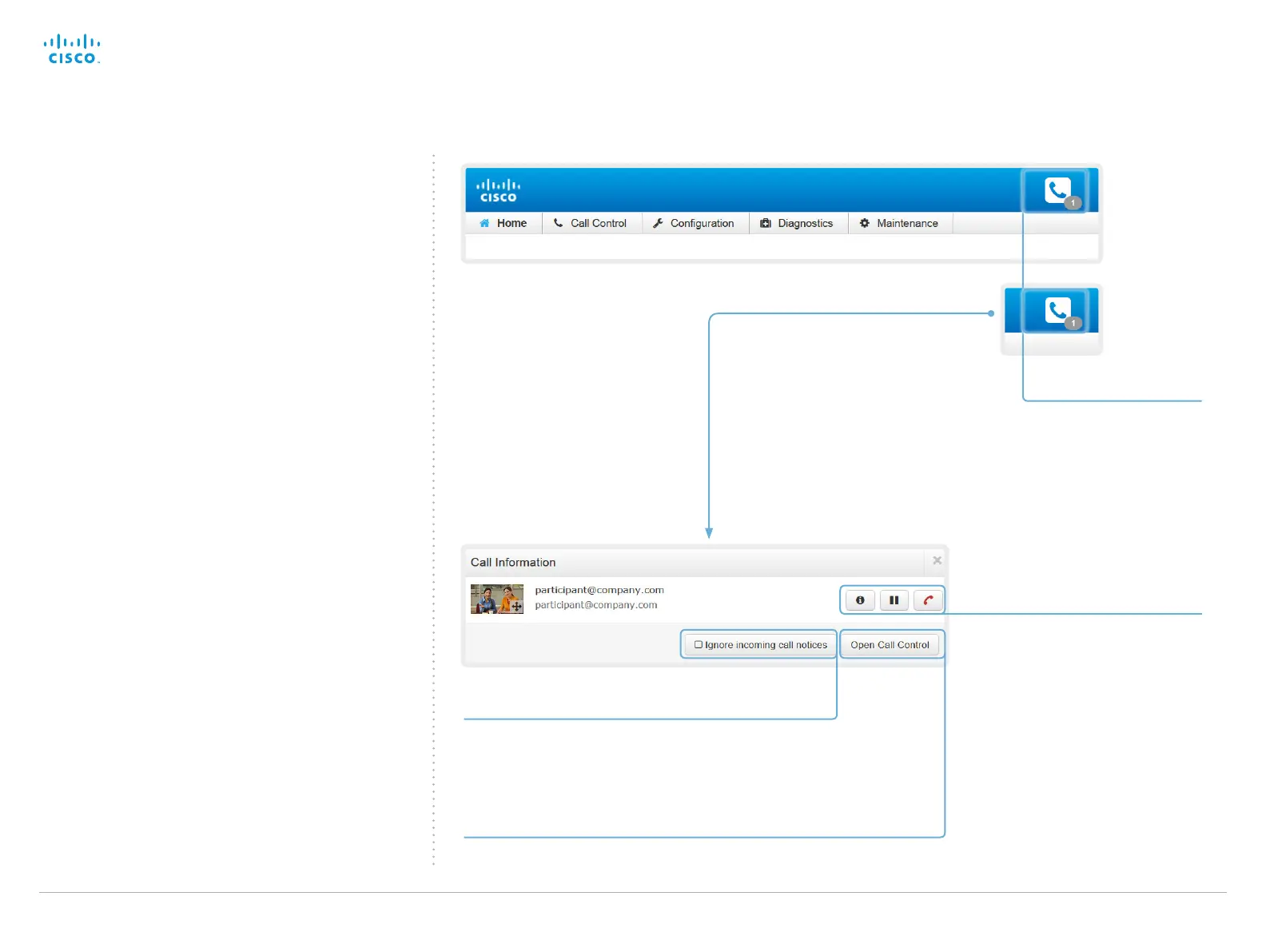

A call state indicator is available in the top bar in the web
interface. It shows whether the system is in a call or not, and
how many calls it is engaged in. You may also be notified
about incoming calls.
Call state indicator
The call state indicator is
available on all pages except
the Call Control page.
The badge indicates the number
of active calls. If the system is
idle, there is no badge.
Click the indicator to get more
details about connected calls.
Call control
Use these buttons to:
• Show call details
• Put the call on hold
• Disconnect the call
Incoming call notification
As default, a notification is given when the
system receives a call.
Check this box, if you do not want to receive
such notifications.
Opening the Call Control page
Click Open Call Control to go straight to the Call Control page.
Contents
Introduction
Web interface
System settings
Setting passwords
Appendices
Web interface

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
