Snapshots from the video system
Far end snapshots
Capturing snapshots
The snapshot feature, which is disabled by default, allows
snapshots captured by the video system to be displayed
on the Call Control page. Captures from the video system’s
camera as well as from its presentation channel will be
displayed.
This feature might come in handy when administering the
video system from a remote location, e.g. to check the
camera view.
To use web snapshots you have to sign in with ADMIN
credentials.
Enabling the snapshot feature
The snapshot feature is disabled by default. The feature must
be enabled using the web interface.
Web interface:
• Go to the Configuration tab and select System
Configuration
• Navigate to Video > AllowWebSnapshots and choose On.
• Click Save for the change to take effect.
Far end snapshots while in a call

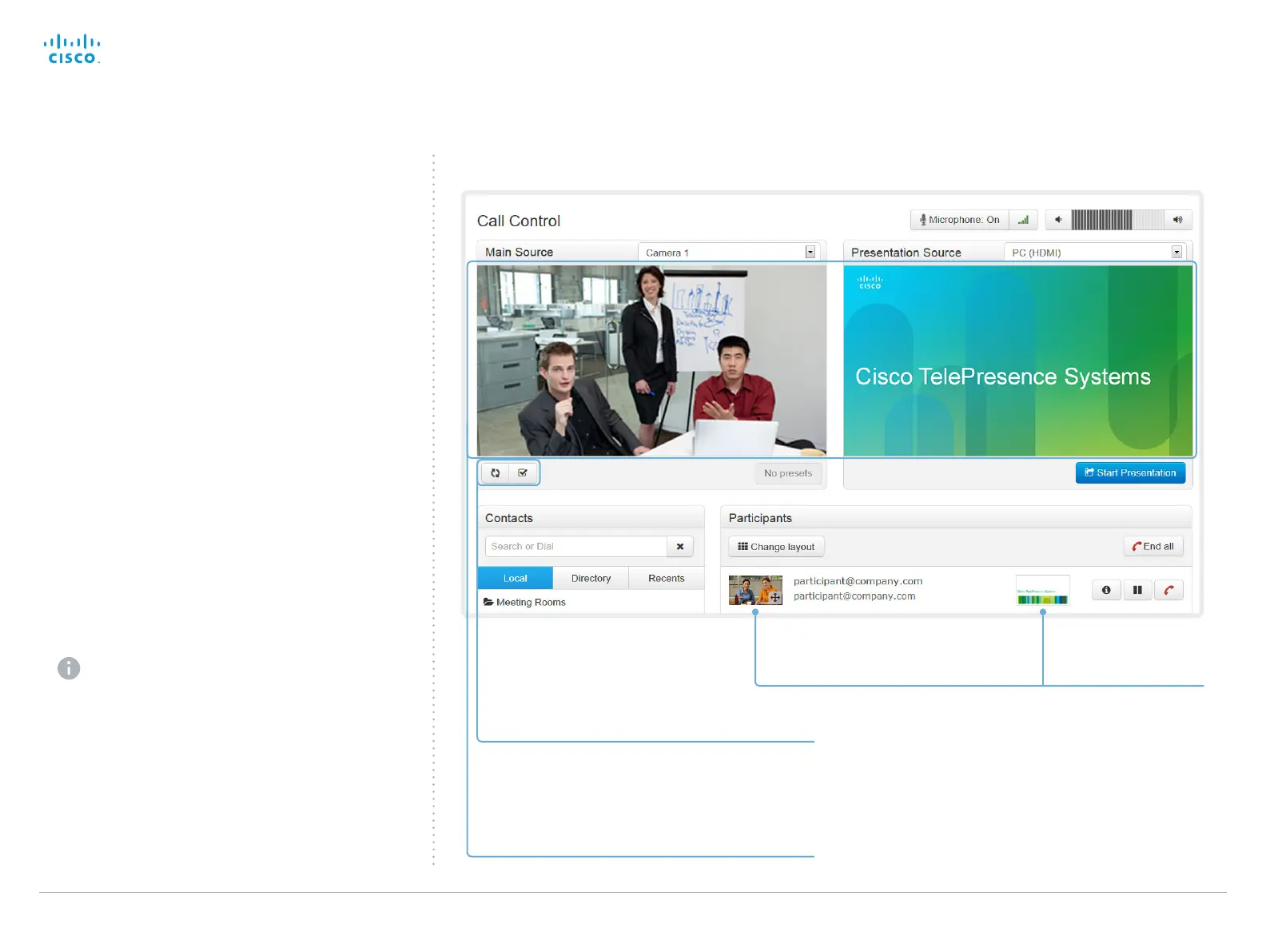

While in a call, snapshots of the remote participant’s main
camera and presentation channel (far end) will be captured
and displayed as shown in the illustration. The snapshots are
updated approximately every 30seconds.
Far end snapshots are captured even if web
snapshots are disallowed on the far end video
system. Web snapshots are prohibited only for
encrypted calls.
Take live snapshots
While the Live snapshots box is checked,
snapshots are captured by the video
system (main source and presentation
source) approximately every two seconds.
Click the snapshot in order
to see a larger image.
