Placing a call
You can use the Call Control page to place a call.
Even if the web interface is used to initiate the call,
it is the video system (display, microphones and
loudspeakers) that is used for the call; it is not the PC
running the web interface.
Calling
You can call someone either by choosing a contact name in
the Local, Directory or Recents lists, or by typing a complete
URI or number in the Search or Dial field. Then click Call in
the associated contact card.
Searching the contact lists
Enter one or more characters in the Search or Dial field.
Matching entries from the Local, Directory and Recents lists
will be listed as you type.
Select the correct entry in the list and click Call.
Calling more than one
A point-to-point video call (a call involving two parties only)
may be expanded to include more participants.
If your system supports the optional built-in MultiSite feature,
up to five participants, yourself included, can join the video
call (conference).
Follow the same procedure to call the next conference
participant as you did when calling the first participant.

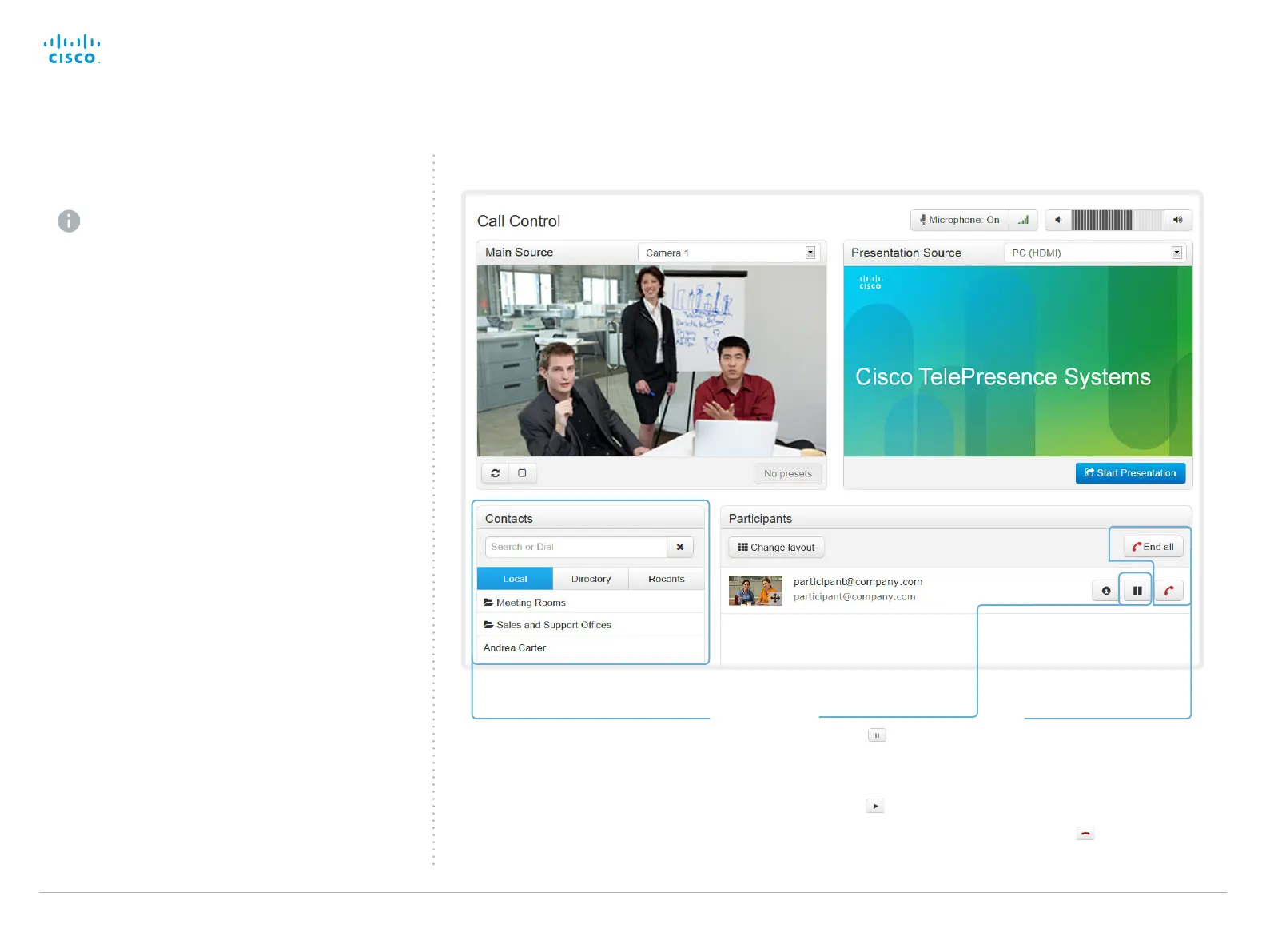

Calling someone
Click a contact name, either in the
Local, Directory or Recents lists.
Then click Call in the contact card.
Alternatively, enter the complete URI
or number in the Search and Dial
field. Then click the Call button that
appears next to the URI or number.
Ending a call
If you want to terminate a
call or conference, click End
all. Confirm your choice in
the dialog that appears.
To disconnect just one
participant in a conference,
click the
button for that
participant.
Holding and resuming
Use the
button next
to the participant’s name
to put him on hold.
To resume the call,
use the button
that is present when a
participant is on hold.
Navigate to: Call Control
