Cisco TelePresence MX700 and MX800 Administrator Guide
Starting extended logging
Extended logging mode may be switched on to help diagnose
network issues and problems during call setup. While in this
mode more information is stored in the log files.
Note that extended logging uses more of your video system’s
resources, and may cause your video system to under-
perform. You should only use extended logging mode when
troubleshooting an issue.
Start extended logging
Click Start extended logging.
Extended logging lasts for 10 minutes. You can stop
the extended logging before it times out by clicking
the Stop extended logging button that appears when
extended logging is on.
As default, the network traffic is not captured. Use the
drop down menu if you want to include a full or partial
capture of the network traffic.

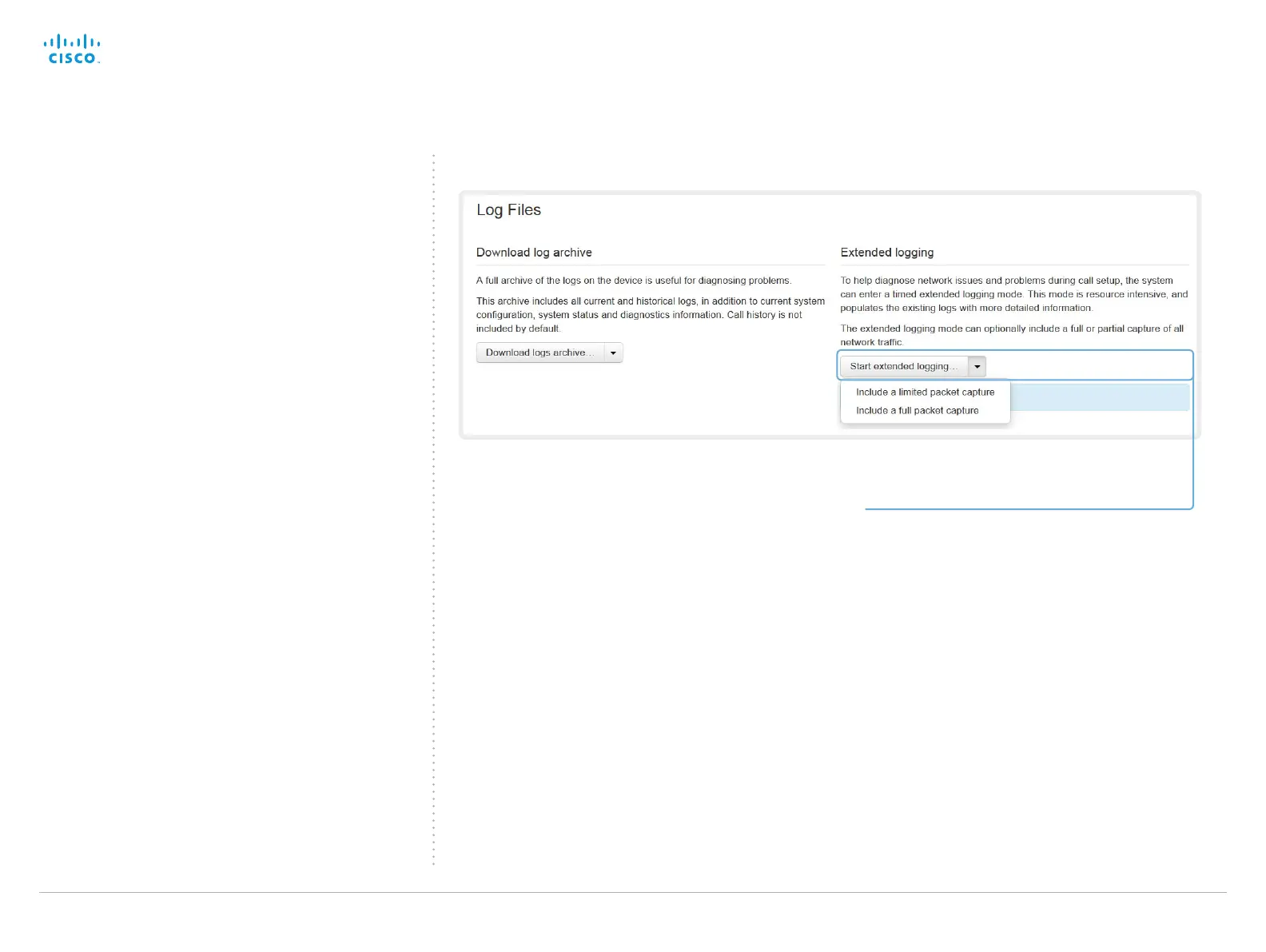

Navigate to: Diagnostics > Log Files
Contents
Introduction
Web interface
System settings
Setting passwords
Appendices
Web interface

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
