Cisco TelePresence MX700 and MX800 Administrator Guide
Video compositor GPIO
Advanced customization of video
The video system supports full customization of the video
layouts/templates allowing support for advanced meeting
room setups and integrations.

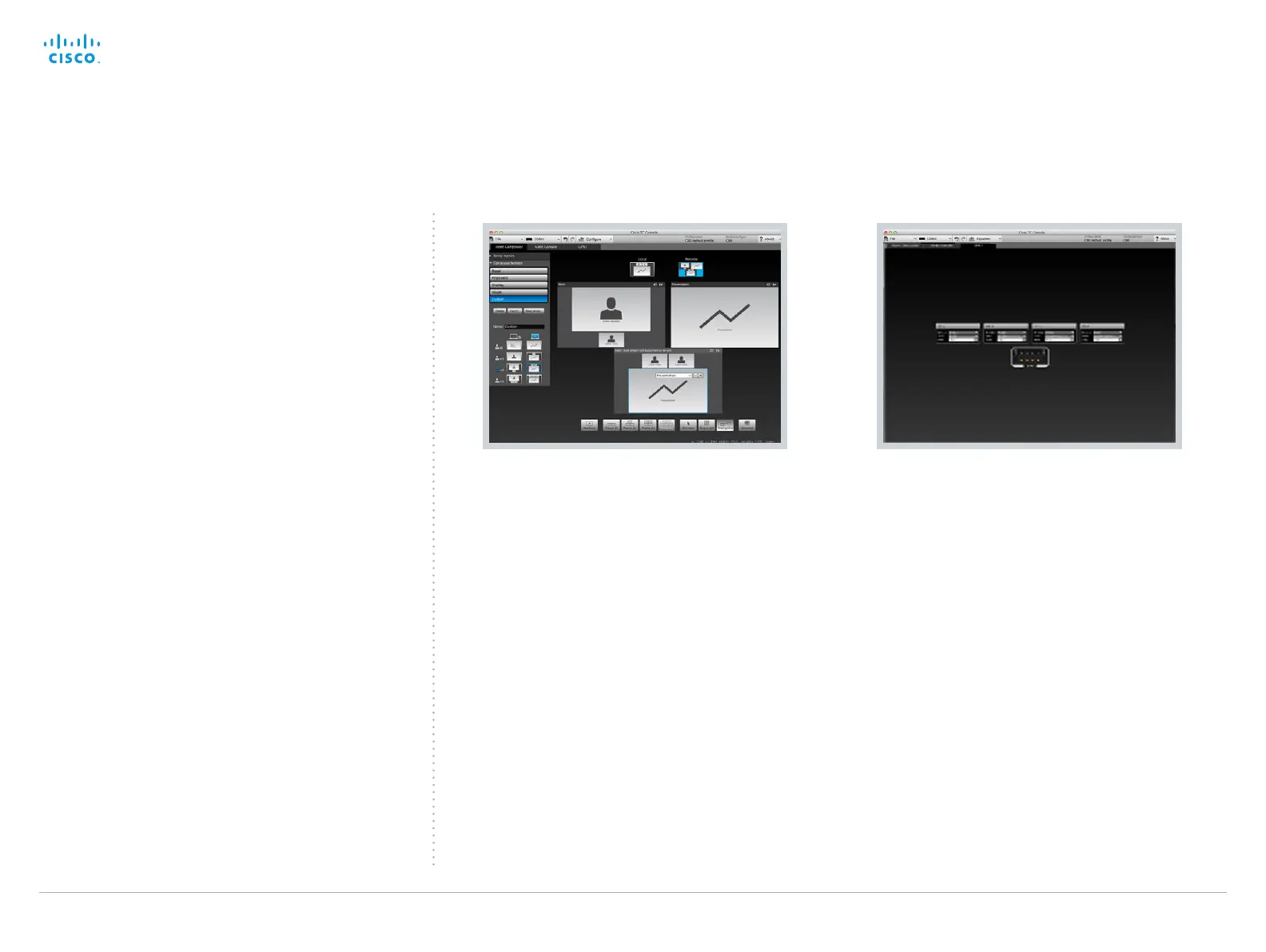

The TC Console application, which is a free software tool
that runs on PC/Mac, provides a graphical interface to the
advanced customizable features of the codec. TC Console
includes the following modules:
Video compositor
• Modify the default video compositing behavior of the
codec
• Add new layouts
• Change the automatically chosen layout
• Control what video sources are shown where and when
GPIO
• Change the behavior of the GPIO, i.e. what the codec
should do when pins go high/low
For more details about the functionality, see the
user guide included in the TC Console application
itself or download the TC Console user guide from
► http://www.cisco.com/go/mx-docs
How to obtain the TC Console application
Download the TC Console application for free from
the Cisco Developer Network (CDN) web site. Go to:
► http://developer.cisco.com/web/telepresence-developer
Contents
Introduction
Web interface
System settings
Setting passwords
AppendicesAppendices

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
