Choosing a wallpaper
If you want the company logo or another custom picture as
background on the video display, you may upload and use a
custom wallpaper.

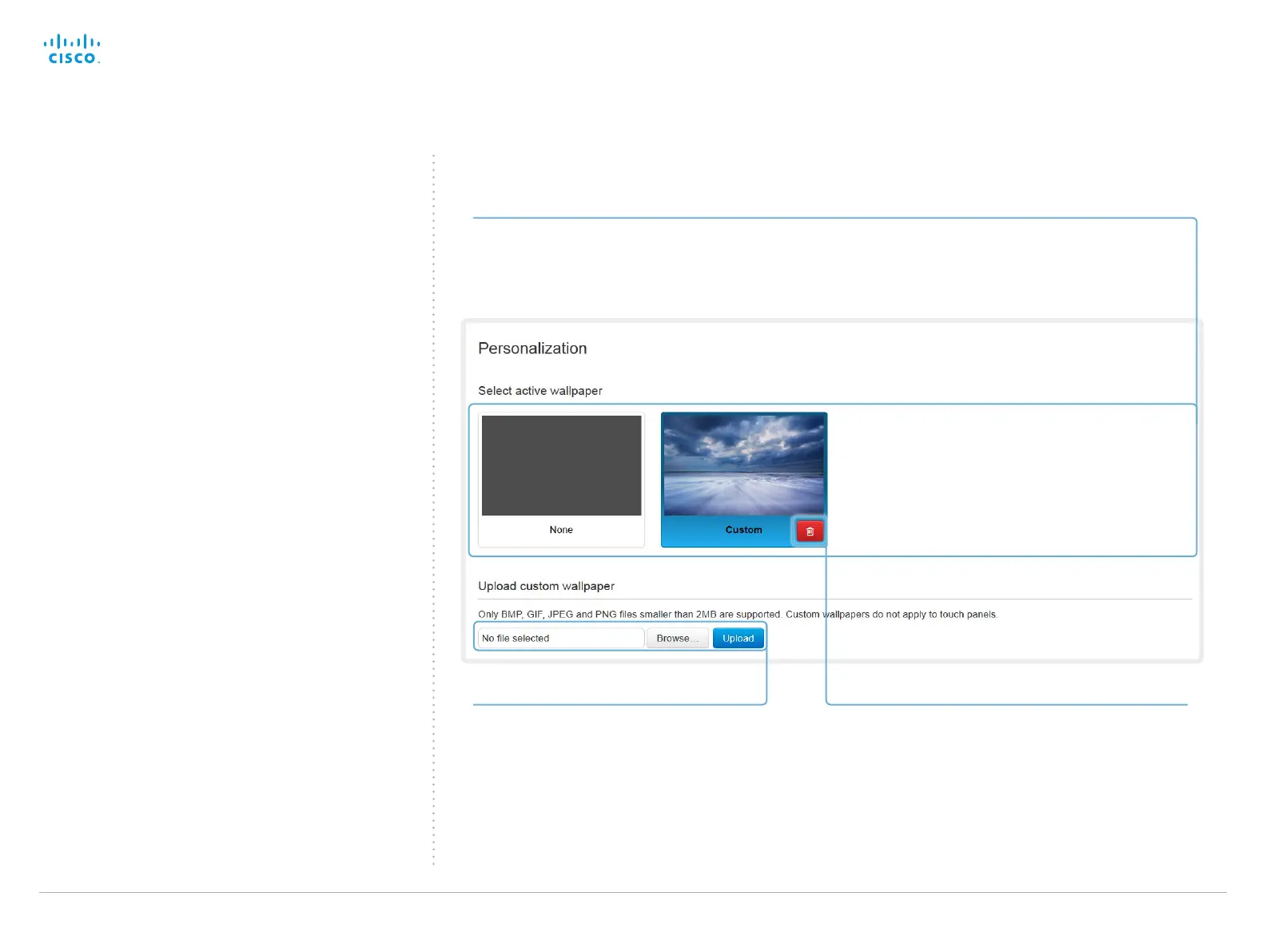

Activate/deactivate a wallpaper
Available wallpapers are represented by a miniature. If
you have uploaded a custom wallpaper, it will appear
in the list.
Click the miniature to switch to the corresponding
wallpaper. Choose None if you do not want a
wallpaper.
The chosen option is highlighted.
Upload a custom wallpaper
Click Browse... and locate your custom wallpaper
image file.
Click Upload to save the file on the video system.
Supported file formats: BMP, GIF, JPEG, PNG
Maximum file size: 2 MByte
The custom wallpaper will be automatically
activated once uploaded.
Navigate to: Configuration > Personalization
Delete the custom wallpaper
Click the delete symbol to remove the custom
wallpaper from the video system. Note that this
will remove the image file completely; you have to
upload it anew if you want to use it again.
