System information
The video system’s Home page shows an overview of the
basic set-up and status of the system
*
.
This includes information like system name and product type,
which software version the system runs, its IPaddress, etc.
Also the registration status for the video networks (SIP and
H.323) is included, as well as the number/URI to use when
making a call to the system.
Note that the video system cannot be registered to
H.323 and SIP simultaneously.
Navigate to: Home
*

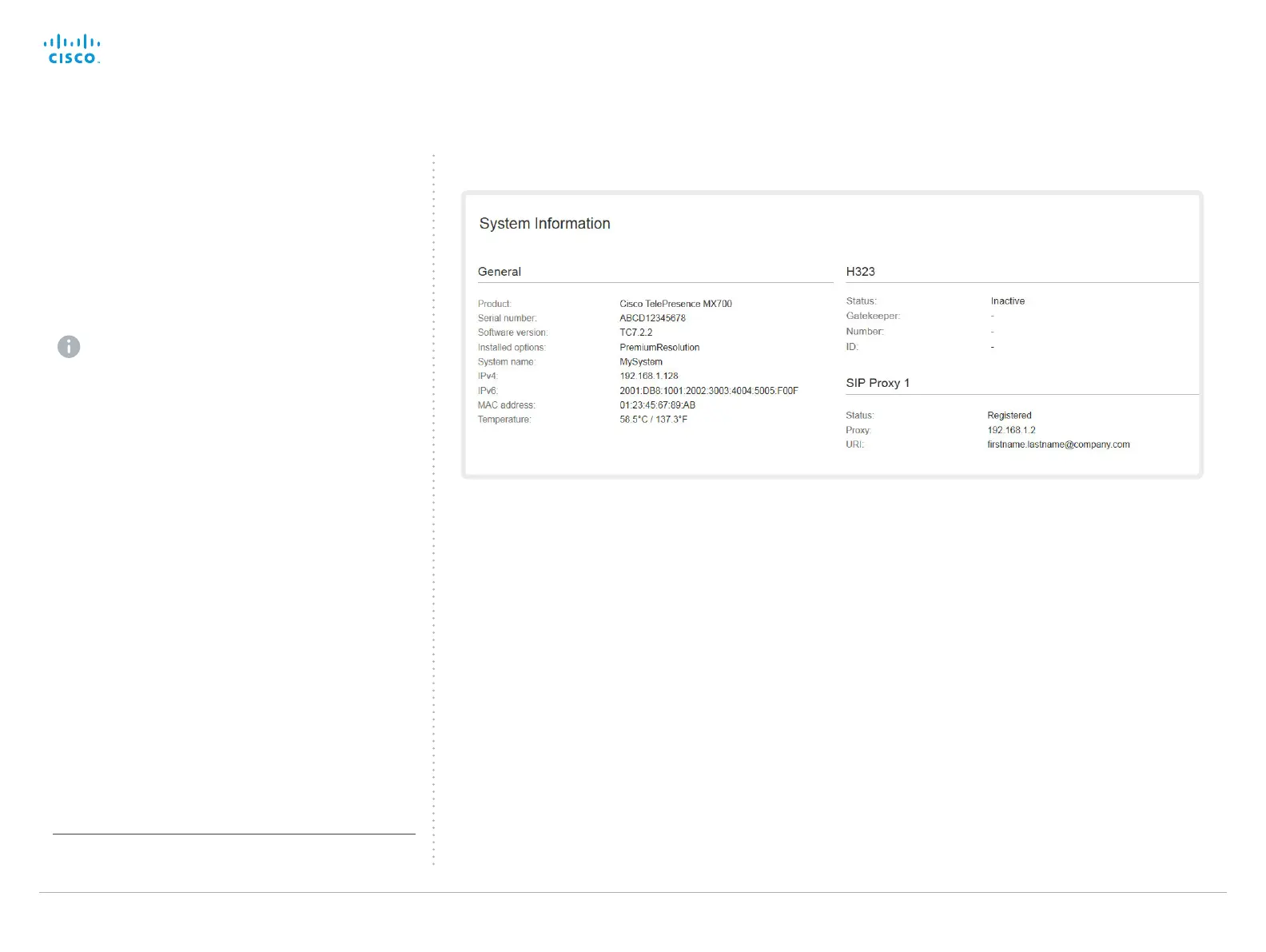

The system information shown in the illustration serve as an
example. Your system may be different.
