Cisco TelePresence MX700 and MX800 Administrator Guide
2. Define how to use the external monitor
Use the Video > Monitors setting to define what to display on
the external monitor.
Choose TriplePresentationOnly to allow presentations on the
external monitor.
If the setting is kept at Dual (default), all participants and
content will be distributed on the two integrated monitors,
and nothing will be shown on the external monitor.
Do NOT use TriplePresentationOnly if no external monitor is
connected. Presentations will fail to display.
3. Set the monitor resolution and refresh rate
The codec will read the native resolution of a monitor and
output this if possible. Typically, this will give the best
possible picture for the connected monitor.
If auto-detection of resolution and refresh rate fails, you
have to set resolution manually using the Video > Output >
Connector 3 > Resolution setting.
Connecting an external monitor to MX700
1. Connect an external monitor
i. Switch off the system.
The power button is located directly below the codec
connector panel.

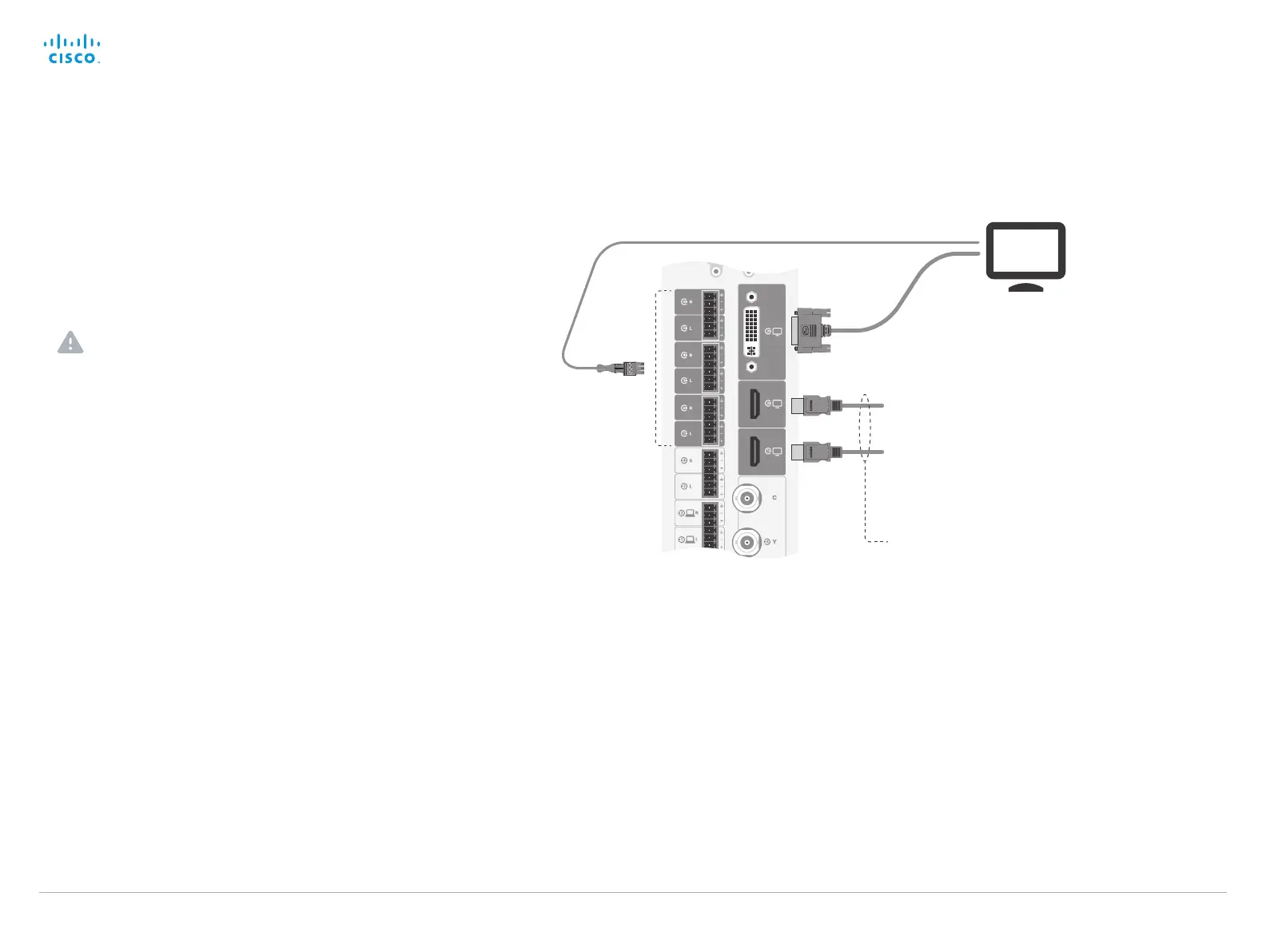

ii. Connect the monitor as shown in the illustration.
Use Connector 3 (DVI-I) for video and an Audio Line
output for audio.
iii. Switch on the system, and wait while the system starts
up.
An external monitor can be used to display content or
presentations (presented locally or received from far-end).
The codec and monitor must be connected and set up as
described below.
For a full description of each settings, refer to the
► System settings chapter.
You must remove the video system’s left side cover to
get access to the codec connector panel. The cover
is fastened with magnets.
These connectors are used
for the integrated monitors.
Do not disconnect!
Connector 3 (DVI-I)
External monitor
Codec connector panel
Audio Line
outputs
(Euroblock,
3.5 mm)
Contents
Introduction
Web interface
System settings
Setting passwords
AppendicesAppendices

Cisco Telepresence MX800 Specifications

General

Pan range	-90 - 60 °
Product type	Video conferencing service management system
Product color	White
Wall mountable	Yes
Tilt angle range	-14 - 12 °
Number of persons	- person(s)
Aspect ratio	16:9
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.263, H.264, H.265
Resolution at capture speed	1920x1080@60fps
Supported graphics resolutions	352 x 288, 512 x 288, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Megapixel	- MP
Sensor type	-
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Closest focusing distance	1 m
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Display diagonal	70 \
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	591 W
Power consumption (typical)	571 W
