Cisco TelePresence MX700 and MX800 Administrator Guide
Changing system settings
All system settings can be changed from the System
Configuration page
*
. The value space for a setting is specified
either in a drop-down list or by text following the input field.
Different settings may require different user credentials. In
order to be sure that an administrator is able to change all
system settings, an administrator user must possess all user
roles.
You can read more about user administration and user roles
in the ► User administration chapter.

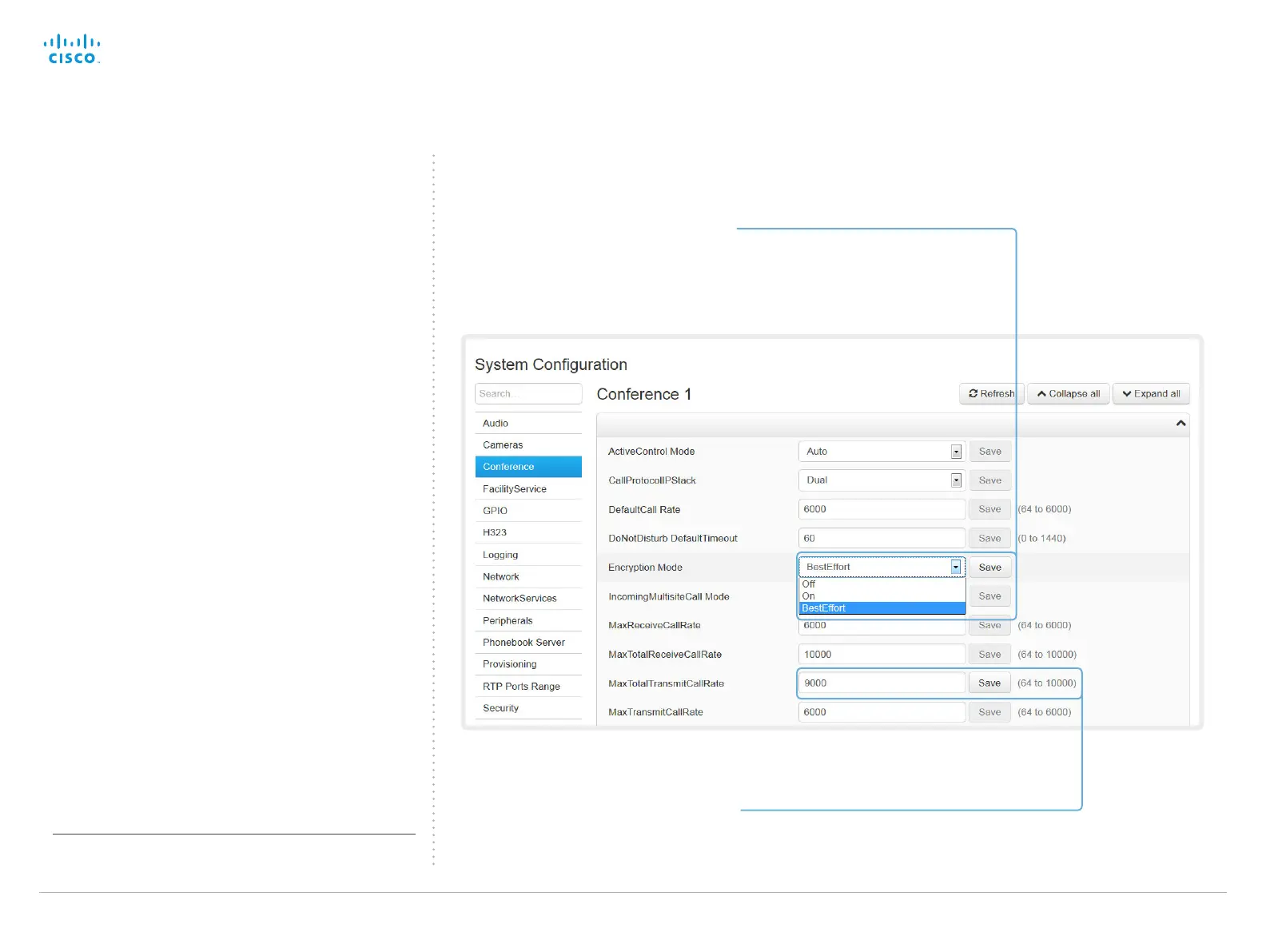

Drop-down list
Click the arrow to open the drop-down
list. Choose the preferred value and click
Save for the change to take effect.
Text input field
Enter text in the input field and click
Save for the change to take effect.
*
The configuration shown in the illustration serve as an example.
Your system may be configured differently.
Navigate to: Configuration > System Configuration
