Part DescriptionQuantity
10-32 x 3/4-inch Phillips pan-head screws10
Rack-mount guides2
Slider rails2
Procedure
Step 1 Install the front rack-mount brackets as follows:
a) Position a front rack-mount bracket against the chassis and align the screw holes as shown below. You
can attach the front rack-mount bracket at the front or the rear of the chassis, depending on which side
you want to locate on the cold aisle. Then attach the front rack-mount bracket to the chassis with four M4
screws.
You can align any four of the holes in the front rack-mount bracket to four of the six screw
holes on the side of the chassis. The holes that you use depend on the requirements of your rack
and the amount of clearance required for interface cables and power supply handles.
Note
b) Repeat Step 1 for the other front rack-mount bracket on the other side of the chassis.

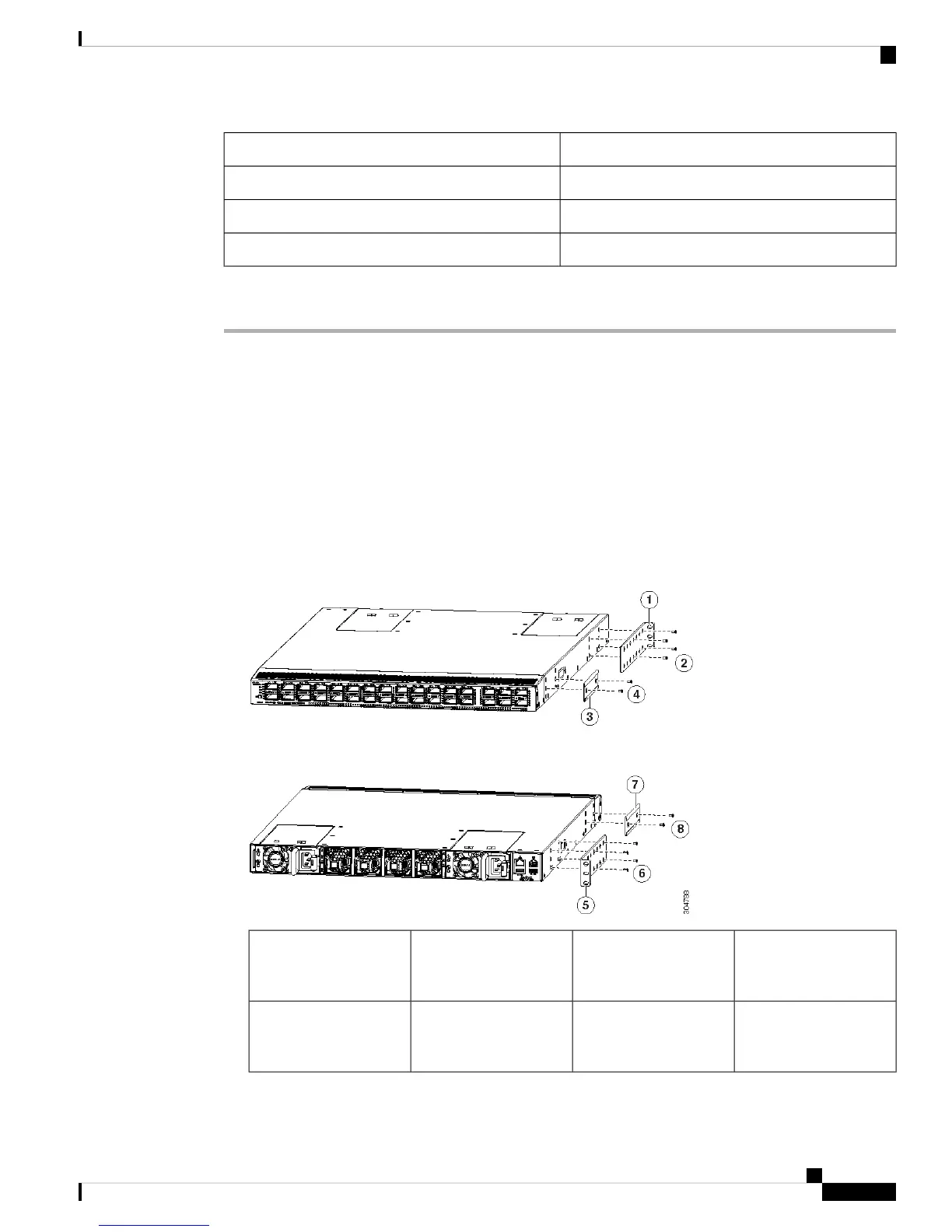

Figure 6: Attaching the Rack-Mount Brackets to the Chassis
Four M4 screws used to
attach the bracket to the
chassis
2Front rack-mount bracket
aligned to the rear of the
chassis
1
Two M4 screws used to
attach the brackets
4Rear rack-mount guide
aligned to the front of the
chassis
3
Cisco UCS 6454 Fabric Interconnect Hardware Installation Guide
21
Installing the Cisco UCS Fabric Interconnect
Installing the Cisco UCS Chassis in a Cabinet or Rack

Cisco UCS 6454 Specifications

General

Product Type	Fabric Interconnect
Ports	54
USB Ports	1 x USB 2.0
Form Factor	1 RU
Management	Cisco UCS Manager
Port Types	FCoE, FC
Downlink Ports	48 x 10/25 Gbps SFP28
Management Ports	1 x 1 Gbps RJ45
Console Ports	1 x RJ45
Latency	Less than 1 microsecond
Redundancy	Redundant power supplies and fans
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5 to 95% relative humidity, noncondensing
Power Supply	650W AC, hot-swappable
