Procedure
Step 1 Turn off electrical power to the router. Leave the power cable plugged in to channel ESD voltages to ground.
Step 2 Remove all network cables, including telephone cables, from the rear panel of the router.
Step 3 Align the NIM E-Series NCE with the guides in the chassis walls or slot divider, and slide it gently into the
NIM slot. (See Figure 29: Installing the NIM E-Series NCE in a Cisco ISR 4000 Series, on page 58.)

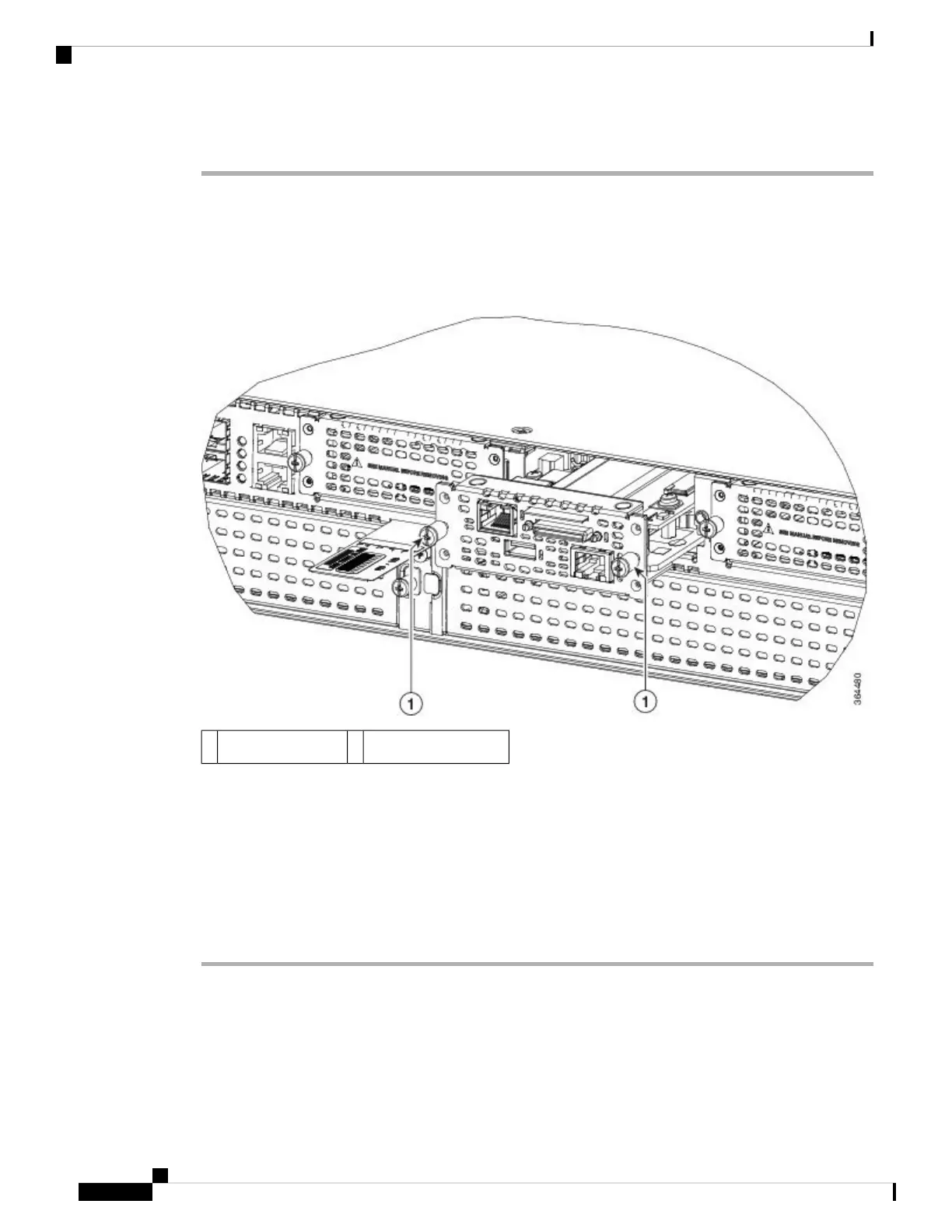

Figure 29: Installing the NIM E-Series NCE in a Cisco ISR 4000 Series
Cisco ISR 4000 series2NIM E-Series NCE1
Do not touch the NIM E-Series NCE board. Handle the NIM E-Series NCE by the edges of the
faceplate to reduce the risk of damage to the card.
Caution
Step 4 Using the faceplate, push the NIM E-Series NCE into place until you feel the NIM seat securely into the
connector on the router backplane. The NIM faceplate should contact the chassis rear panel.
Do not connect cables to NIM E-Series NCE until you have installed it.
Caution
Step 5 Using a number-1 Phillips or flat-blade screwdriver, tighten the captive mounting screws on the NIM faceplate.
What to do next
What to Do Next
Cisco UCS E-Series Servers and the Cisco UCS E-Series Network Compute Engine Hardware Installation Guide
58
Installing the NIM E-Series NCE into the Router
