Ciscomotors SNAP 100 User Manual

Pag.13
6. DISASSEMBLY/ASSEMBLY
WARNING
Modification of the motor, or removall of original equipment may make the motor unsafe.
6.1 DISASSEMBLY CARBURETTOR
This section covers maintenance of the carburettor.
• Repalce diaphragm fuel pump

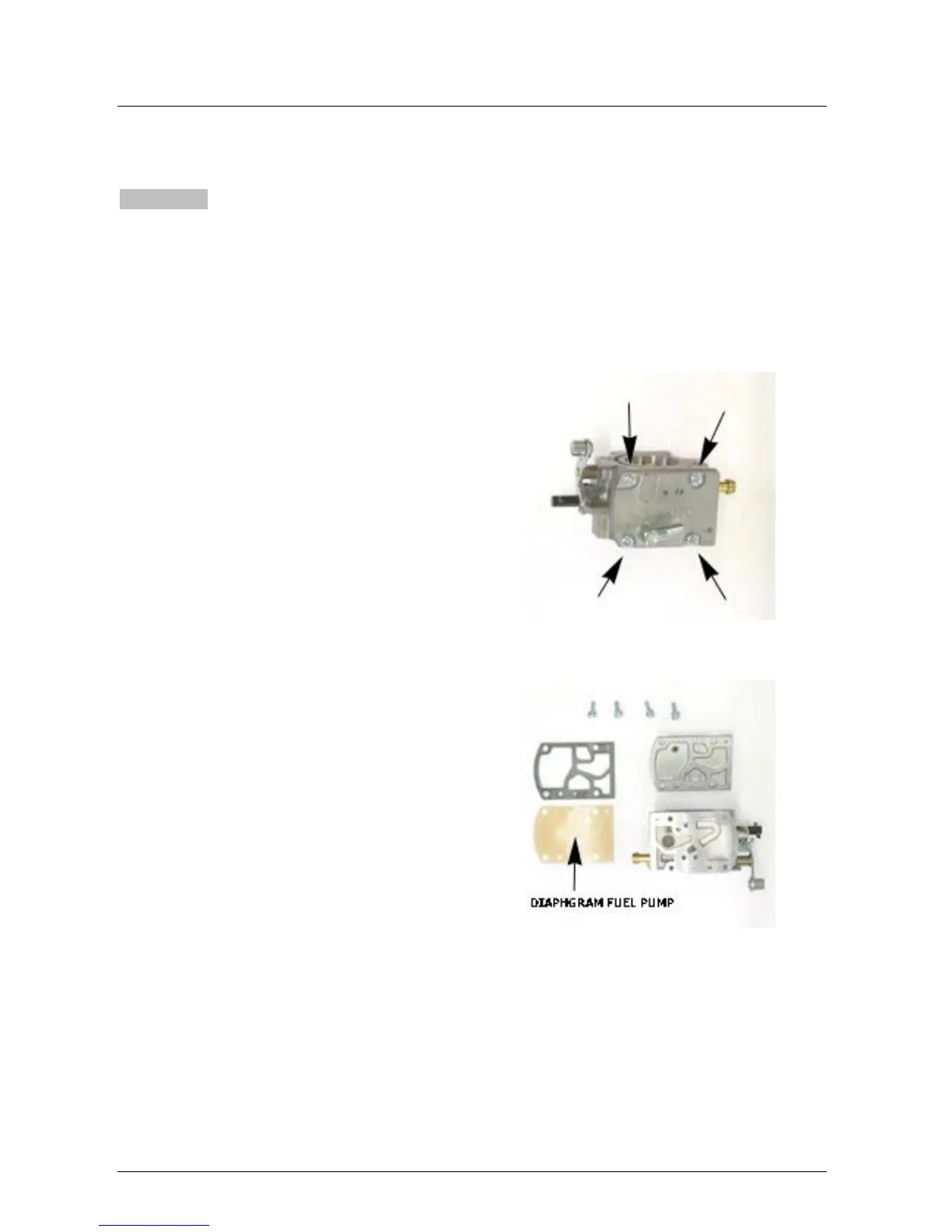

Fig.4
1. Remove the 4 screw (Fig.4)
2. Remove the diaphragm
3. Clean the filter
4. To replace the diaphragm with a new
one. (Fig.5)
5. Install the cover and tighten the screw
to specified torque
TORQUE: 4Nm (0.4 Kgf/m)
Fig.5
