6.2 DISASSEMBLY TERMICAL GROUP
This section covers maintenance of the cylinder and piston.These service can be done with the
engine installed in the frame.
The cylinder has a nicasil coating and cannot be rebored. If it is demaged, it must be replaced.
Before disassembling, clean the engine througly to keep dirt from entering the engine.Remove any
gasket material from the mating surfaces.
Do not use a screwdriver to remove the cylinder head.
Clean all parts before inspecting.
Before assembling, apply clean 2 stroke engine oil to all sliding surfaces.

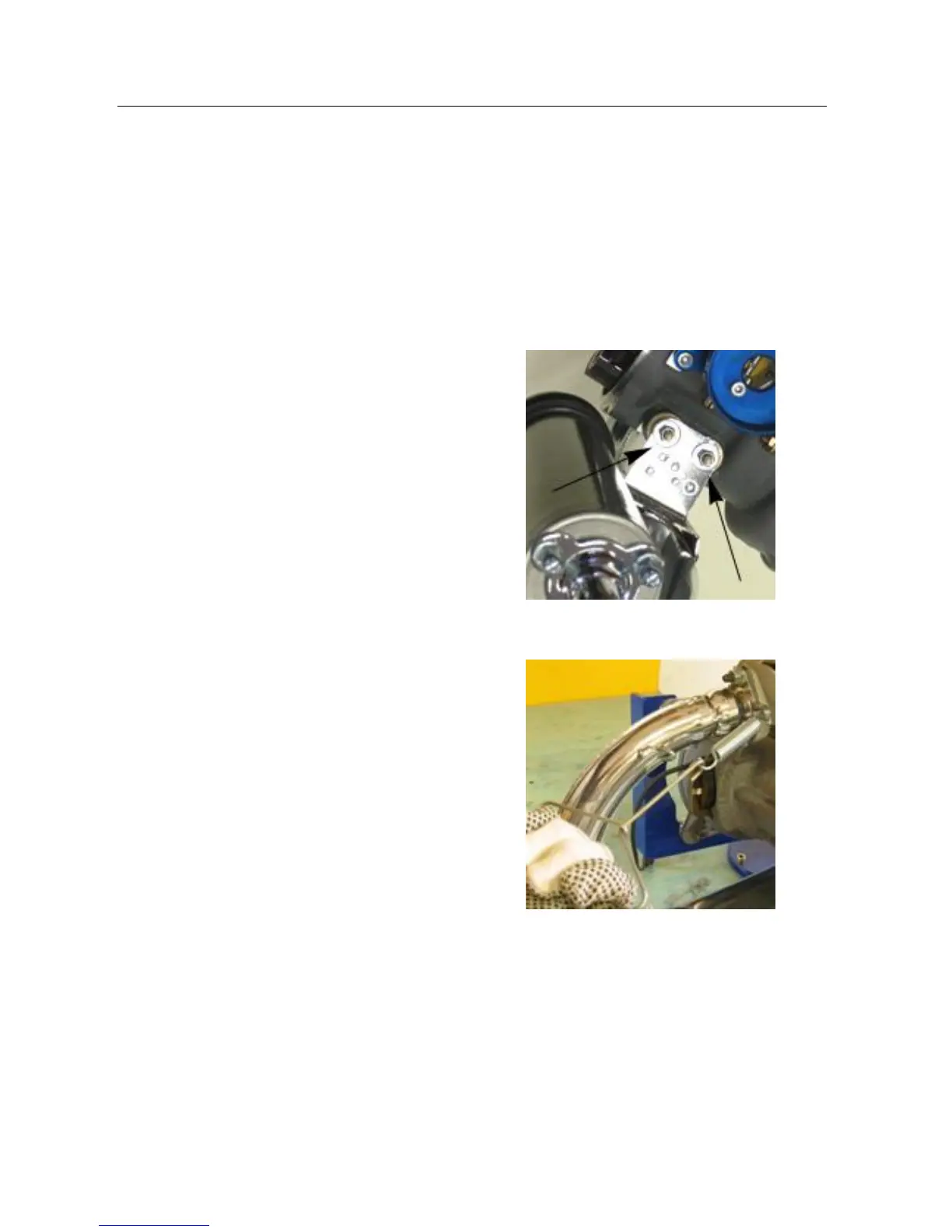

Fig.6
1. Disassembly the motor from the chassis
2. Disconnect the spark plug cap
3. Remove the spark plug
4. Remove 3 caps screw and the cooling air
duct
5. Remove 2 nuts exhausts fixing (fig.6)
6. Remove 2 springs (Fig.7)
Fig.7
