Ciscomotors SNAP 100 - Page 15

Pag.15

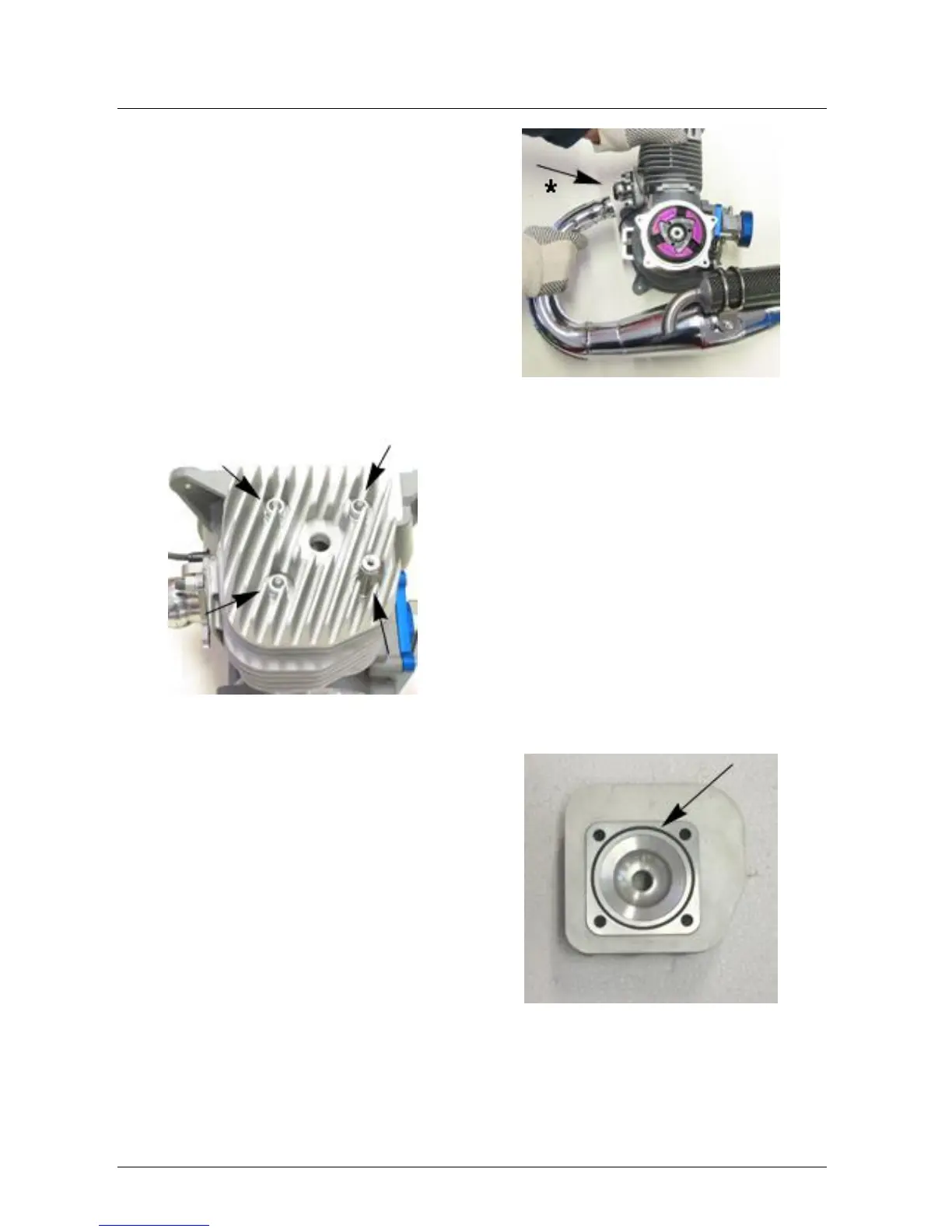

7. Pull the exhaust with resolution (Fig.8)
* Apply silicon gasket higt temperature.
Fig.8
Fig.9
8. Remove the 4 cylinder head nuts (Fig.9)
9. Remove the cylinder head o-ring gasket
(Fig10)
Fig.10
NOTE
To avoid warping the cylinder head, use a criss-cross pattern to loosen each nut about ¼ turn, then
remove the nuts.
