6.6 ASSEMBLY/ DISASSEMBLY THE PROP HUB

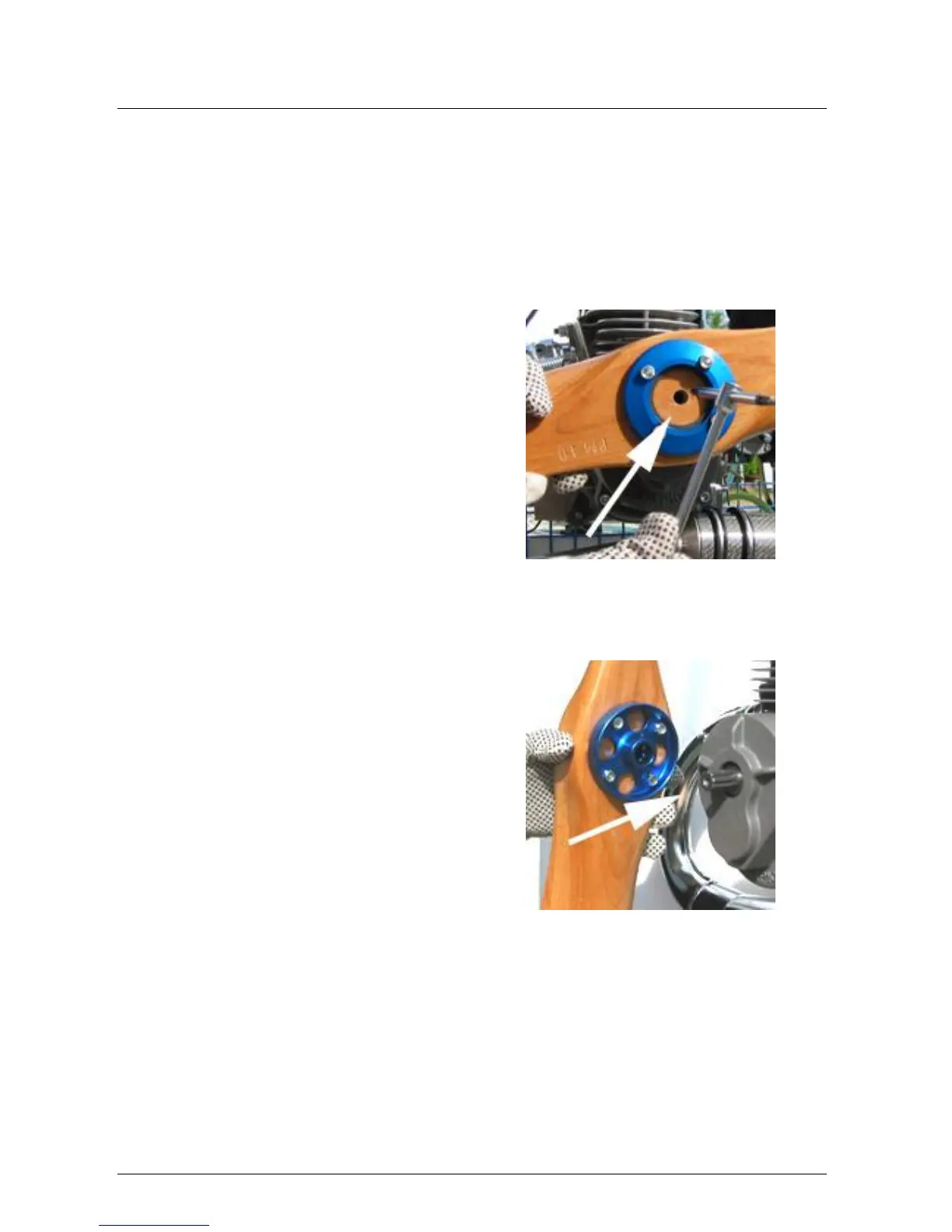

1. Unscrew the cap screw (fig.26)
2. Unthread the hub from the reducer (Fig.27)
1. Replace the hub on rapid graft DIN 5482
15x12 Z9 (Fig.27)
2. Tighten the cap screw with the washer in the
equipment at the specified torque.
TORQUE : 12Nm( 1,2 kgf/m)
Fig.26
Fig.27
