Pag.25
IGNITION COIL ASSEMBLY

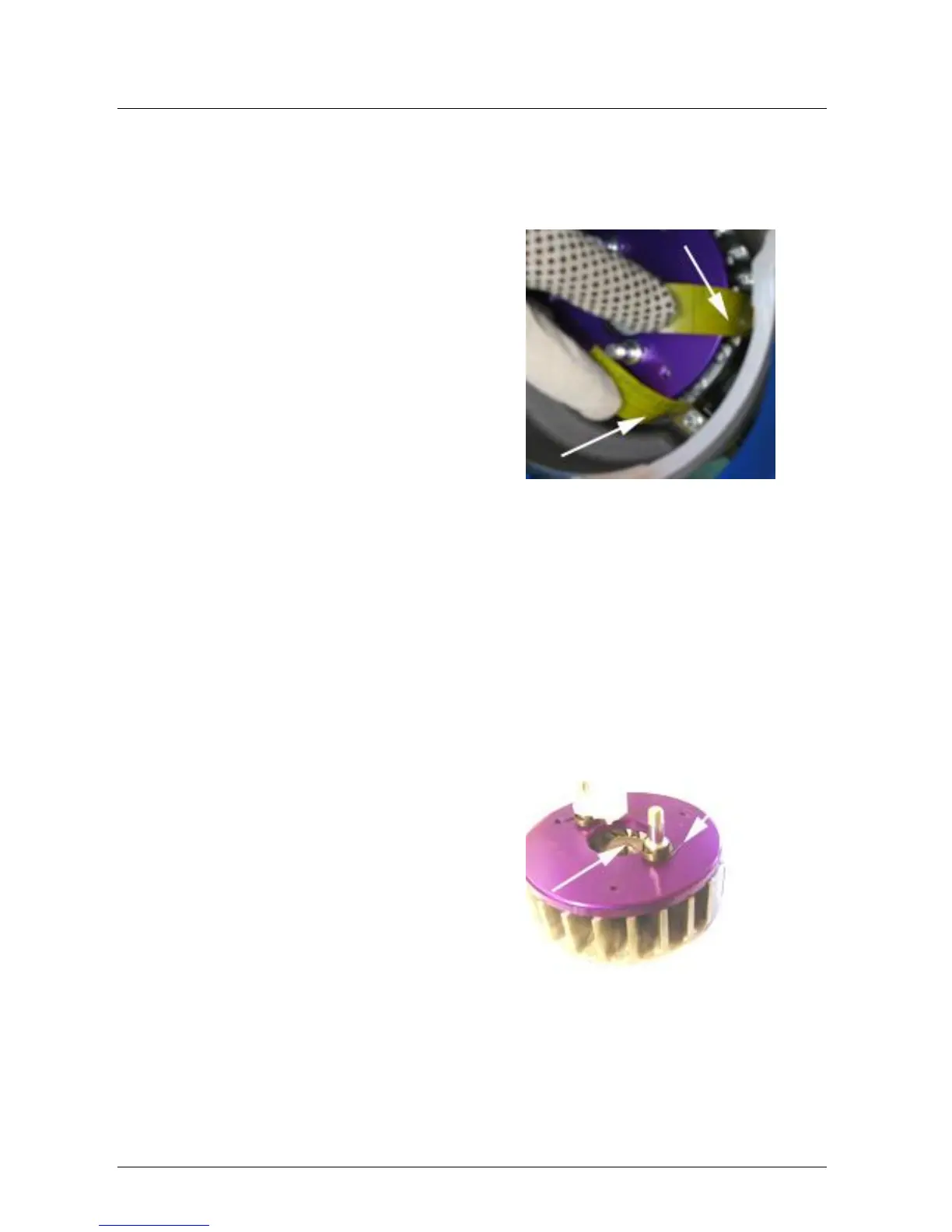

1. Insert the coil into seat
2. Screw the 2 cap screw
3. Insert between the ignition magneto and the
iron coil, some that distances them in plastic
material like 0,25/0,3 mm (Fig. 30 )
4. Tighten the cap screws at the specified torque
TORQUE : 12Nm( 1,2 kgf/m)
5. Assembly the ignition fan tightening the 3 cap
screws with locking agent at the specified torque
TORQUE : 12Nm( 1,2 kgf/m)
ATTENTION : REPLACE THE GRAFT
STARTER TIGHTENING THE SPRINGS
LIKE Fig.31
Fig.30
6. Assembly the ignition crankcase cap see
capter 6.3
ATTENTION: In case of taking off the nuts
graft to replace them with hexagonal stop nut
news.
Fig31
