6.7 DISASSEMBLY / DISASSEMBLY THE INGNITION
DISASSEMBLY

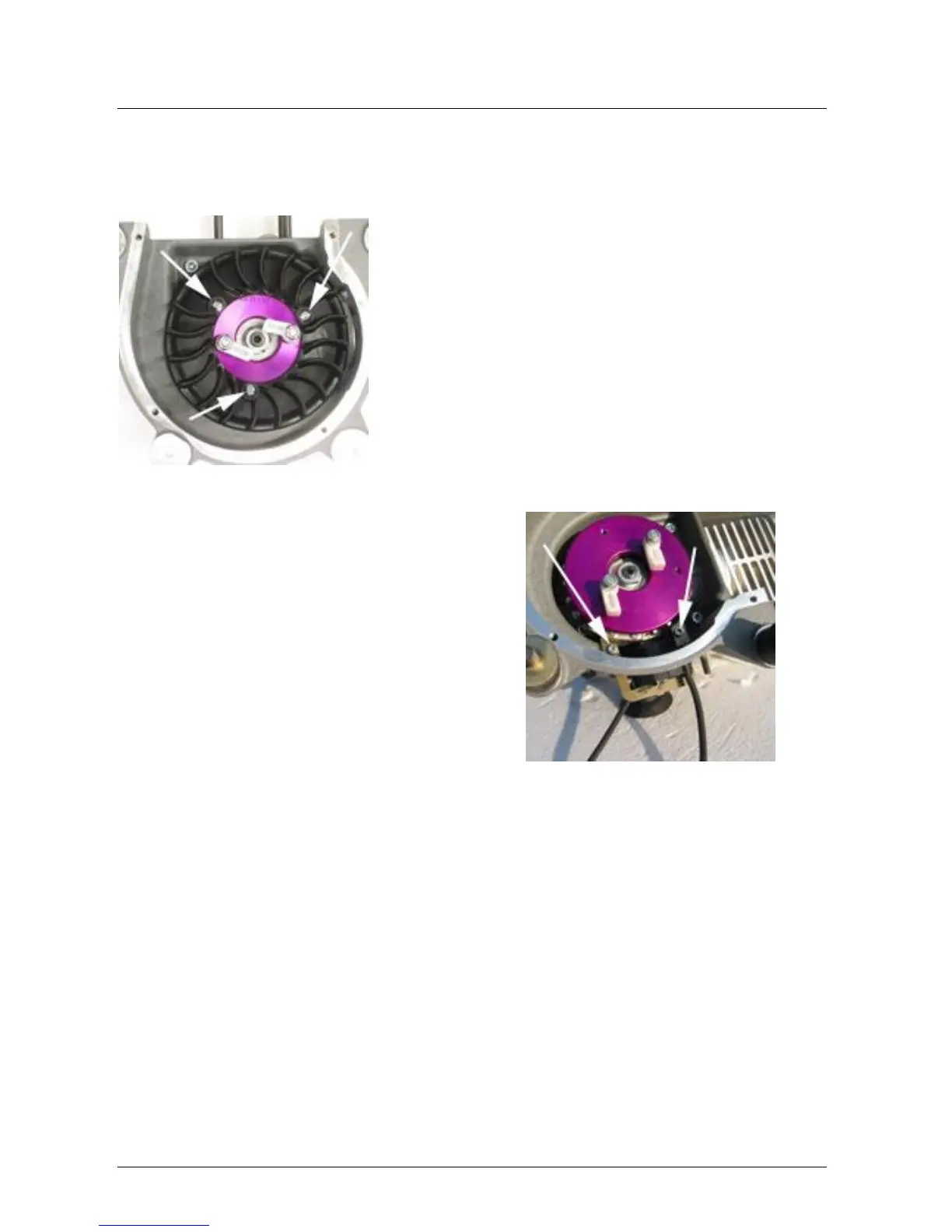

Fig.28
1. Disassembly the engine from the chassis
2. Remove the 4 cap screw on the ignition
crankcase( Fig.18)
3. Remove the 3 cap screw of the ignition fan
( Fig.28)
4.Remove the 2 cap screw of the coil (Fig.29)
Fig.29
