Pag18

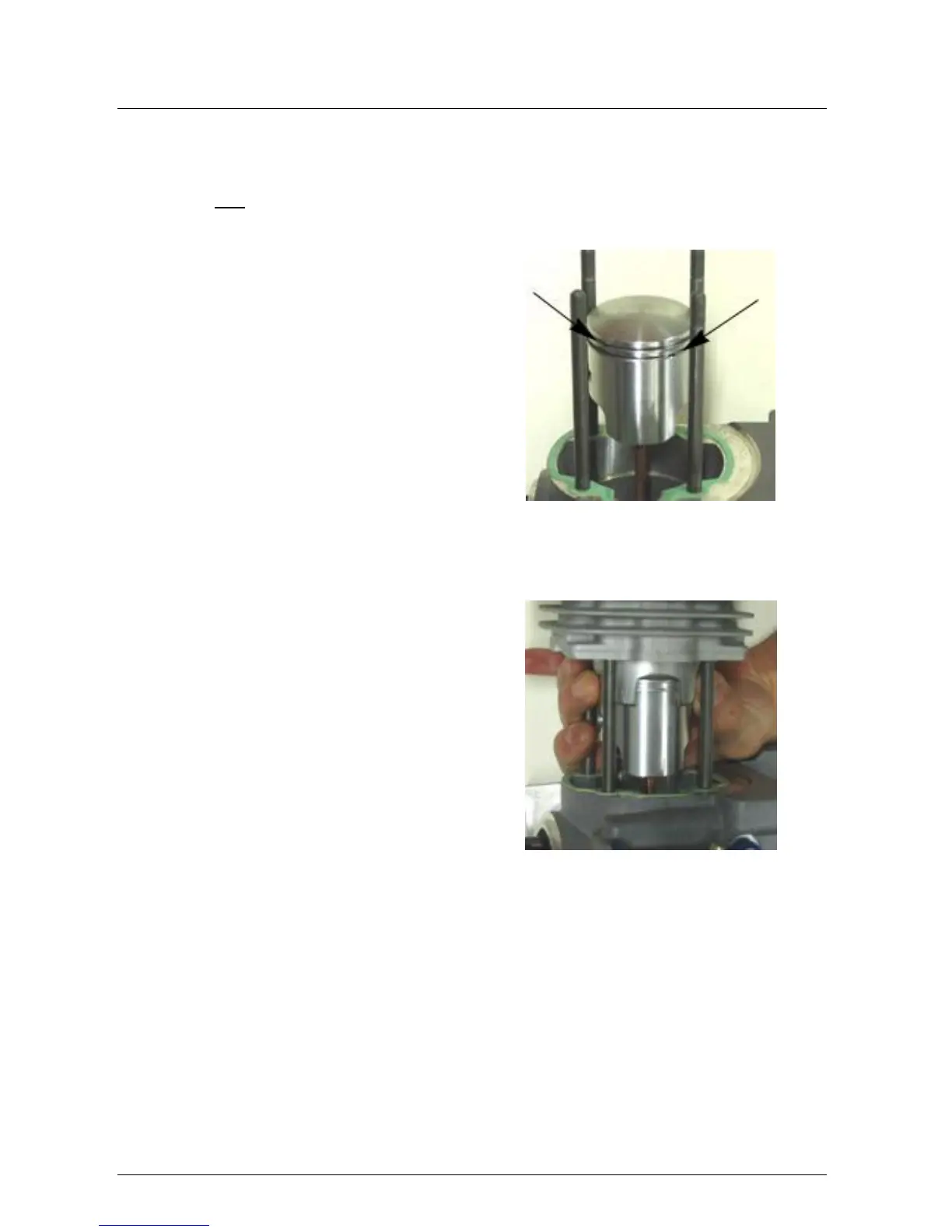

INSTALLATION CYLINDER
6. Install the new cylinder gasket
7. Align each ring and gap with the piston ring
pins in the ring groves (Fig.16)
Fig. 16
8. Lubricate the piston with 2-stroke oil
9. Slip the cylinder over the top of the piston
while compressing the rings. (Fig.17)
Fig. 17
10. Then, install the cylinder on to the crankcase
