Citizen CL-E730 User Manual

56
Chapter 3 Printer Adjustments
Sensor Adjustments

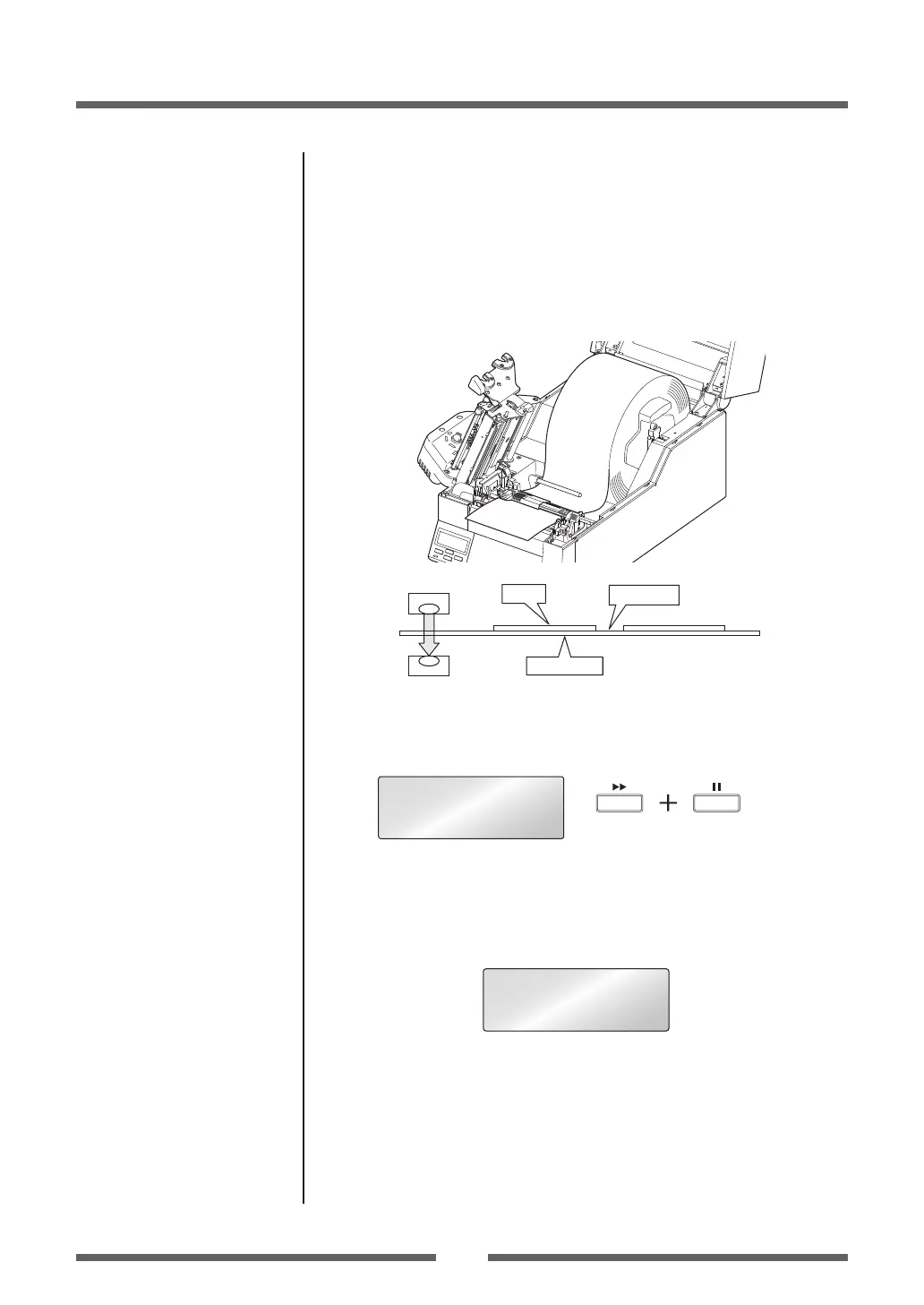

Adjusting the Transparent sensor
1. The transparent sensor is selected.
2. Install only the liner media (label backing paper) with the
label media removed so that it will pass between the platen
roller and the media sensor. (Be careful that media with
black marks does not pass the media sensor.)
Label
Liner media
Media gap
Bottom sensor
Upper sensor
3. If the Pause key is pressed then released while the Feed key
is continually pressed, the sensor is automatically adjusted.
Sensor Cal Mode
Executing
Hold Press/Release
4. When automatic adjustment stops normally, “Succeeded” is
displayed by the LCD. If it stops abnormally (adjustment is
impossible), the LED lights up red and “Failed” is displayed on the
LCD.
Sensor Cal Mode
Succeeded
5. If the Stop key is pressed, the printer completes sensor
adjustment and the printer restarts.
Installing the Media (p.26)
Sensor Selection Method
(Transparent

Reective)
(p.55)

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
