Citizen CL-E730 User Manual

57
Chapter 3 Printer Adjustments

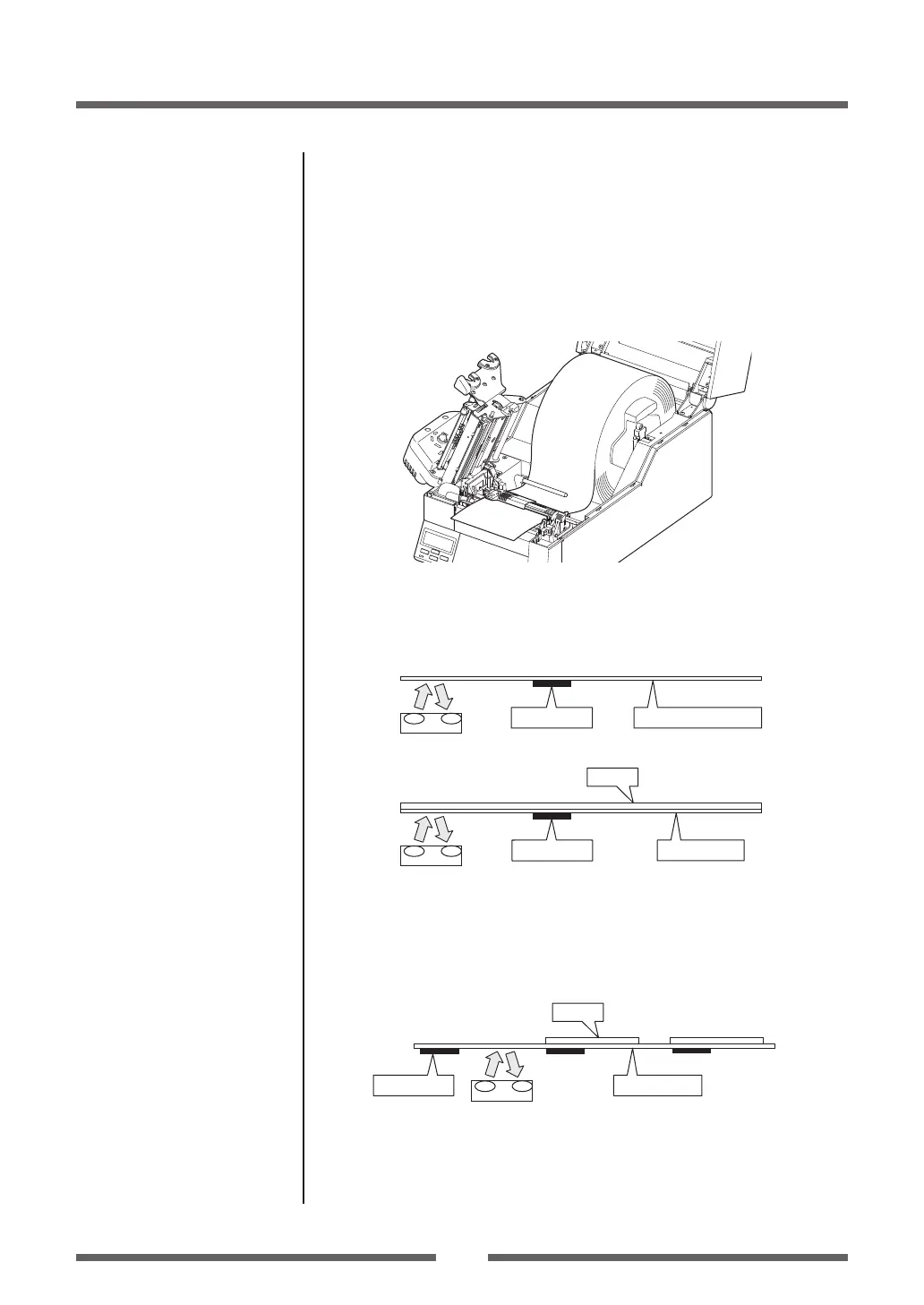

Adjusting the Reective sensor
1. The reective sensor is selected.
2. With the reective sensor selected, install the label media
so that it is between the platen roller and the media sensor.
Be careful that black mark and media gap do not pass the
media sensor.

When using continuous media or label media with no gaps
Mount in such a way that the part without a black mark (in the case
of label media, this means the label paper portion) faces the platen
roller and the media sensor.
Black mark
Label
Liner media
Bottom sensor
Black mark
Continuous media
Bottom sensor

When using label media with gaps
Only mount label media with peeled-o liner (glassine paper) so that
it faces the platen roller and media sensor. Avoid contact with black
mark.
Label
Liner media
Black mark
Bottom sensor
Installing the Media (p.26)
Sensor Selection Method
(Transparent

Reective)
(p.55)
Sensor Adjustments

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
