Citizen CL-S6621 Technical Manual

Troubleshooting
4-13 CL-S6621
J106
J103
J105
J101
J107
J104
J102
To SA Ribbon Motor F
(for thermistor)
To SA, Main PCB
To SA Ribbon Motor F
To SA, Ribbon Sensor
(on the front side)
To SA, Ribbon Sensor
(on the rear side)
To SA Ribbon Motor R
To SA, Fan
SA, Ribbon PCB
J12
(J10)
(J13)
J5
J3
J7
J6
J4
J19
J15
J17
J201
J202
(J14)
J16
J18
USB2.0
RS232C
J8
J9
J11
SA, Main PCB
To SA PF Motor
(for thermistor)
To Unit, Power Supply
To SA, Opepane PCB
To SA, Head
(for signals)
To SA TRA Sen PCB
To SA Ref Sen PCB
To SA, Head Up Switch
To SA, Ribbon PCB
To optional I/F PCB (Option)
To SA, Head
(for power)
To SA PF Motor
To SA PNE Sensor
SA, Relay PCB

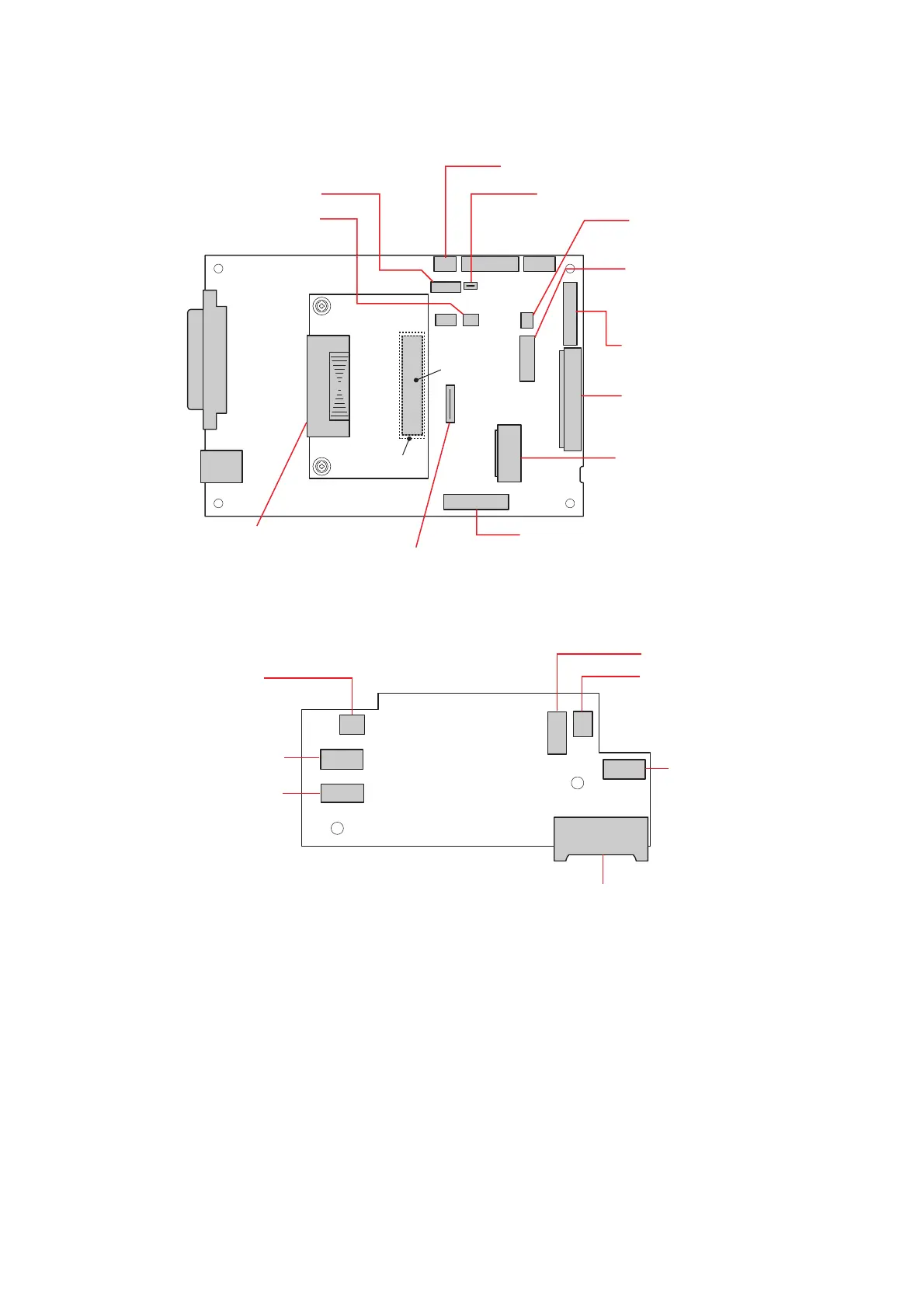

4-2-7. Connector Location
[SA, Main PCB]
[SA, Ribbon PCB]
